ELECTRICAL CONNECTION SCHEME
WARNING: The electrical connection of the appli-
ance must be done by an authorized and certied
personnel. Manufacturer shall not be held responsi-
ble for damages that may arise due to the operations
performed by unauthorised persons.
WARNING: Have an authorised electrician set
grounding equipment. Manufacturing company will
not be responsible for the damages that may occur
due to using the appliance without grounding ac-
cording to local regulations.
RISK OF ELECTROCUTION: Before conducting
any operation on the electrical wiring, remove the
electrical connection of the appliance.

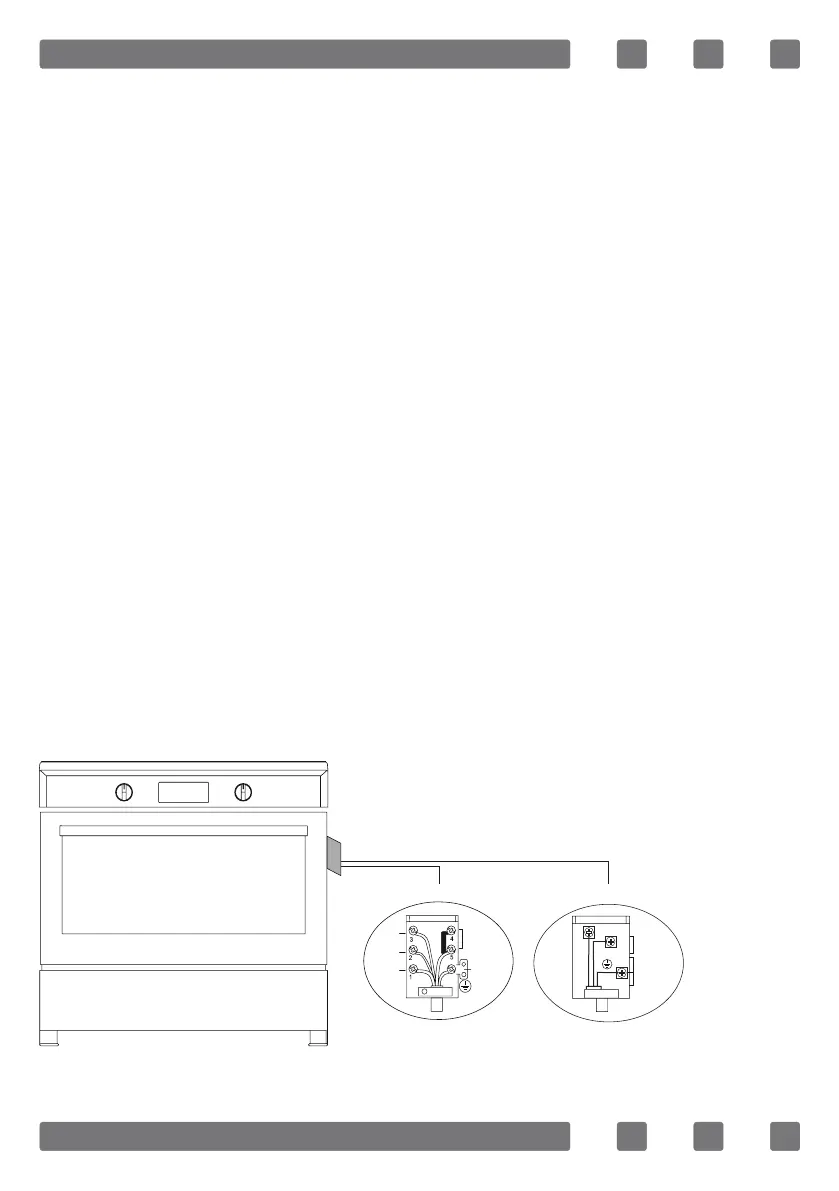

Make the electrical connection of the appliance ac-
cording to the appropriate wiring diagram.
380-415V 3N~50/60Hz
H05 VV-F 5G 1.5 mm²
Neutral
Earth
L3
L2
L1
220-240V~50/60Hz
H05 VV-F 3G 4 mm²
L N
Neutral
Earth
