Installation Instructions 15

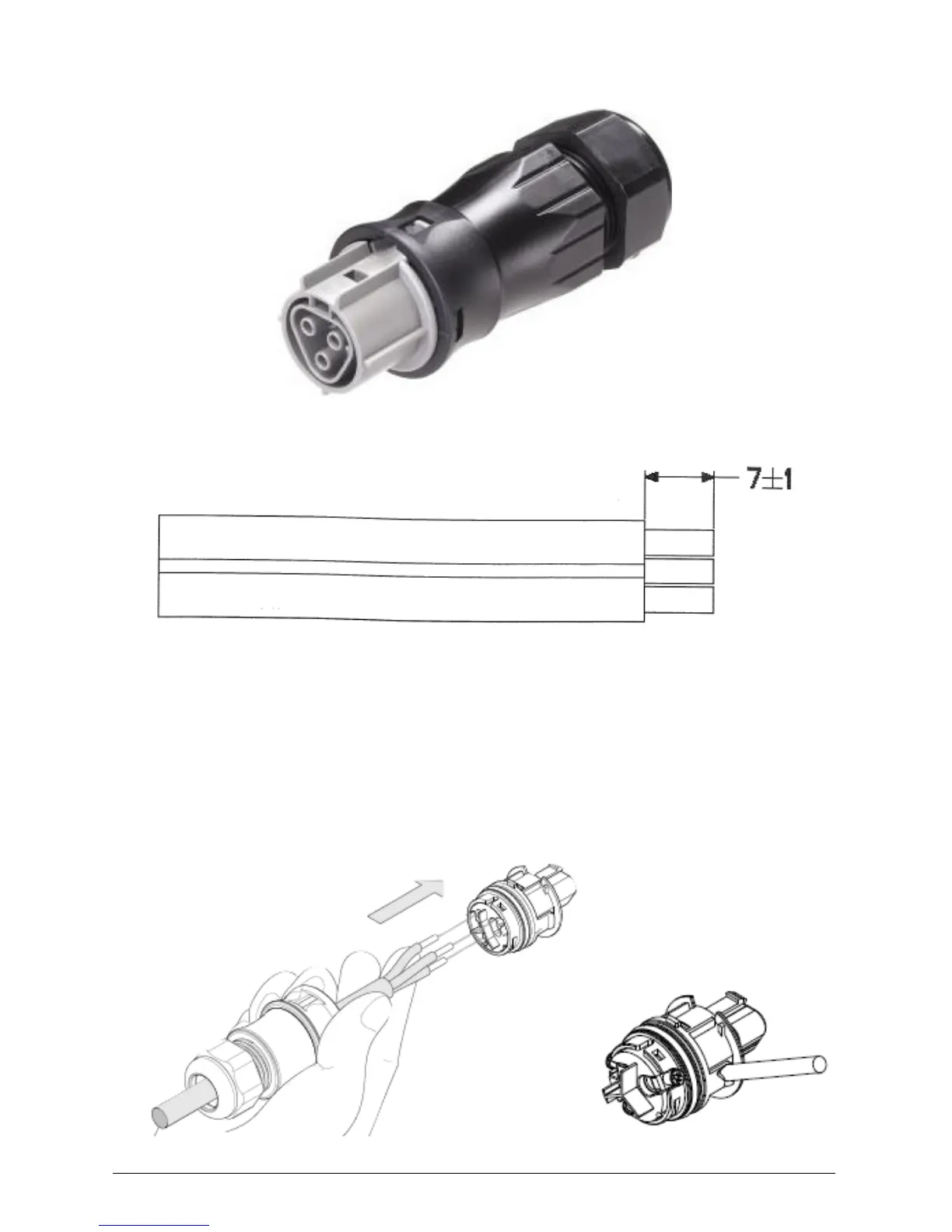

Connection Procedure by the connector 1:
1. Switch off the breaker and secure against being inadvertently switched back on.
2. Prepare the cable and bare the ends of each wire as shown in the figure (in mm).
3. Screw off every component of AC connector and pull the cable (three wires
including L, N and PE) through those components as shown in the figure below.
Insert the bared wires ends including L, N and PE into the corresponding three
holes of the connector terminal and then fully tighten all screws. The polarity of
each hole is signed around the holes. Please note that wire L must be connected
to hole L, wire N to hole N and wire PE to hole PE.
Connect the wires:
