Installation Instructions 19

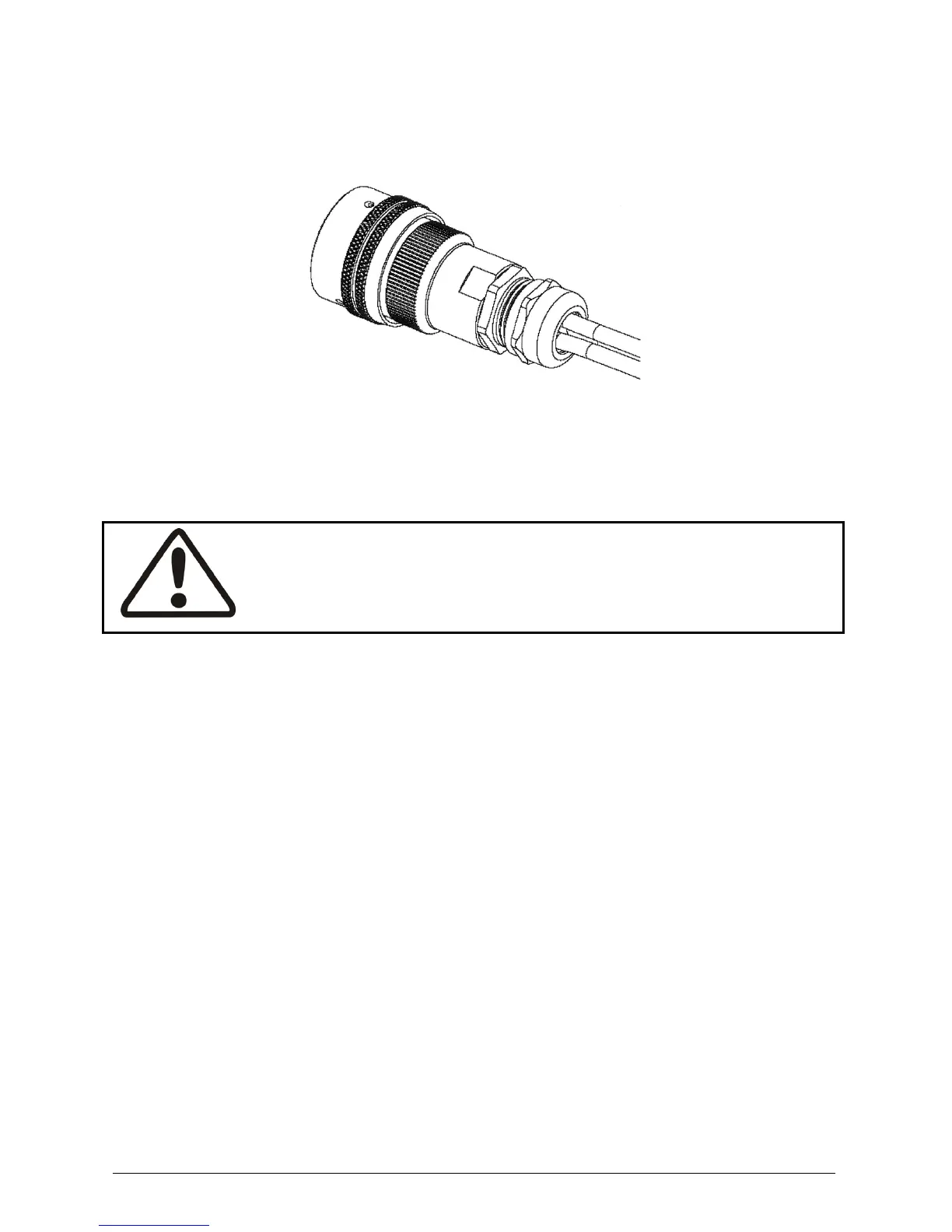

6. Aim the terminals on the straight plug to the holes of the grommet, and then
compress them together. After that tighten the adapter assy, gland body and
screw cap in turn with a wrench.
7. Finally, connect the straight plug to the AC terminal on inverter. Pay attention to
the polarity of the terminals avoid wrong connecting. Terminal A is
corresponding to hole A, B to B and C to C.
Attention!
Do not switch on the AC breaker until the PV generator has been
connected and all of the devices have been fixed.
