Installation Instructions 21
Attention!
1. The voltage of the solar generator must be measured before
connecting the DC cables to the inverter terminals. The DC
voltage must not exceed the maximum input voltage. Connecting
to a higher voltage will destroy the unit.
2. The total short-circuit current of the PV module should be less than the inverter’s
maximum DC current.
3. Before connecting PV modules to DC terminals, please make sure the polarity of
the strings is correct.
4. The DC connection of Eversol TL4600 and TL5400 are two strings. If you only
make use of one string, please seal up the other string connectors by seal caps.
5. Please use professional tools to disassemble the connectors.
Type Maximum input voltage Maximum input current
Eversol-TL2100 580 V 18 A
Eversol-TL3200 580 V 20 A
Eversol-TL4600 680 V 20 A
Eversol-TL5400 680 V 25 A

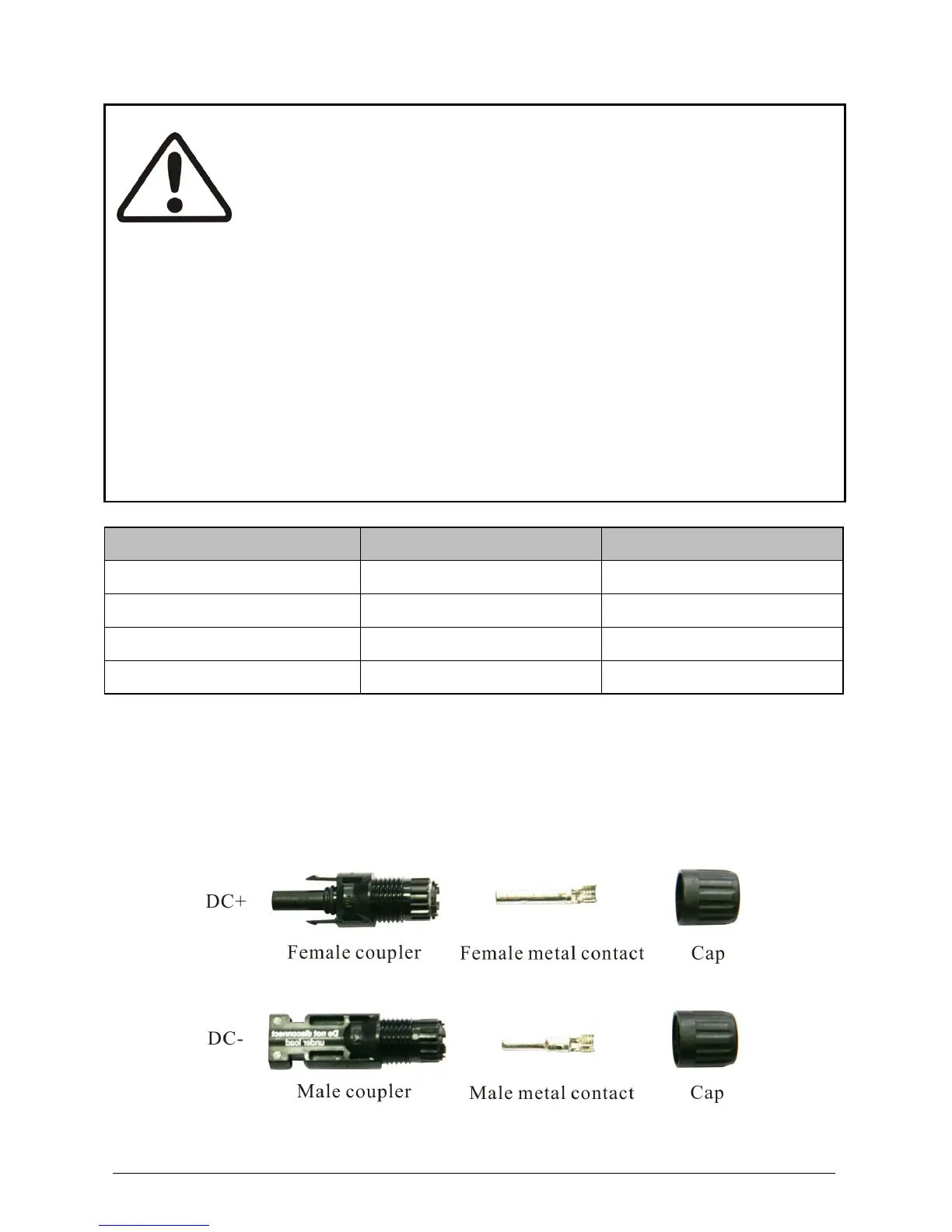

Connect the PV generator and inverter using MC IV connectors below. Connect the
positive and negative terminals from the PV module to positive (+) terminals and
negative (-) terminals on the inverter.
