EVGA CLCx 360 - Pump and Cooler Assembly; Retention Ring Installation; Pump Installation onto CPU

Retention Ring

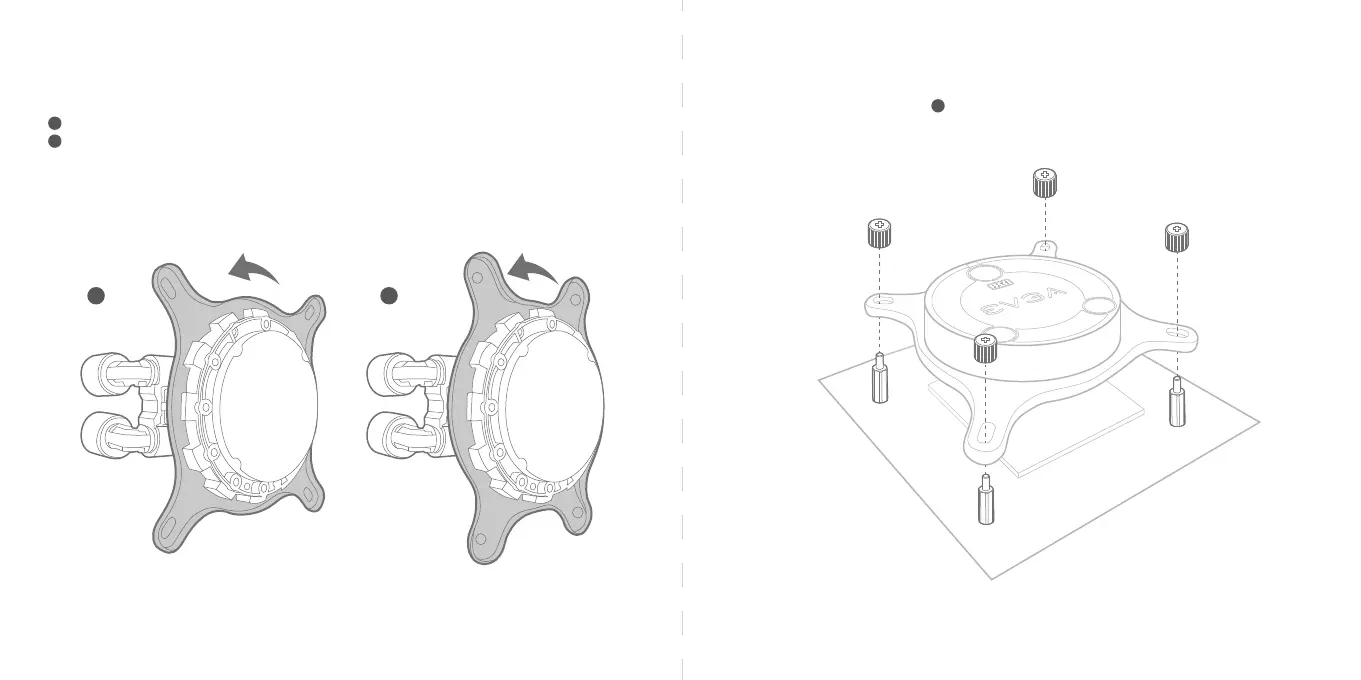

Make sure the correct retention ring is installed on the pump / cooler. Both Intel and AMD retention rings are
included with your CLCx, with the Intel ring preinstalled.
To change the retention ring, push down on ring and turn counter-clockwise to remove the ring from the pump.
Intel Retention Bracket LGA 17XX / 12XX / 115X (Pre-installed)
AMD Retention Bracket AM5 / AM4
F
G
Pump Installation
Thermal paste is pre-applied to the contact surface of the pump. Install the pump by aligning the mounting
holes on the retention ring with the standos and lower the pump evenly over the CPU. Secure the
retention ring using screw nuts part .
