- 5 -

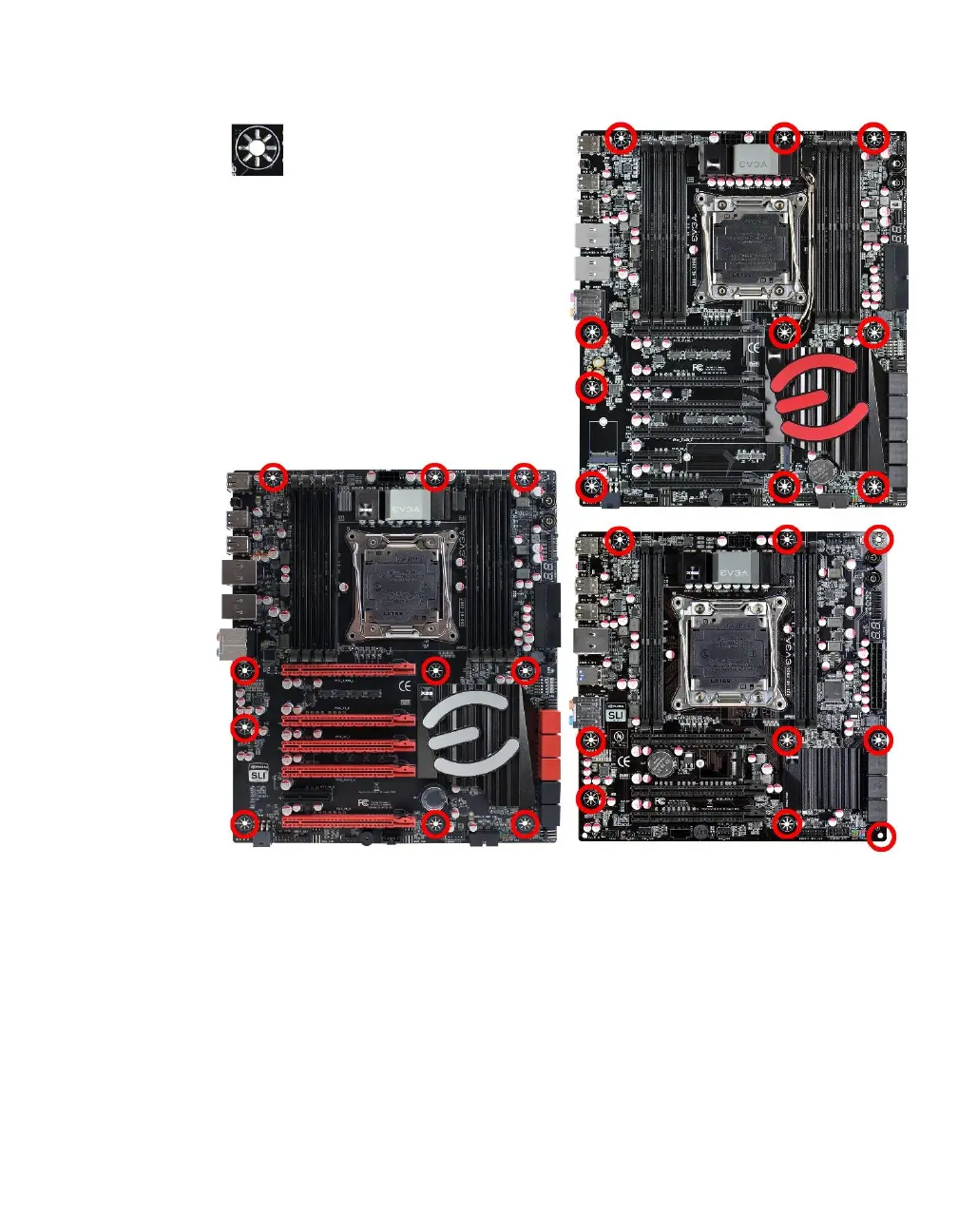

Above, all locations safe to secure the board to a standoff with are
circled in red, and the upper left side of that picture is a zoomed in
view of the hole.
Keep in mind that when the screws are installed but not fully tightened,
the motherboard should have 1-2mm of movement; this can help with
getting cards mounted or other tight tolerance/close fitting cards.
