EVGA X99 User Manual

- 8 -
Connecting Internal Headers

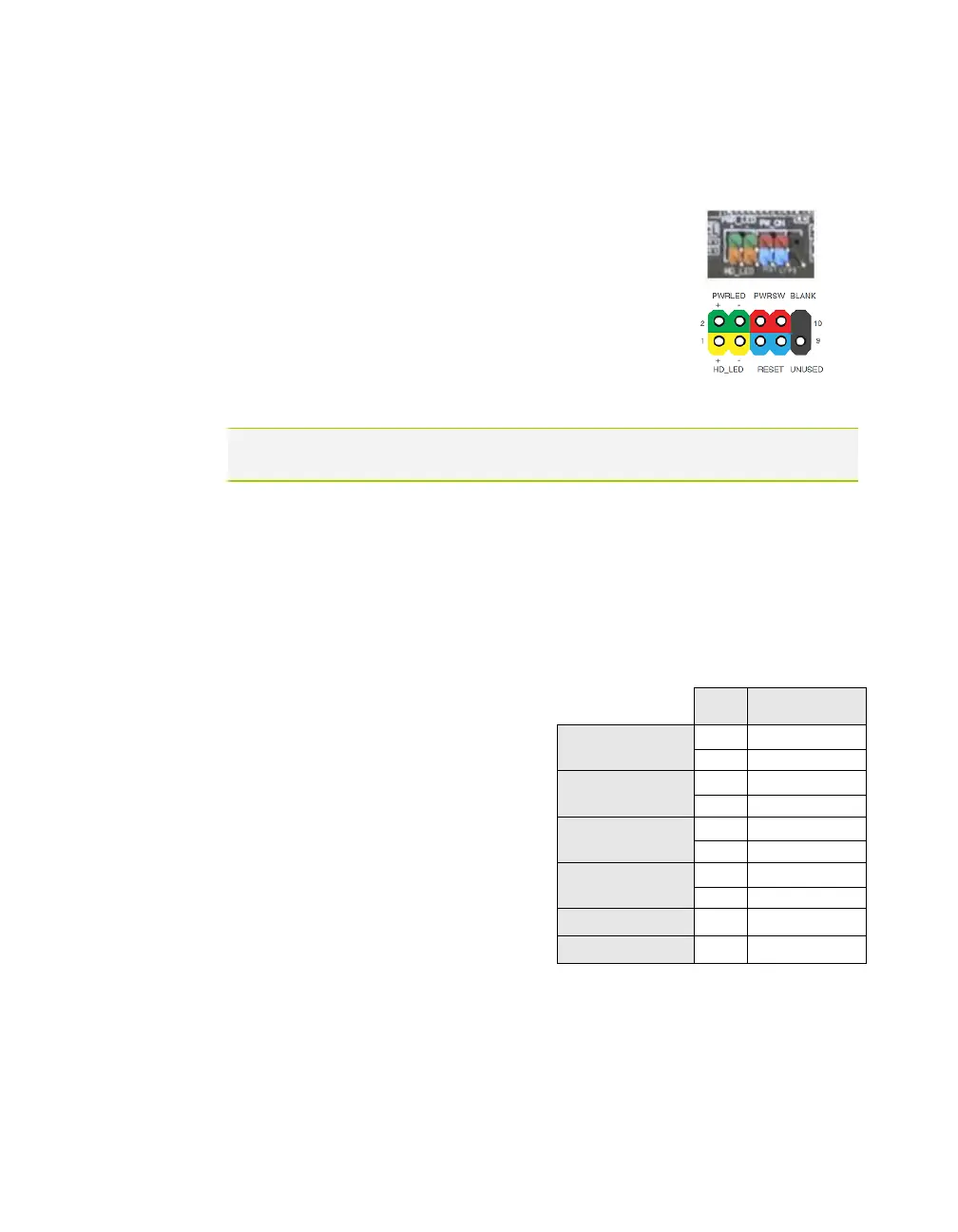

Front Panel Header
The front panel header on this motherboard is used to
connect the following four cables.
 PWRLED
Attach the front panel power LED
cable to these two pins of the connector. The Power
LED indicates the system’s status. When the system is
powered on, the LED will be on.
Note: Some system cases may not have all four cables. Be sure to match the
name on the connectors to the corresponding pins.
 PWRSW
Attach the power button cable
from the case to these two pins.
Pressing the power button on the
front panel turns the system on and
off rather than using the onboard
button.
 HD_LED
Attach the hard disk drive indicator
LED cable to these two pins. The
HDD indicator LED indicates the
activity status of the hard disks.
 RESET
Attach the Reset switch cable from
the front panel of the case to these
two pins.
Pin
Signal
HD_LED
1
HD_PWR
3
HD Active
PWRLED
2
PWR LED
4
STBY LED
RESET
5
Ground
7
RST BTN
PWRSW
6
PWR BTN
8
Ground
No Connect
9
+5V
Empty
10
Empty

EVGA X99 Specifications

General

Chipset	Intel X99
Form Factor	ATX
Memory Type	DDR4
Memory Slots	8
Maximum Memory Supported	128GB
PCIe Slots	5
PCI Express x8 Slots	0
SATA Ports	10
SATA 6Gb/s Ports	10
M.2 Slot	1
CPU Socket	LGA 2011-3
Memory Speed	3000+(OC) MHz
RAID Support	RAID 0, RAID 1, RAID 5, RAID 10
