- 6 -
Connecting Cables
This section takes you through all the necessary connections on the
motherboard. This will include:
Power Connections
24pin ATX power (PW1)
EPS 8pin 12V power
Internal Headers
Front Panel connectors (power/reset/LED’s)
Fan Headers (PWM for CPU and DC for case fans )
USB 2.0 Header
USB 3.0 Header
Audio Header
SATA III
Rear I/O Panel
24pin ATX Power (ATX_PWR_24P)
ATX_PWR_24p is the main power supply connector located along the lower
right edge of the board. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the power
supply cable into the connector and make sure it is secure.
The 24pin Power Connector may be standard or right angled depending on
your motherboard model.

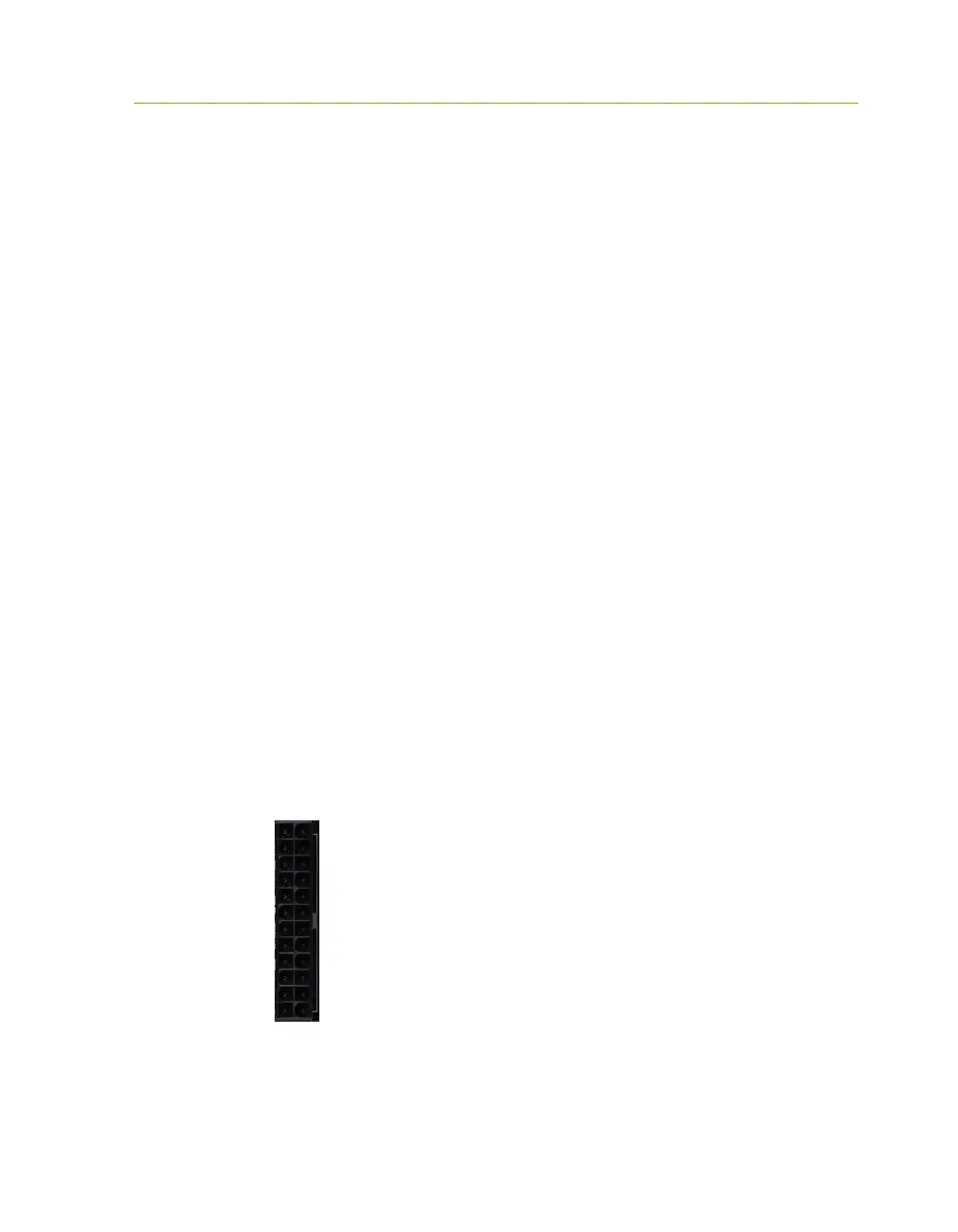

24pin Power Connector

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the EVGA X99 and is the answer not in the manual?

EVGA X99 Specifications

General IconGeneral
ChipsetIntel X99
Form FactorATX
Memory TypeDDR4
Memory Slots8
Maximum Memory Supported128GB
PCIe Slots5
PCI Express x8 Slots0
SATA Ports10
SATA 6Gb/s Ports10
M.2 Slot1
CPU SocketLGA 2011-3
Memory Speed3000+(OC) MHz
RAID SupportRAID 0, RAID 1, RAID 5, RAID 10
