EVGA Z370 MICRO User Manual

EVGA Z370 MICRO (121-KS-E375)
- 13 -

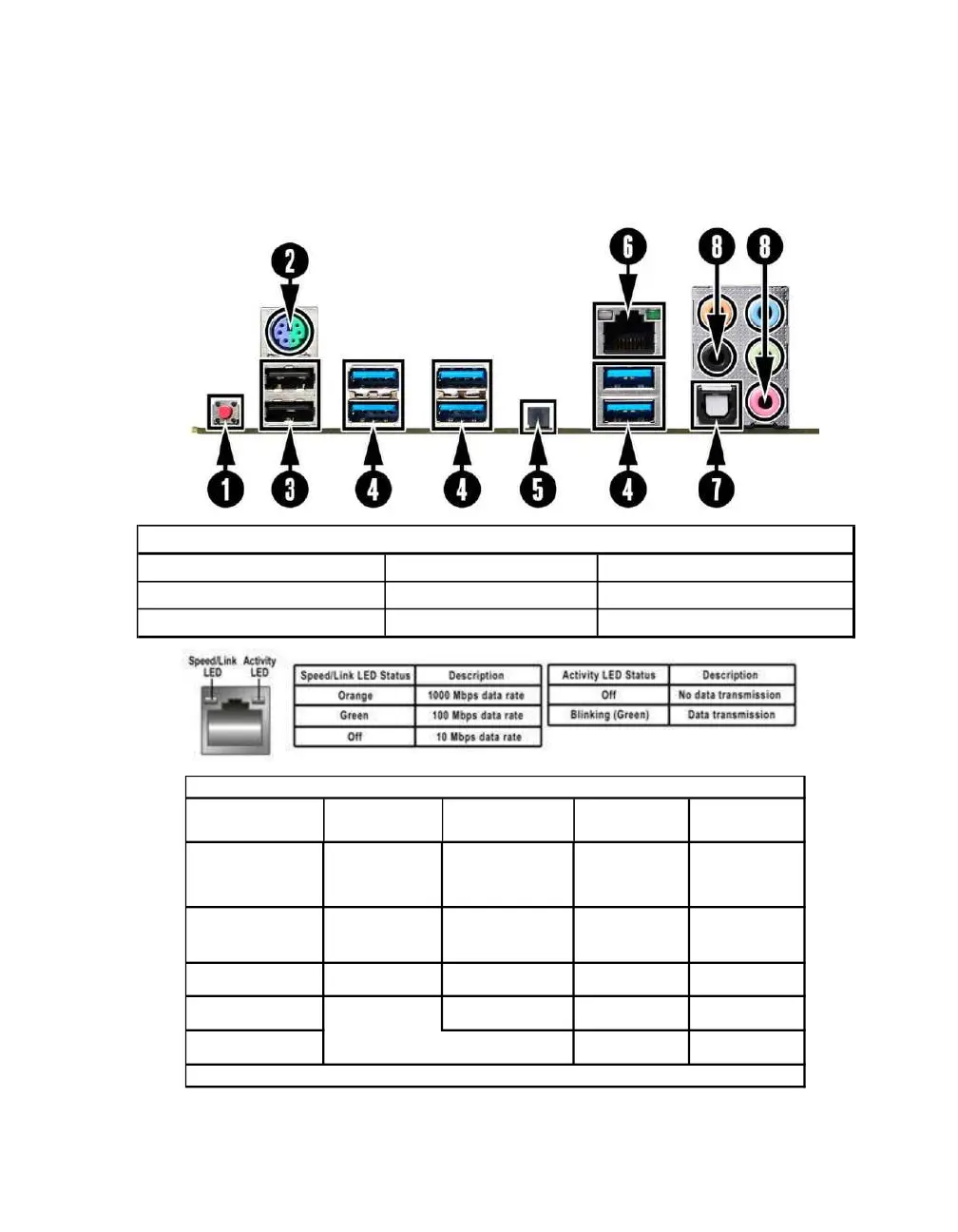

Figure 2. Chassis Rear Panel Connectors
1. BIOS / CMOS Reset 4. USB 3.0 7. Optical Out
2. PS/2 Keyboard Port 5. M.2 Socket 1 Key-E 32mm 8. Analog Audio Jacks
3. USB 2.0 6. Intel i219 NIC
I/O Hub Legend
Analog Audio Port
Breakdown
2/2.1
Channel
4.0/4.1
Channel
5.1
Channel
7.1
Channel
Blue Line In Line In Line In
* Rear Speakers Out
Front Speakers Out /
Front Speakers Out /
Front Speakers + Sub
Front Speakers + Sub
Pink Mic In Mic In Mic In
Mic In
Black Side Speakers Out Side Speakers Out Side Speakers Out
Orange Center / Sub Out Center / Sub Out
3.5mm Audio Jack Legend
Front Speakers Out
Green
Front Speakers Out
* Only used in 7.1 and is changed via Realtek Software from within Windows.
