EVGA Z370 MICRO (121-
KS
-E375)
-
28
-
1.

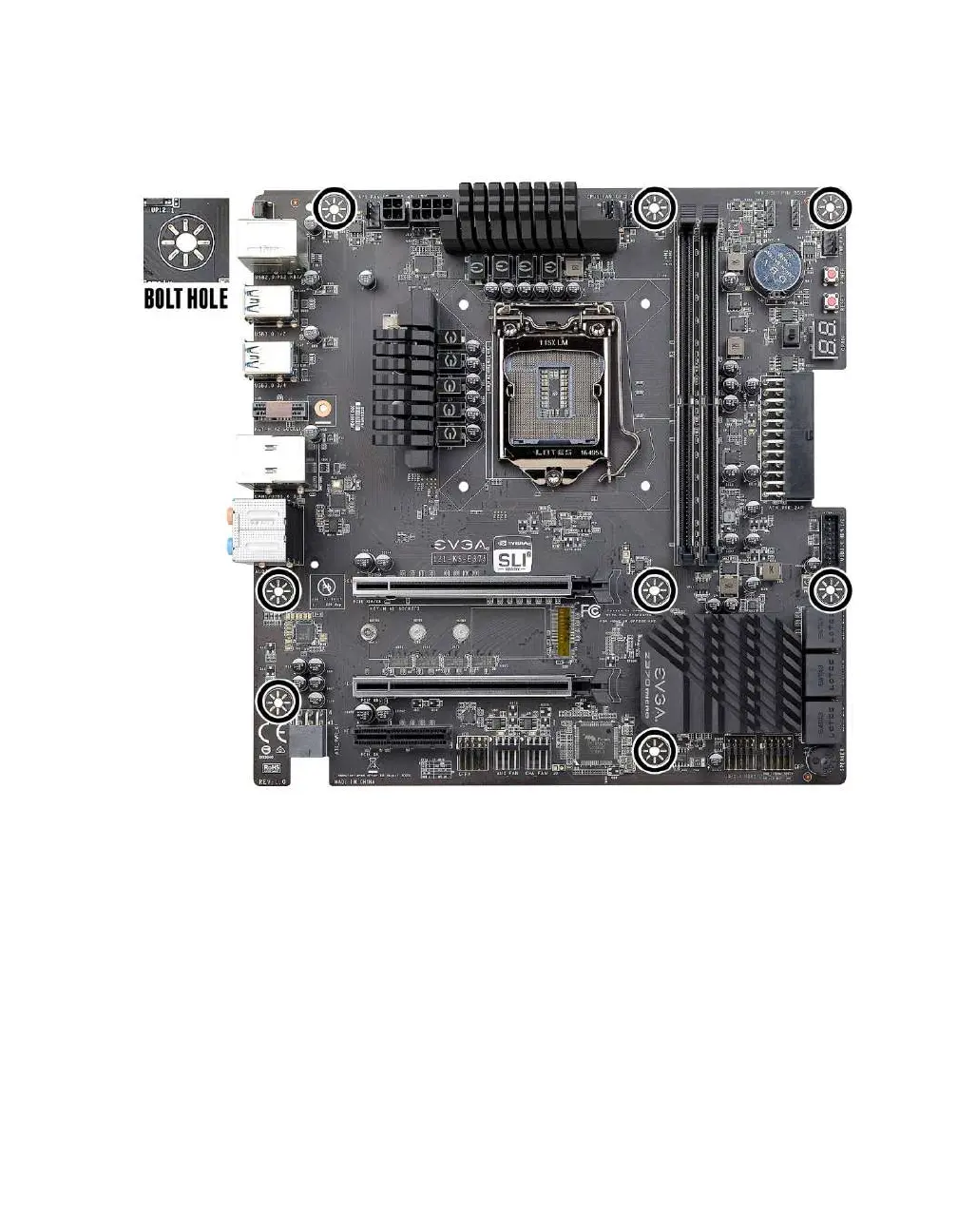

All safe loca
tions to secure t
he board to a standoff are circled in white.
2.
Keep in mind
that when the screws are installed, bu
t not fully
tightened, the mother
board should have 1-2mm of mov
ement; this can
help when mounting ca
rds or tight-fits with
other components.
3.
Once the boar
d is properly a
ligned, be sure to fully-tighte
n the board
to
the chassis before p
roceeding.
27
29
Table of Contents
Table of Contents
2
Evga Z370 Micro
4
Before You Begin
4
Parts NOT in the Kit
5
Intentions of the Kit
5
Motherboard
6
Motherboard Specifications
6
Unpacking and Parts Descriptions
8
Intel ® Z370 Micro Motherboard LED Reference
9
Intel ® Z370 Micro Motherboard Component Legend
11
Pcie Slot Breakdown
21
M.2 Slot Breakdown
21
Preparing the Motherboard
22
Installing the CPU
22
Installing the CPU Cooling Device
24
Installing System Memory (Dimms)
25
Installing the I/O Shield
26
Installing the Motherboard
26
Securing the Motherboard into a System Case
27
Installing M.2 Devices
29
Tested CPU
32
Tested Memory
32
Tested M.2 Key-M
33
Tested M.2 Key-E
33
Connecting Cables
34
Onboard Buttons
45
First Boot
46
SSD, Pcie SSD, and Nvme SSD Installation Steps
48
Internal RAID Controller
50
Fan Header and PWM Setup
85
Setting up SLI and Physx
89
Realtek HD Audio Manager
93
Installing Drivers and Software
116
Windows 10 Driver Installation
116
Warranty and Overclocking
117
Troubleshooting
118
SSD / HDD Is Not Detected
118
System Does Not POST, and POST Code Indicator Reads "C
120
System Does Not POST, and POST Code Indicator Reads "55" or "B7
121
System Does Not POST, and POST Code Indicator Reads "D7
121
Have a Question Not Covered Above, or Want some Online Resources
122
POST Beep Codes
123
POST Port Debug LED
124
EVGA Glossary of Terms
130
Compliance Information
133
