EVGA Z87 Motherboard
16
 CMOS Clear Button

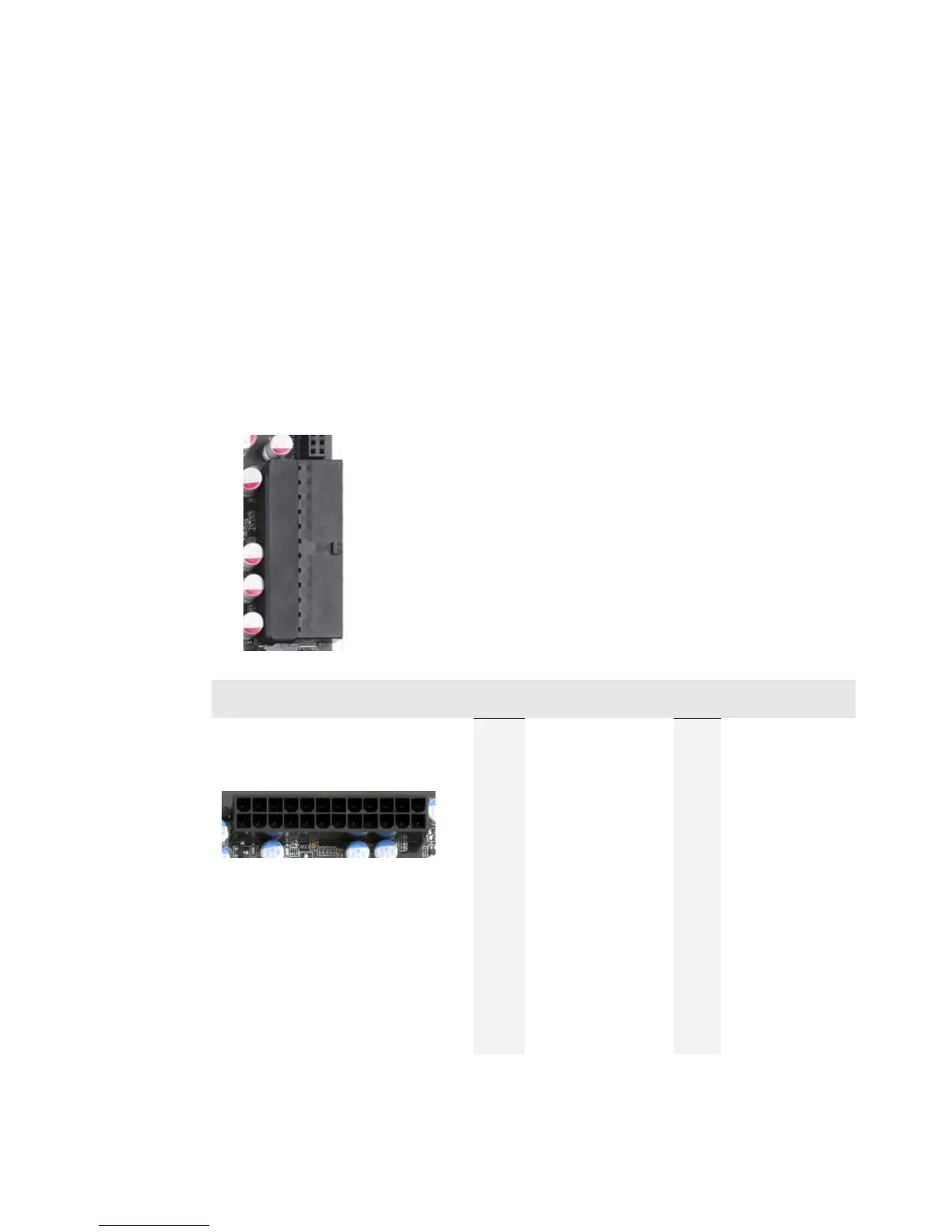

24pin ATX Power (PW1)
PW1 is the main power supply connector located along the right edge of the
board. Make sure that the power supply cable and pins are properly aligned with
the connector on the motherboard. Firmly plug the power supply cable into the
connector and make sure it is secure.
The 24pin Power Connector may be standard or right angled depending on
your motherboard model.
Connector
Pin
Signal
Pin
Signal
1
+3.3V
13
+3.3V
2
+3.3V
14
-12V
3
GND
15
GND
4
+5V
16
PS_ON
5
GND
17
GND
6
+5V
18
GND
7
GND
19
GND
8
PWROK
20
RSVD
9
+5V_AUX
21
+5V
10
+12V
22
+5V
11
+12V
23
+5V
12
+3.3V
24
GND
Right Angled 24pin Power Connector
24
13
12
1
