CLEANING THE MIXER AND
DIFFUSER
After each load and/or on a weekly or more
frequent basis, depending on how often the
appliance is used, the quality of the incom-
ing water and the products used, the mixers
must be sanitised.
The parts that need to be cleaned are: The
powder deposit trays, instant drink dispens-
ing mixers and pipes and the diffuser.
5
4
6
3
2
1

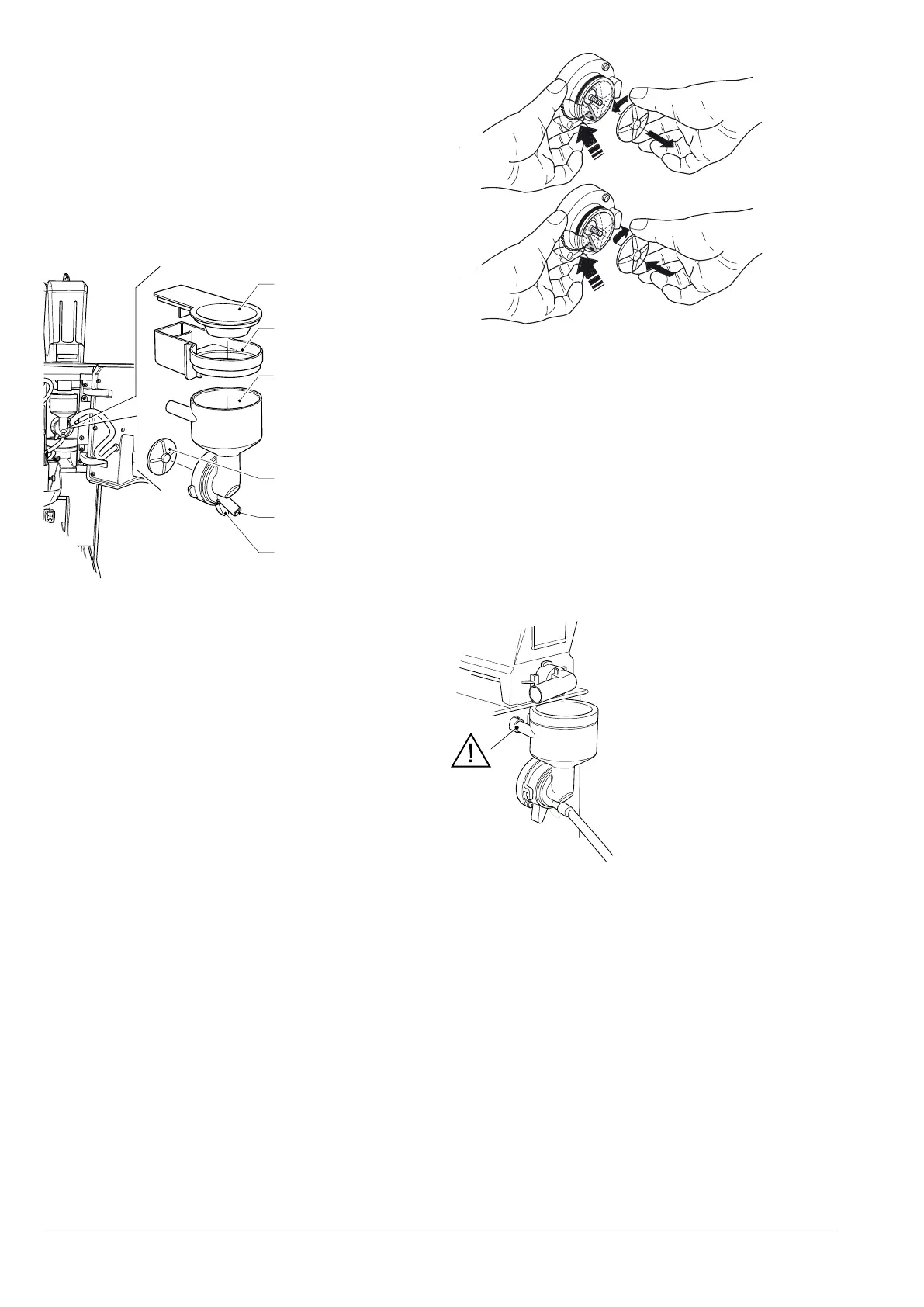

Fig. 9
1. Instant powder funnel
2. Instant powder tray
3. Water funnel
4. Mixer fan
5. Instant beverage hose connection
6. Mixer locking ring
To clean the mixer, proceed as follows:
1. Disconnect the instant beverage hose
from the connection of the water funnel.
2. Turn the water funnel locking ring anti-
clockwise and remove the mixer from the
appliance.
3. Separate all the components (the instant
products funnels, the water funnels, the
conveyors, the powder trays).
4. Remove the fans: block the disk fitted
on the motor mixer shaft with one finger,
then unscrew the mixer fan.
Fig. 10
5. Soak the components for about 20
minutes in a container filled with a pre-
prepared sanitising solution, whilst tak-
ing care to mechanically remove the
residues and visible films using swabs or
brushes if necessary.
6. Rinse thoroughly and dry each part care-
fully.
7. Reassemble the fans.
8. Reassemble the mixer parts and cor-
rectly reposition the water funnel.
Check that it has been correctly inserted.
Fig. 11
