ELECTRICAL CONNECTION
The appliance requires a single phase volt-
age of 230-240 V∿ and it is protected by a
15 A fuse.
Only Plus version the appliance must
be connected to an electric mains with
a maximum impedance (Z) of 0.2745
ohm.
For the connection, make sure that the
nameplate details correspond to those of
the mains, and in particular that: the voltage
is within the recommended limits for the
connection points;
It is mandatory to use a main switch,
in accordance with the current instal-
lation standards and make sure that
it is located in an accessible position.
The switch must have the suitable char-
acteristics to withstand the maximum
required load and ensure a complete
disconnection from the power sup-
ply under conditions of overvoltage
category III and, therefore, protect the
circuit against ground faults, overloads
and short circuits.
The switch, the socket and the plug must
be placed in an accessible position.
The appliance is to be considered electri-
cally safe only when it has been correctly
connected to an ecient earthing system,
in accordance with the current safety regu-
lations.
It is important to have this fundamental
requirement checked. If in doubt, have
the system carefully checked by a qual-
ied professional.
The power supply cable is exible, has a
non-detachable plug and is supplied with
the appliance.
The cable connection should be made on
the appropriate terminal board on the right
side of the appliance, as shown on the wir-
ing diagram.
To connect the cable, the side panel must
be removed.
Any connection cable replacements must
be solely carried out by qualied personnel
and using only the following types of exi-
ble cables: HO5RN-F, HO5VV-F or H07RN-
F 3x1-1.5 mm2 cross section.
The use of adapters, multiple plugs
and/or extension leads is forbidden.
The manufacturer shall not be held re-
sponsible for any damage caused due
to the non-observance of the above-
mentioned precautions.
L
N
1 2 3

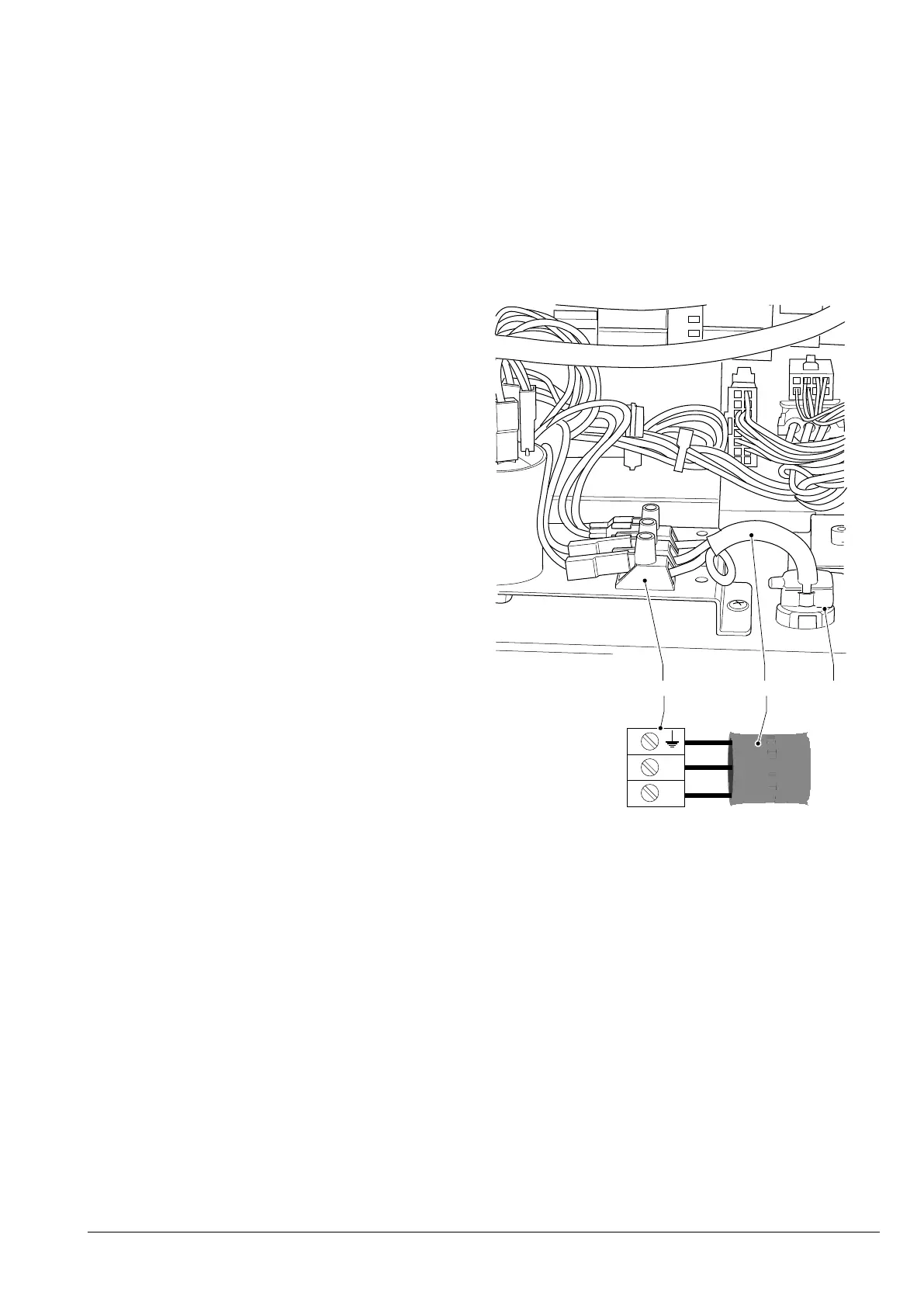

Fig. 21
1. Connection terminal board
2. Electric cable
3. Cable clamp
