Evolite Moving eam 7R - DMX Connection

Moving Beam 7R User’s Manual Ver. 1.00 Page21

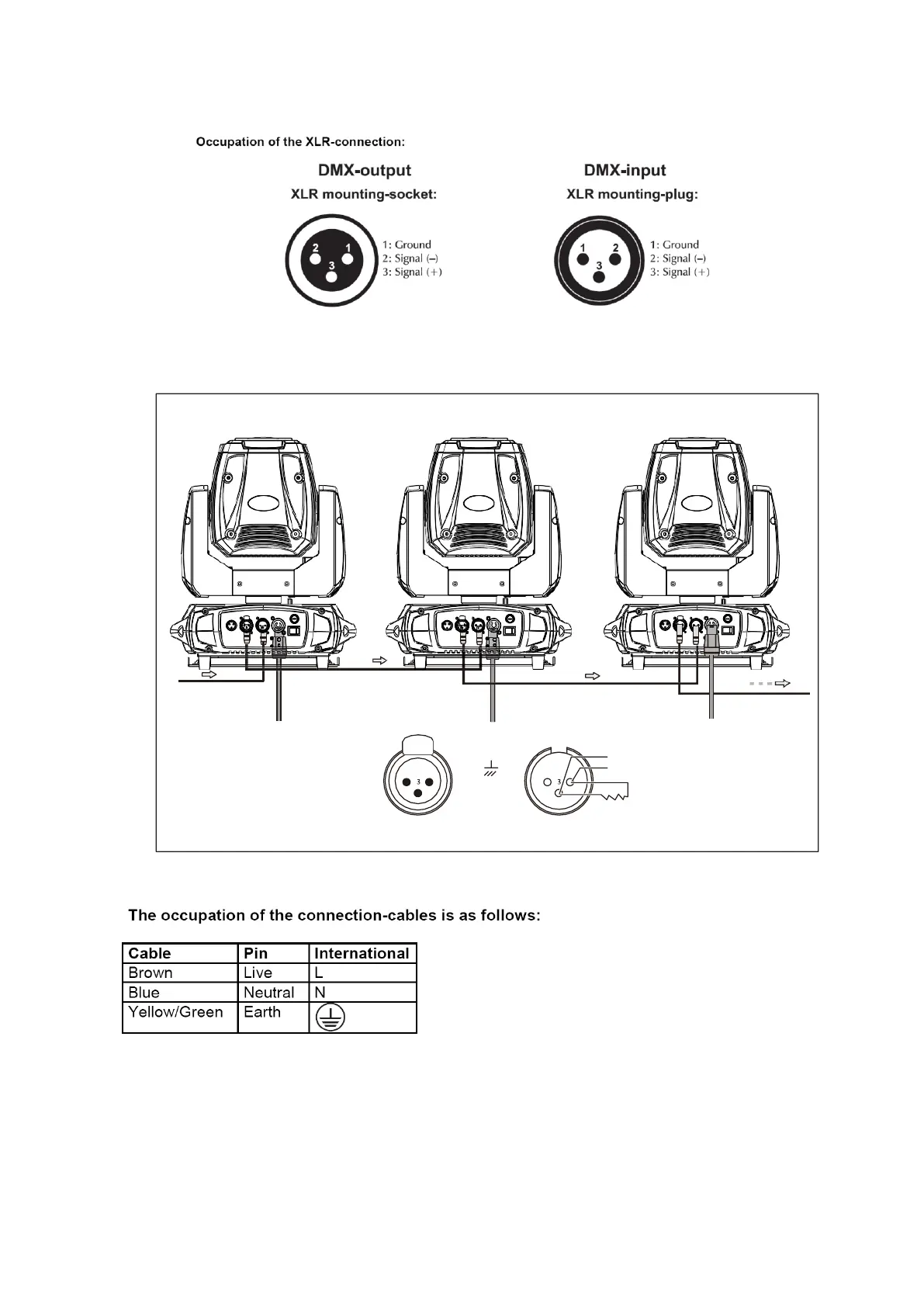

o DMX Connection
DMX IN
POWER IN
Signal (-)
Signal (+)
2 1
Ground
1 2
Signal (-)
Signal (+)
120 Ω
DMX512 OUT
DMX512 IN
