NEXUS 310 GRAVITY FED INSTALLATION
WASTE PIPE CONNECTION
The waste valves are where the waste from your Nexus is discharged when cleaning
and prior to draining. The 1
1
/2” valve is for the Inner Chamber (B) and is used for when
cleaning the Eazy, while the ¾” valve is for draining the outer chamber (D)(only when
and if required).
Both of these valves can be connected using a waste pipe kit (optional extra) as shown
in Figs 6.1-3 or can just be discharged individually. If the Nexus is located below your drain
height the waste can be either discharged into a sump where a submersible pump can
be used to pump the waste away or an in-line pump can be connected to the wasteline
where it can pump directly to waste.
Once your Nexus is installed and plumbed in as described above, you are ready to ll the
Nexus and begin treating your pond water.

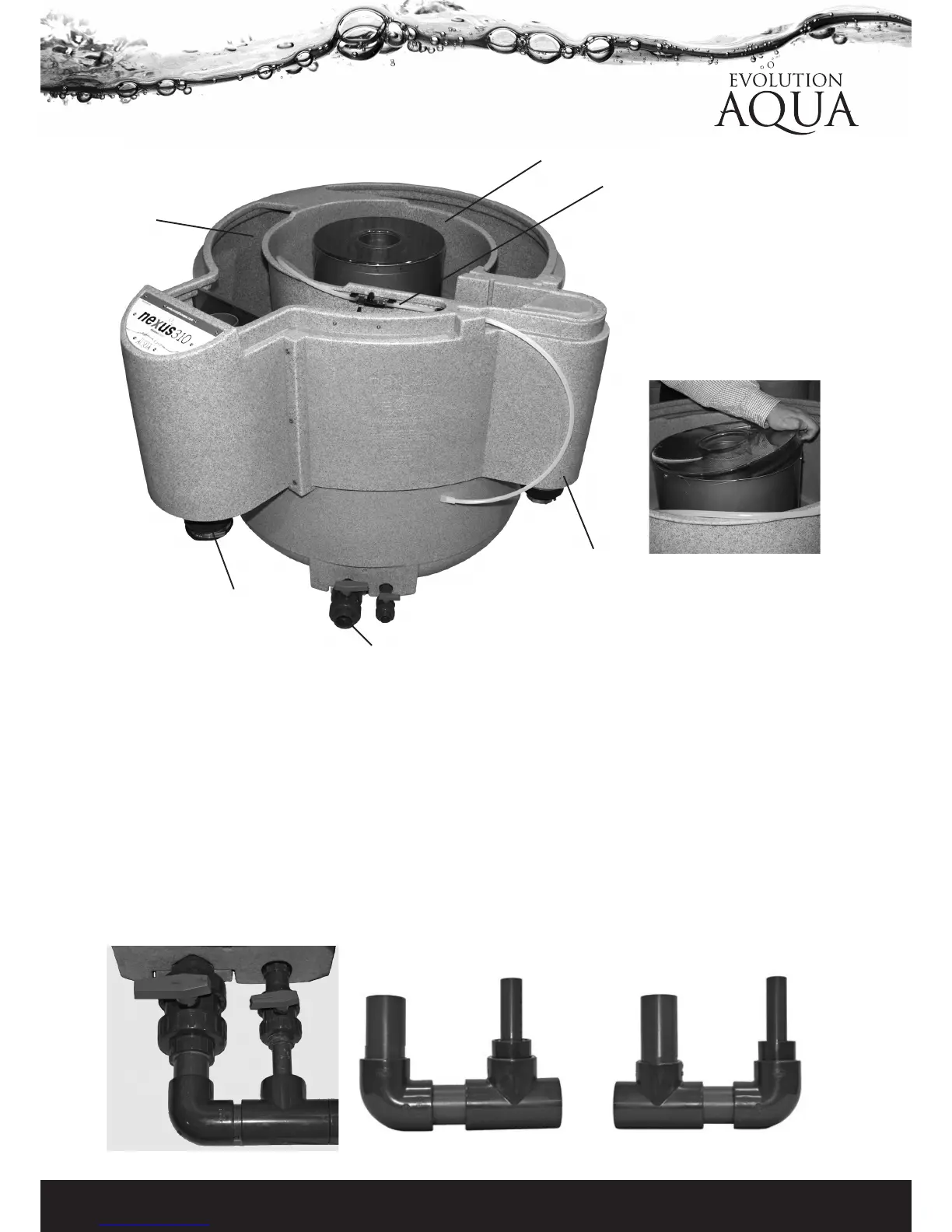

Fig 5
Fig 6.1 Installed
Fig 6.3 Exit to left
Fig 6.2 Exit to right
How to remove the
clear lid from the Eazy.
This is a tight t.
Do not remove the
screws
