TYPICAL INSTALLATIONS WITH A FILTER
Installed on a pressurised system with a K1 Micro Bead, Nexus+, EazyPod.
The slide valves on the Tempest Filter enable connection to 1½" pressure pipe.
The installation example shown below has a by-pass that will enable you to
increase the flow through your pond while maintaining the optimum flow through
the Tempest Filter. Installing ball valves on the pipe work will help you regulate the
flow. The return from the Tempest and the K1 Micro Bead go back to the pond.
IMPORTANT: Ensure slide valves are fitted to inlet and outlet of
the Tempest filter.
IMPORTANT: We always recommend fitting unions when installing in
line equipment on your system which help when removing the filter.
IMPORTANT: Optimum flow rate through the Tempest filter is
5,000 LPH / 1,100 GPH / 1,320 US GPH

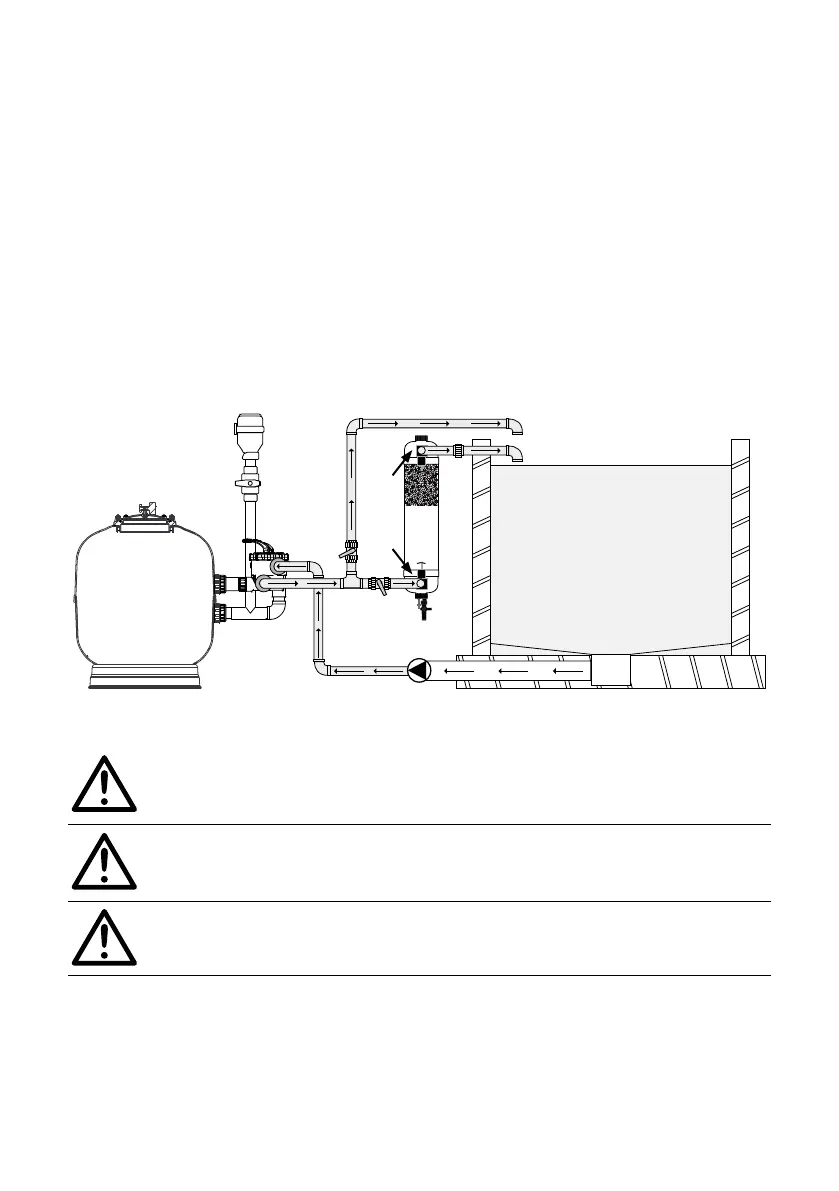

TEMPEST FILTER INSTALLATION IDEAS
POND
SLIDE
VALVE
SLIDE
VALVE
BALL
VALVE
