TEMPEST FILTER INSTALLATION
MODULAR TEMPEST FILTER INSTALLATIONS
On larger systems that require a higher flow rate, multiple Tempest filters can
be installed in a modular system. The slide valves on the Tempest Filter enable
connection to 1½" pressure pipe. If installing the Tempest Filter using flexible
hose you will need to fit a reducing sleeve (EA Code: M35-050) and a 1½"
solvent stepped hosetail (EA Code: HOSETAIL15) inside each slide valve.

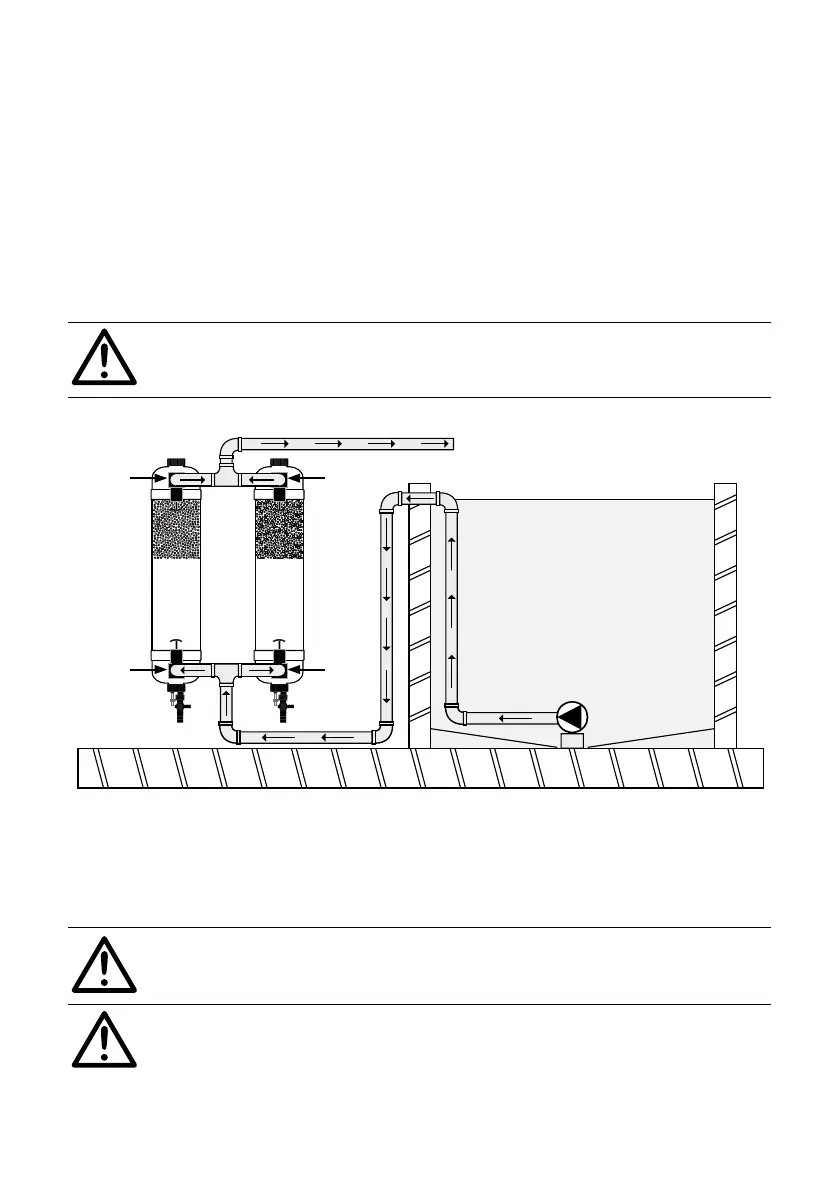

Although on the installation above we show two filters into one return line,
independent return lines will allow you to observe the flow rate through both
Tempest filters and balance accordingly.
IMPORTANT: It is important that each Tempest can be isolated using
the slide valves so that cleaning can be carried out independently.
IMPORTANT: We always recommend fitting unions when installing in
line equipment on your system which help when removing the filter.
IMPORTANT: Optimum flow rate through each Tempest filter is
5,000 LPH / 1,100 GPH / 1,320 US GPH
POND
RETURN LINE
SLIDE
VALVE
SLIDE
VALVE
SLIDE
VALVE
SLIDE
VALVE
To Next Page
