TEMPEST FILTER SET-UP

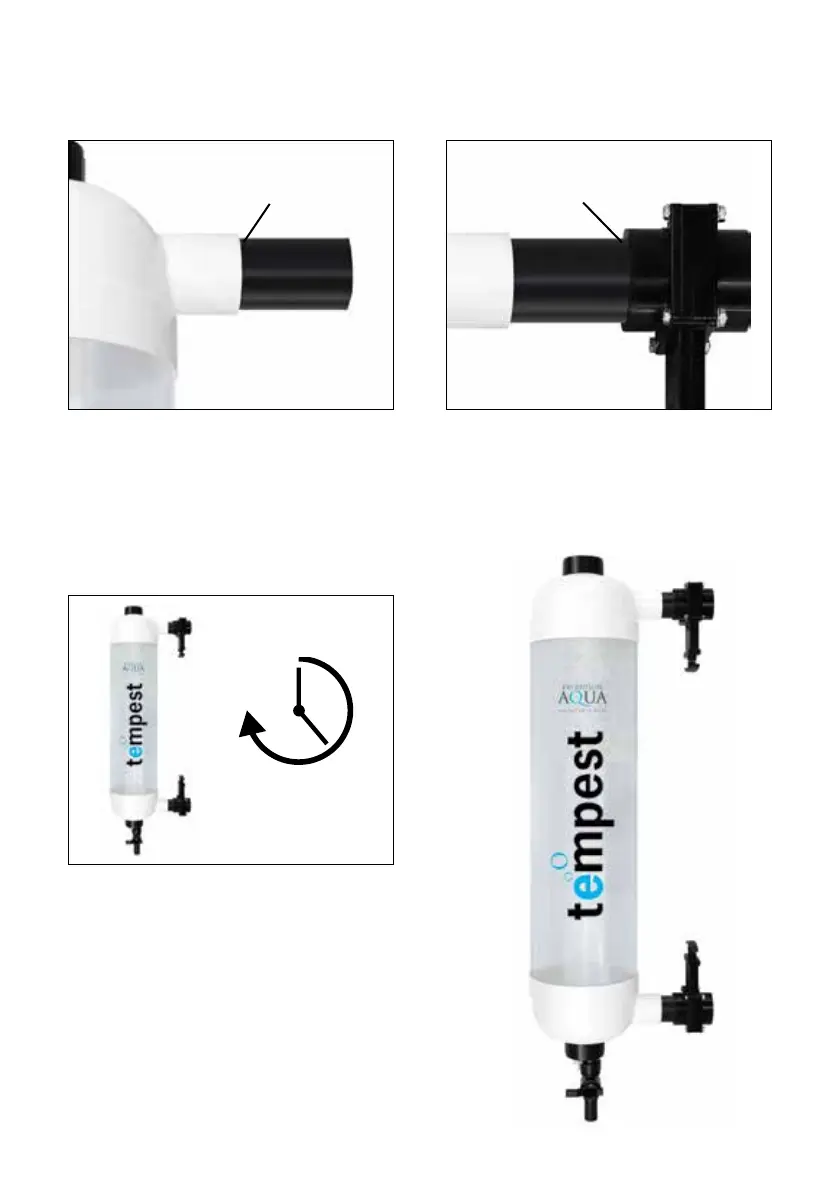

STEP 5: Take the second 100mm
length of 1½" connector pipe and
solvent weld it into the outlet of the
Tempest filter. Push pipe into the
outlet until it stops.
STEP 7: Allow the glue to set for
atleast 5 hours.
The slide valves fitted allow connection to
1½" pressure pipe. If installing the Tempest Filter
using flexible hose you will need to fit a reducing
sleeve (EA Code: M35-050) and a 1½" solvent
stepped hosetail (EA Code: HOSETAIL15) inside
each slide valve.
The Tempest is now set-up ready for installation.
STEP 6: Solvent weld the slide valve
onto the opposite end of the 1½"
connector pipe. Push slide valve onto
pipe until it stops.
WAIT
SOLVENT WELD SOLVENT WELD
