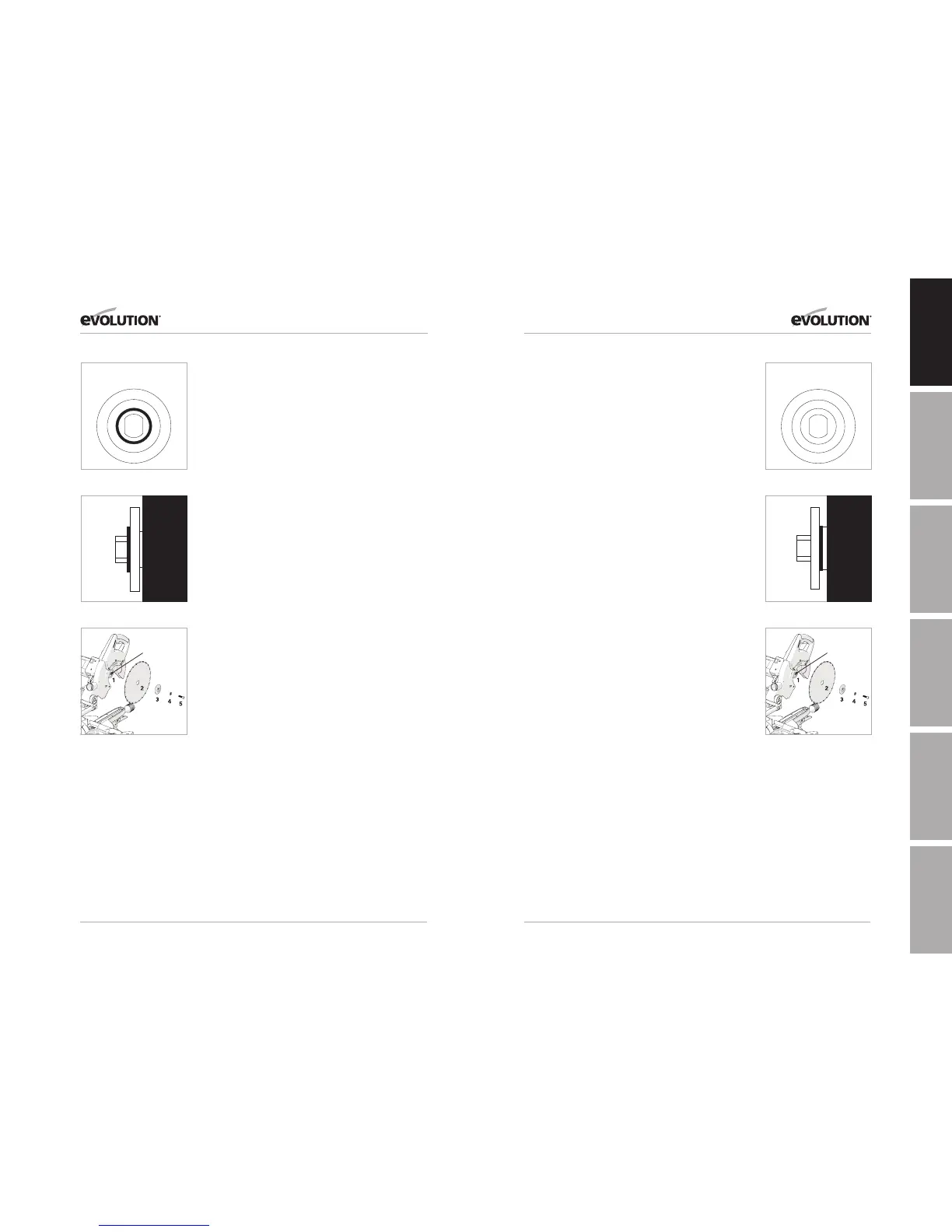

DUAL-SIDED INNER-FLANGE (USA Model Only)
USA models only are supplied with a dual-sided inner-flange
which enables you to safely fit Evolution multipurpose blades
with a 25.4mm (1”) arbor and by ‘reversing’ this dual-sided
inner-flange, you can also safely fit saw blades with a 16mm
(5/8”) arbor as available in the USA market.
Note: Evolution Multipurpose blades save time and money.
Ideal for cutting mild steel, aluminium, plastics and wood
(even wood containing embedded nails)! For use only with
an Evolution power tool saw. All Evolution Multipurpose
TCT saw blades are made in Japan and are of premium
quality and performance.
1) 25.4mm (1”) ARBOR BLADES
WARNING:
Only carry out this operation with the machine
disconnected from the mains supply.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• Thedual-sidedinner-flangehasa25.4mm(1”)arbor
ring elevation, indicated by the black circle (Fig. 40B).
• The25.4mm(1”)ringelevationwillbesuppliedpointing
‘outwards’ from the motor. This provides a 25.4mm (1”)
arbor (Fig. 40C).
• Installthenewblade (Fig. 40D). Make sure the rotation
arrow on the blade matches the clockwise rotation arrow
on the upper guard.
Note: The blade teeth should always point downward
at the front of the saw.
• Installtheouter-bladeflange,washerandarborscrew.
• Lockthearborandtightenthearborscrewusingmoderate
force, but do not overtighten.
• EnsuretheHexKeyisremovedandthearborlockhas
released before operating.
• Ensurethebladeguardisfullyfunctionalbeforeusing
the machine.
2) 16mm (5/8”) ARBOR BLADES
WARNING:
Only carry out this operation with the machine
disconnected from the mains supply.
Note: It is recommended that the operator considers wearing
protective gloves when handling the blade during installation
or when changing the blade.
• By‘reversing’thisdual-sidedinner-flange,youcanalsosafely
fit saw blades with a 16mm (5/8”) arbor as available in
the USA market (Fig. 40E).
• When‘reversed’,the25.4mm(1”)ringelevationwillbe
pointing ‘inwards’ to the motor. This now provides a 16mm
(5/8”) arbor on the adjacent side (Fig. 40F).
• Installthenewblade(Fig. 40G). Make sure the rotation
arrow on the blade matches the clockwise rotation arrow
on the upper guard.
Note: The blade teeth should always point downward
at the front of the saw.
• Installtheouter-bladeflange,washerandarborscrew.
• Lockthearborandtightenthearborscrewusingmoderate
force, but do not overtighten.
• EnsuretheHexKeyisremovedandthearborlockhas
released before operating.
• Ensurethebladeguardisfullyfunctionalbeforeusing
the machine.
MOTOR
HOUSING
Fig. 40B
Fig. 40C
25.4mm 1” ARBOR
ELEVATED
25.4mm 1”
ARBOR SIDE

BLADE FITS
THIS SIDE
DUALSIDED INNERFLANGE
Fig. 40D
25.4mm 1”
DUALSIDED
INNERFLANGE
Fig. 40E
Fig. 40F
16mm 5/8” ARBOR
REVERSE SIDE OF FIG 40B
16mm 5/8”
ARBOR SIDE

BLADE FITS
THIS SIDE
MOTOR
HOUSING
DUALSIDED INNERFLANGE
Fig. 40G
16mm 5/8”
DUALSIDED
INNERFLANGE
