B. Outdoor unit

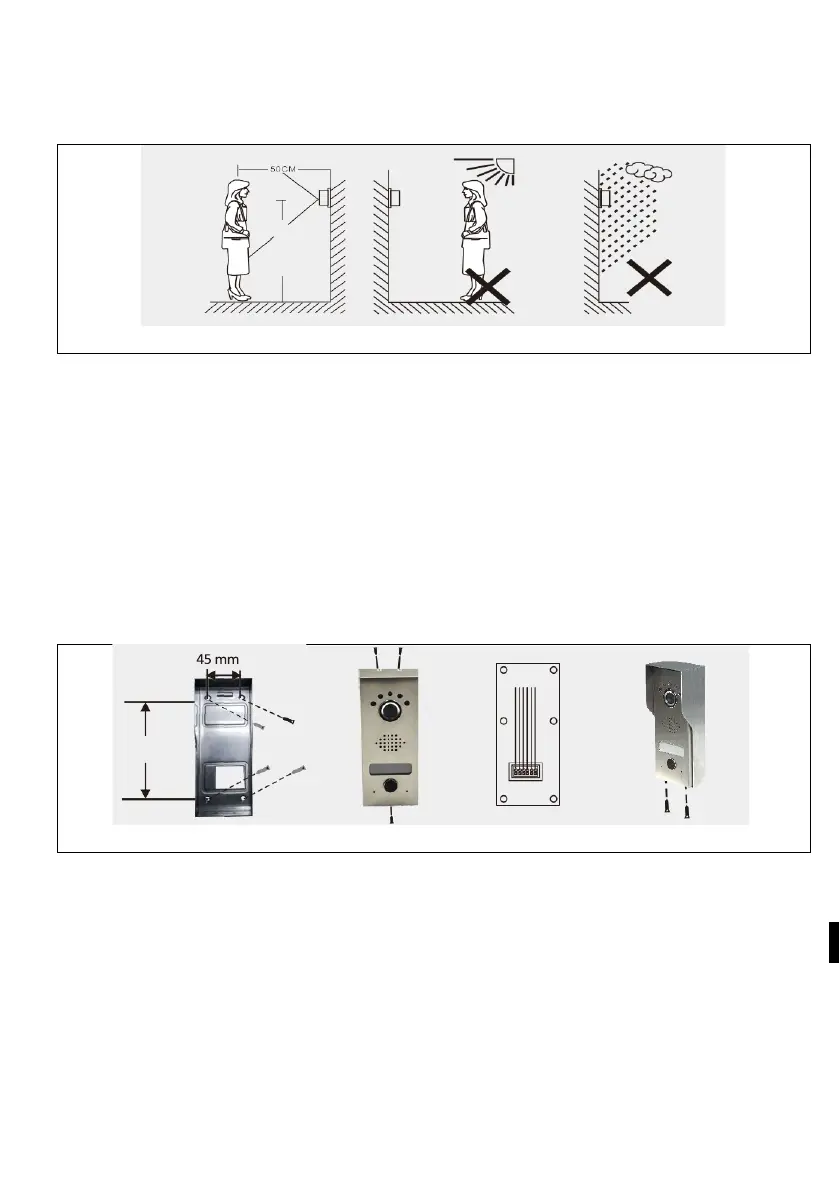

1) Mount the unit at a height of 1.4 m - 1.7 m from the ground (depending on the
camera effect) to avoid direct sunlight.
2) Drill the appropriate holes in the wall and plug the screw holes with silicone caps.
Fix the rain cover to the wall with screws.
3)
U
nscrew the top and bottom of the outdoor unit, hold the panel.
and press the button to remove the metal cover. Take out the name tag and wri
te
th
e name on the paper. Attach the nameplate and metal cover back on. Screw th
e
p
anel on well with a screwdriver.
When connecting the wires, follow the wiring diagram.
Attach the outdoor unit to the rain cover using the two screws on the underside.
125 mm
② ③
1
2 3 4 5 6
