SF1000 / SF2200e Inverter Generator Owner’s Manual
WARNING
Muffler reaches temperatures that can cause serio
burns if touched. NEVER touch hot surfaces.

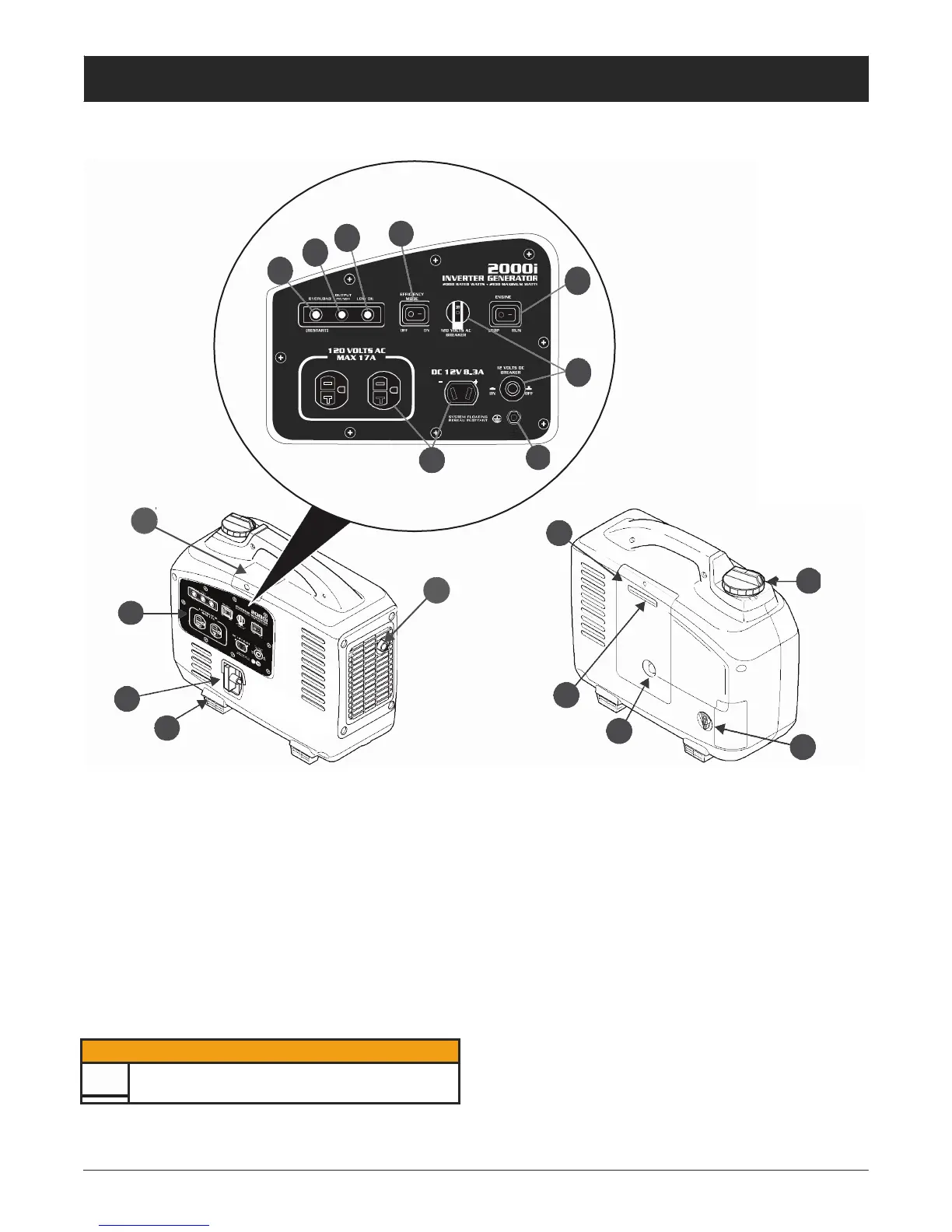

Front and Back View
Front and Back View
SF2200 Model
6
8
5
4
7
3
1
2
B
F
G
C
A
E
J
D
I
H
7. Engine Control Switch
Turns the engine ON or OFF.
8. Efficiency Mode Switch
When Efficiency Mode is ON, the engine speed will automati-
cally adjust based on the connected load, resulting in better
fuel consumption and less noise.
In DC operation, set the Efficiency Mode Switch to the
OFF position.
B—Top Maintenance Cover
Provides access to the engine spark plug.
C—Muffler
Provides outlet for engine exhaust.
D—Case Feet
Provides stability to the generator.
E—Recoil Starter Handle
Starts engine.
F—Back Maintenance Cover
Provides access to air filter, fuel filter, and oil fill cap.
G—Fuel Cap
Provides a secure seal on fuel tank. The SF1000 model has
a vented fuel cap.
H—Fuel Valve
Controls flow of fuel from fuel tank to carburetor.
I— Primer Bulb (SF2200 model only)
Provides primer fuel to start engine.
J—Choke Control
Controls choke valve. Choke control must be in the ON posi-
tion when starting a cold engine.
