3.4.ProcessingModuleInstallationand
Replacement

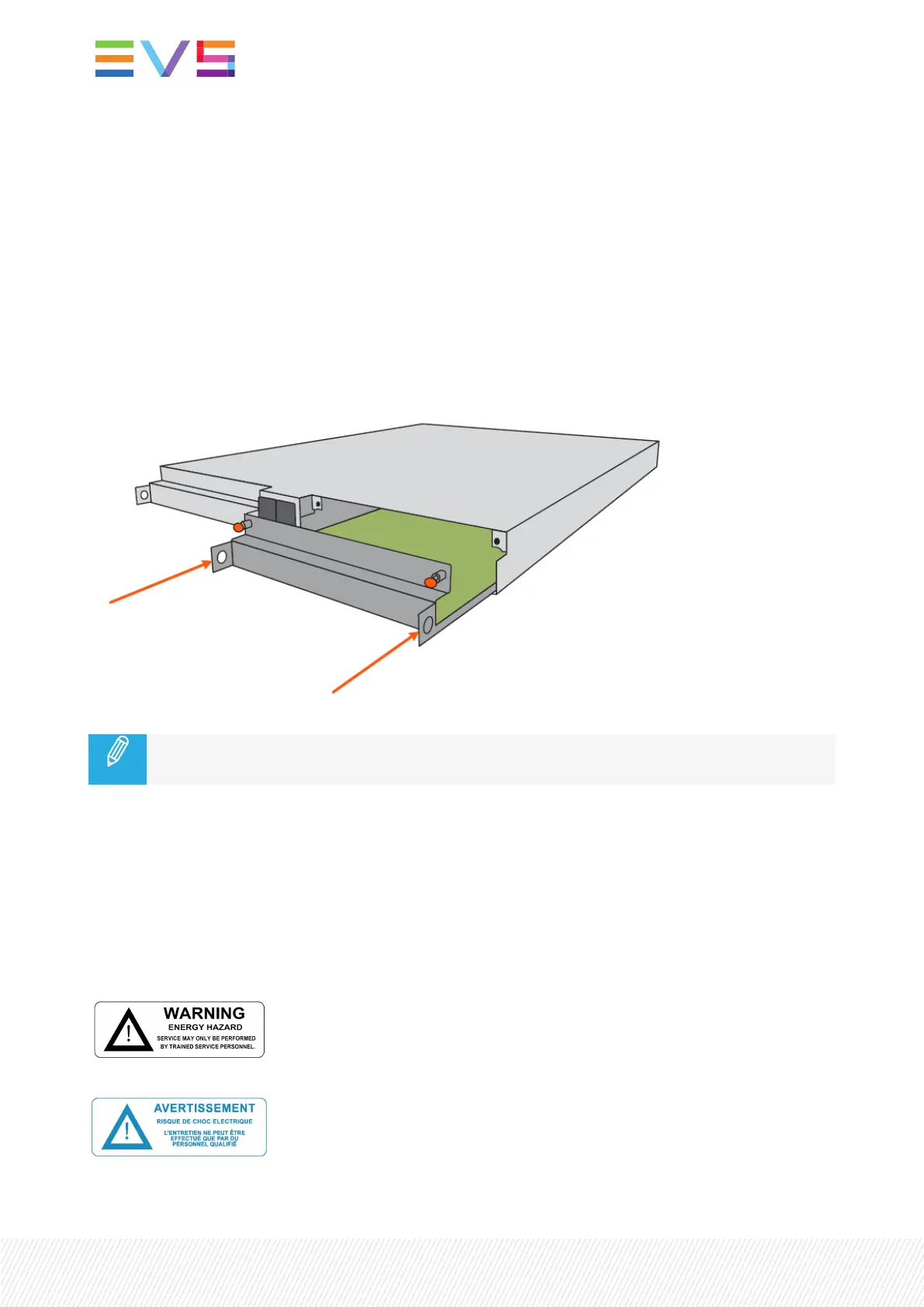

To insert the processing module into an NFR2001 frame, you should first determine whether the frame is
built as a datacenter version (connections on the front) or a broadcast version (connections on the
back). Once this is determined, slide in the processing module from the connector side until it cannot be
pressed any further. Make sure both sides of the card are following the glides so the card is guided
exactly into the frame’s internal bus connector. Push the card firmly into the internal bus. Then screw the
two lock screws, indicated in the picture below in red, firmly into the frame.
If a module slot remains empty, the empty slot should be fitted with a blind panel.
3.5.PowerSupplyInstallationand
Replacement
InstallingorReplacingthePowerSupplyinanNFR2001
The NFR2001 has redundant power supplies. Servicing one of the power
supplies requires disconnecting the corresponding power supply cable. To
reduce the risk of electric shock, disconnect both power supply cables
before servicing! This will cause the Neuron frame to shut down.
LechâssisNFR2001estéquipéd'alimentationsredondées.L'entretien
d'unedesalimentationsnécessitededéconnecterlecâbled'alimentation
correspondant.Pourréduirelesrisquesd'électrocution,débrancherles
deuxcâblesd'alimentationavanttoutentretien!Cecientraîneral'arret
completduchâssisNeuron.
8| March 2022 | Issue 4.1.E
