2. Hardware

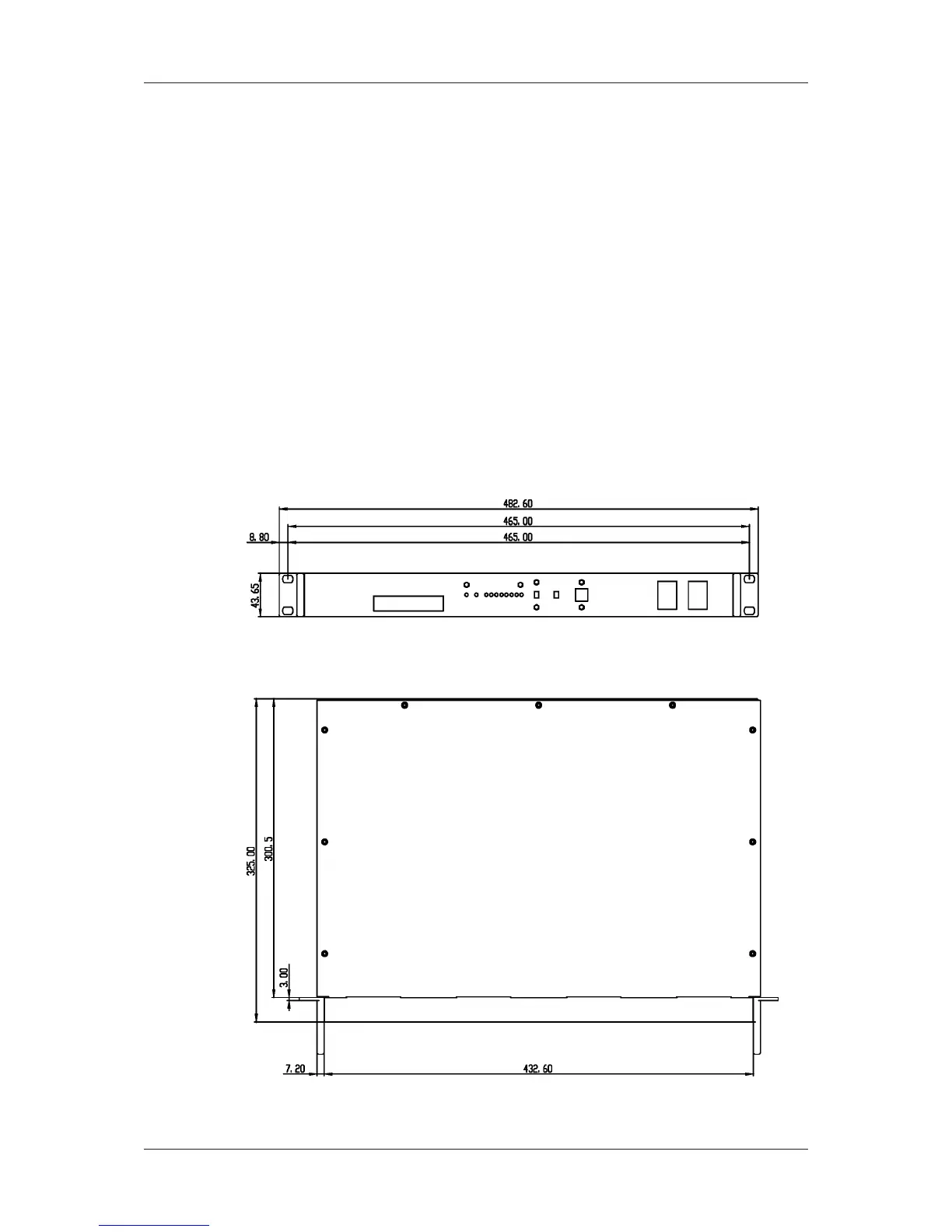

2.1. Dimensions
Overview
• 1RU 19” rackmount
• 110/220V auto-switch redundant power supply
• Power consumption: 0.35 A (inrush current)
• Weight: 4.08 kg / 3.99 lbs
Front View
Top View
2 2. Hardware
EVS Broadcast Equipment SA Issue 4.00.B- June 2014
