Machine description – quick overview
cool35 U31
099-008091-EW501
11.11.2011
13
4 Machine description – quick overview
4.1 cool35 U31

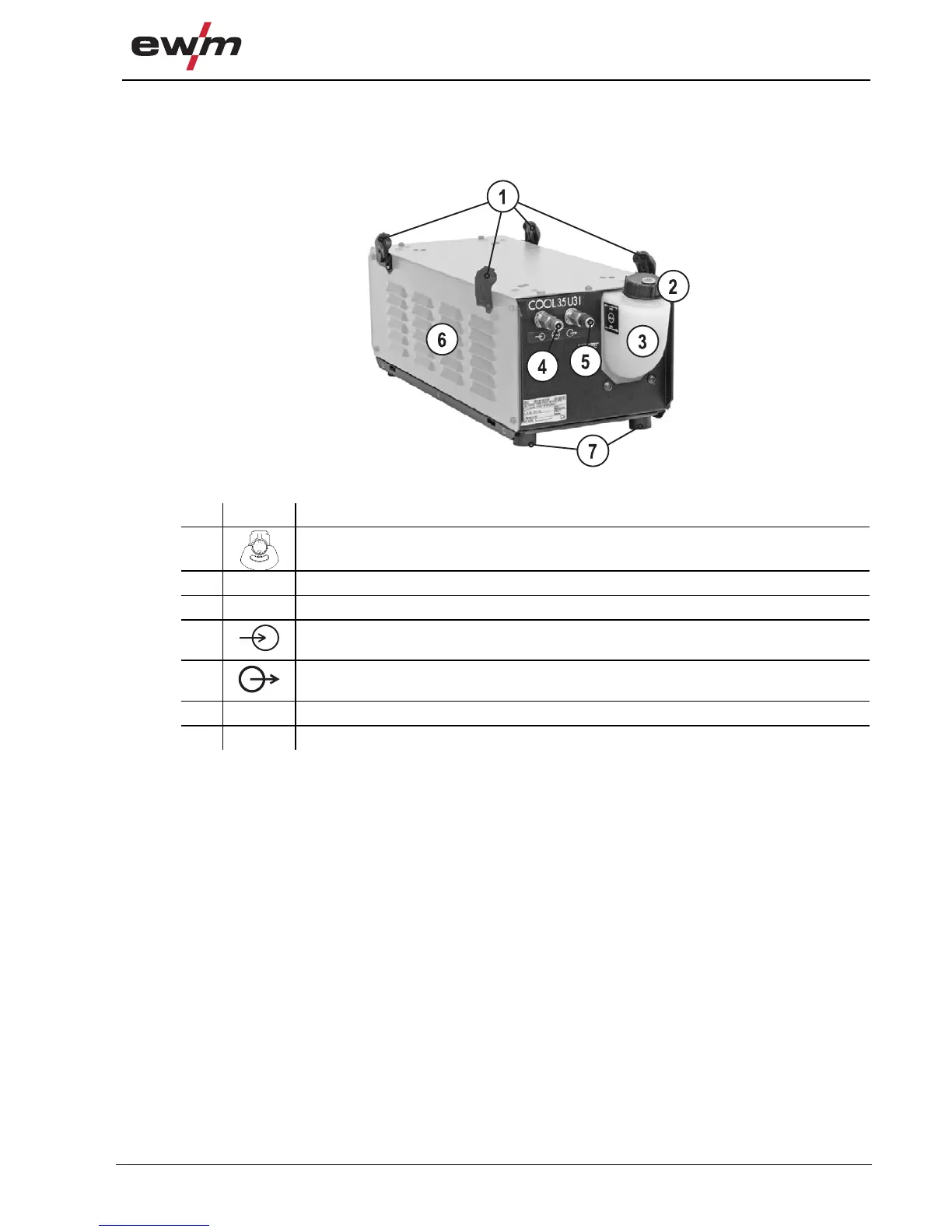

4.1.1 Front view
Figure 4-1
Item Symbol Description 0
1
Tension bracket closure
Connection between the cooling unit and the welding machine
2
Coolant tank cap
3
Coolant tank
4
Quick connect coupling, red
Coolant return from the welding torch
5
Quick connect coupling, blue
Coolant supply to the welding torch
6 Cooling air inlet
7
Machine feet
