EWM cool35 U31 - Rear View

Machine description – quick overview
cool35 U31
14
099-008091-EW501
11.11.2011

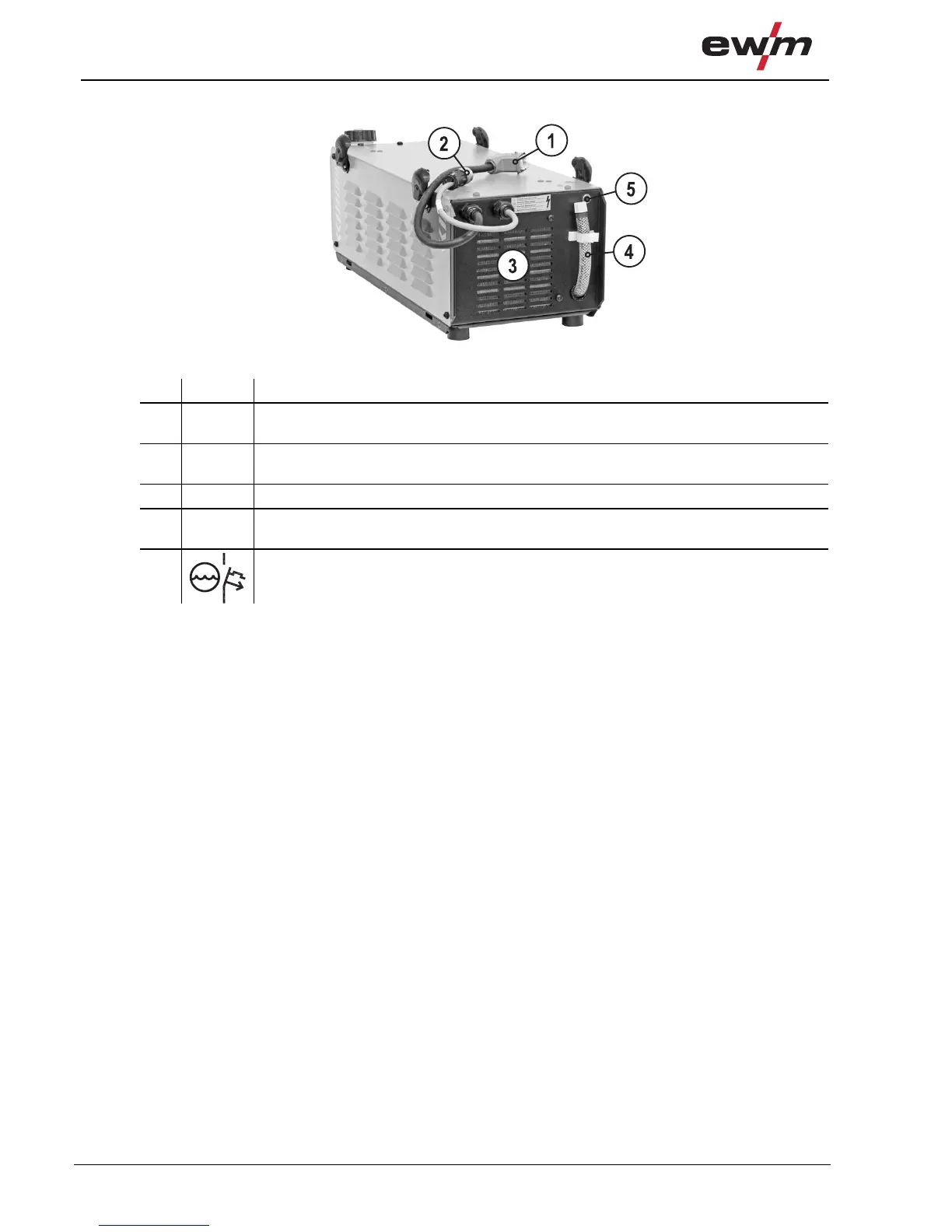

4.1.2 Rear view
Figure 4-2
Item Symbol Description 0
1
Connector plug, 4-pole
Cooling unit voltage supply
2
Connector plug, 8-pole
Cooling unit control lead
3 Cooling air outlet
4
Coolant drain hose
Device for draining the coolant
5
Automatic cut-out of coolant pump key button
press to reset a triggered fuse
