Design and function
Cooling module assembly/disassembly
099-008091-EW501
11.11.2011
19
2
1

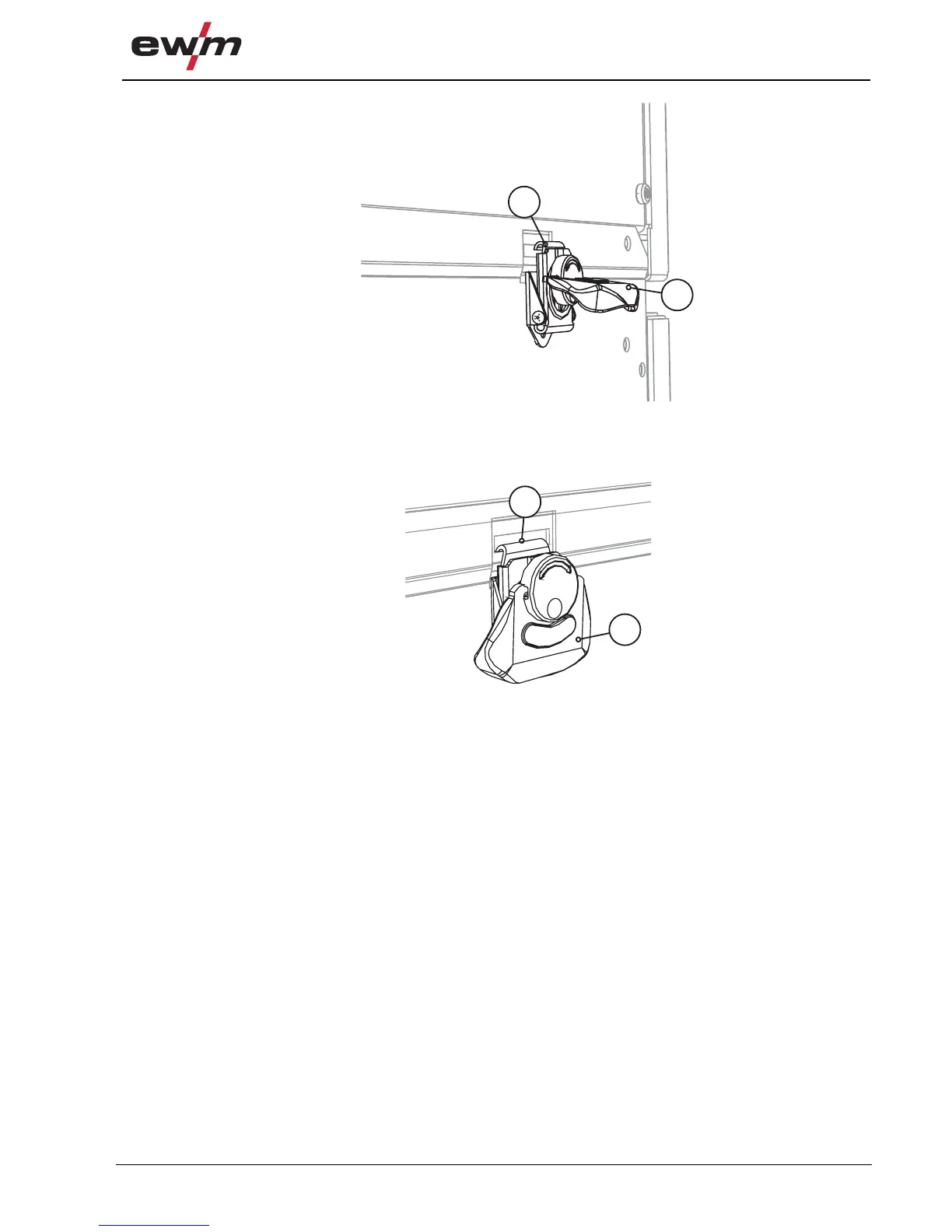

Figure 5-3
• Turn the wing-tip handle clockwise (B2) to close the fastening.
• Engage the locking hook in the recesses in the side walls of the welding machine.
2
1
Figure 5-4
• Lay the wing-tip handle down flat (C2).
5.3.2 Cooling module disassembly
• Lift the wing-tip handle and turn anti-clockwise until the locking hook is extended.
• Lift the locking hook out of the recesses on the welding machine.
• The welding machine can be lifted off the cooling unit.
