EWM cool35 U31 - Cool71 U42, Cool71 U43; Front View

Machine description – quick overview
cool71 U42, cool71 U43
099-008091-EW501
11.11.2011
15
4.2 cool71 U42, cool71 U43

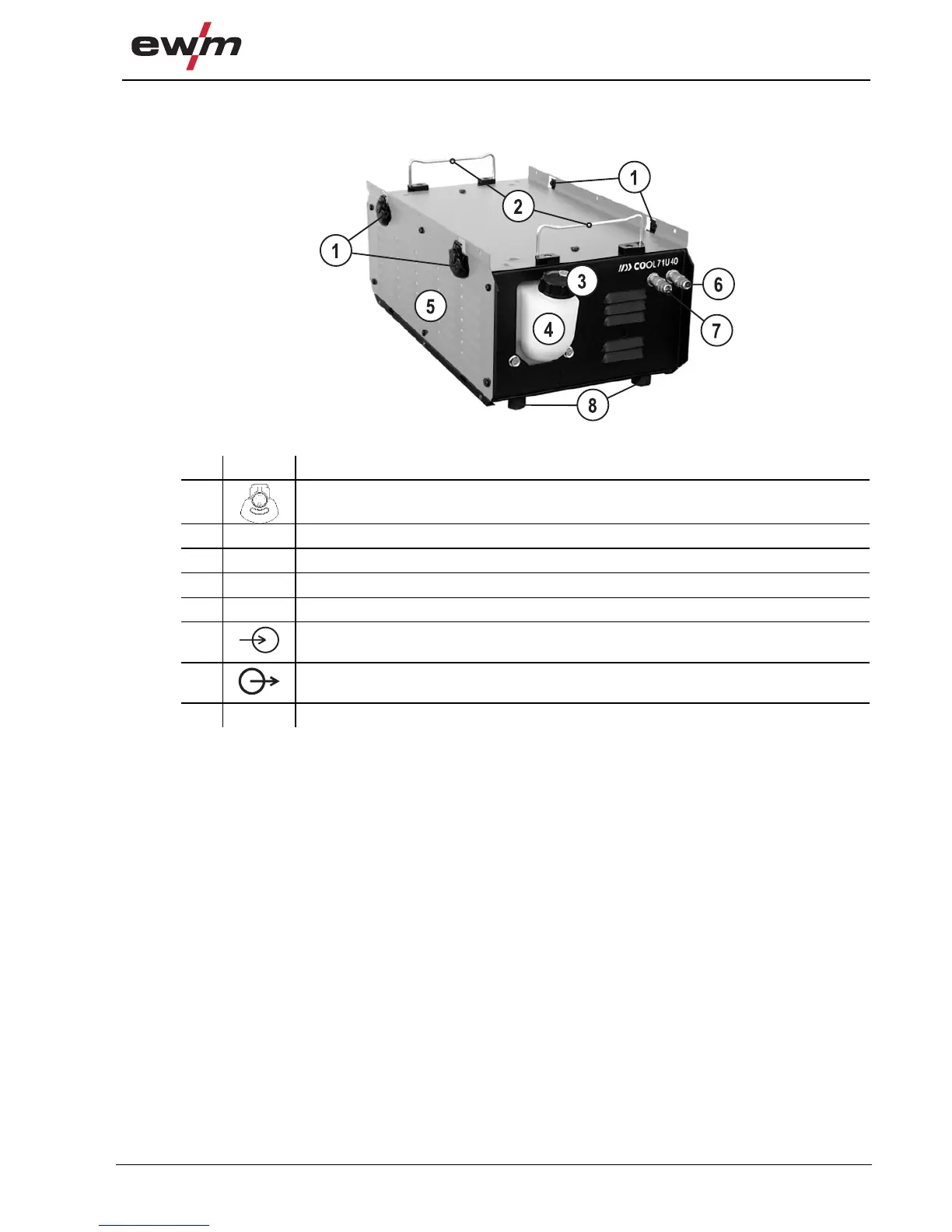

4.2.1 Front view
Figure 4-3
Item Symbol Description 0
1
Tension bracket closure
Connection between the cooling unit and the welding machine
2
Carrying handle
3
Coolant tank cap
4
Coolant tank
5 Cooling air inlet
6
Quick connect coupling, red
Coolant return from the welding torch
7
Quick connect coupling, blue
Coolant supply to the welding torch
8
Machine feet
