EWM cool35 U31 - Cooling Module Assembly;Disassembly; Cooling Module Assembly

Design and function
Cooling module assembly/disassembly
18
099-008091-EW501
11.11.2011

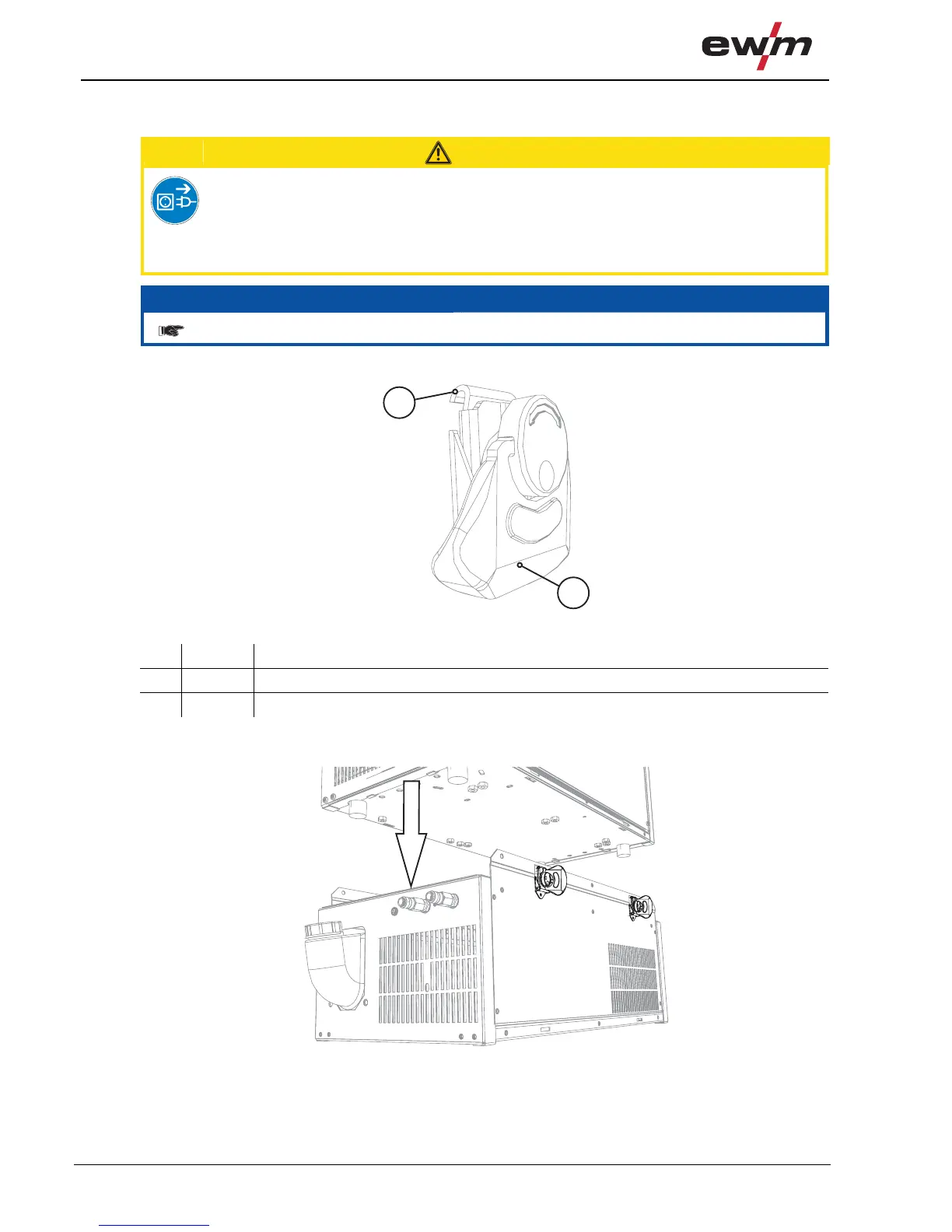

5.3 Cooling module assembly/disassembly
CAUTION
Damage due to supply lines not being disconnected!
During transport, supply lines which have not been disconnected (mains supply leads,
control leads, etc.) may cause hazards such as connected equipment tipping over and
injuring persons!
• Disconnect supply lines!
NOTE
Assembly and disassembly is very simple and doesn't require any tools.
5.3.1 Cooling module assembly
2
1
Figure 5-1
Item Symbol Description 0
1
Locking hook
2
Butterfly handle
• Lift the wing-tip handles on the tension bracket closure (A2) and turn anti-clockwise (B2) until the
locking hook is extended.
Figure 5-2
• Position the welding machine on the module as shown in fig.
