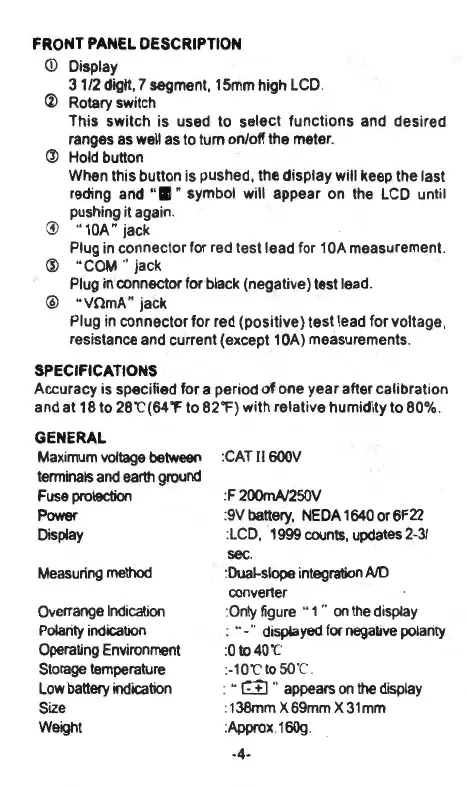

FRONT PANEL DESCRIPTION
CD
Display
31/2
digit, 7 segment, 15mm high LCD.
CD
Rotary switch
This
switch
is used to
select
functions
and
desired
ranges as well as to turn on/off the meter.
a>
Hold button
When this button is pushed,
the
display
will keep the last
reding and
"•
" symbol will
appear
on the LCD until
pushing it again.
Gl
"
10A"
jack
Plug in connector for red test lead for
1
OA
measurement.
@ " COM " jack
Plug in connector for black (negative) test lead.
@ " VOmA" jack
Plug in
connector
for red
(positive)
test
lead for voltage,
resistance and current (except 1
OA)
measurements.
SPECIFICATIONS
Accuracy is specified for a period
of
one
year
after calibration
and at 18 to 28"C(64"F to
82'F
)
with
relative
humidity
to 80%.
GENERAL
Maximum voltage between
terminals and earth ground
Fuse protection
Power
Display
Measuring method
Overrange Indication
Polarity indication
Operating Environment
Storage temperature
Low
battery indication
Size
Weight
:CAT11600V
:F 200mA/250V
:9V battery, NEDA 1640 or 6F22
:LCD, 1999 counts, updates 2-
3/
sec
.
:Dual-slope integration
AID
converter
:Only figure " 1 "
on
the
display
:
..
· " displayed for negative polarity
:Oto40"C
:-
10
"C
toso
·c.
:
..
G " appears
on
the display
:138mm X 69mm X 31mm
:Approx.160g.
-
4·
