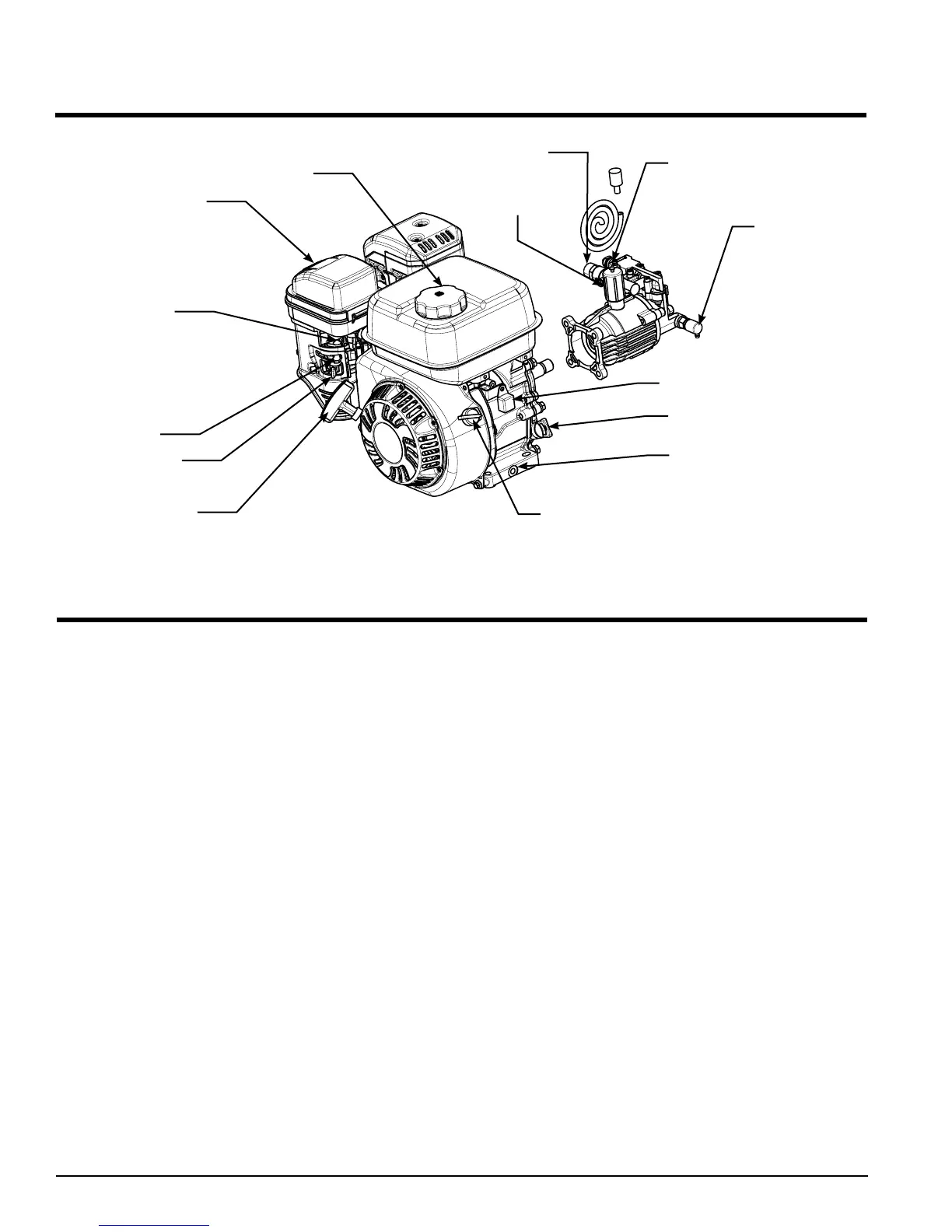

ENGINE AND PUMP FEATURES - FIGURE 1
• SAVE ALL INSTRUCTIONS
OPERATING CONNECTIONS
• SAVE ALL INSTRUCTIONS
HIGH PRESSURE HOSE
Attach the high pressure hose to the outlet
connection located on the pump. (See Figure 1).
WATER CONNECTION
Before connecting to unit, run water through
the garden hose (not supplied) to flush out any
foreign matter. Check that the screen is clean
and is in the inlet of the pump. Attach garden
hose to the inlet connection located on the
pump. (See Figure 1).
NOTE: The water supply must provide a
minimum of 4 GPM at 40 to 80 PSI or the
pump will be damaged.
FUEL FILL
SIPHON
INJECTOR
THERMAL
RELIEF VALVE
OUTLET
CONNECTION
THROTTLE
LEVER
INLET
CONNECTION
AIR FILTER
CHOKE LEVER
FUEL ON/OFF
RECOIL
STARTER
OIL FILL
OIL DRAIN
ENGINE
ON/OFF
SWITCH
FUEL FILTER
