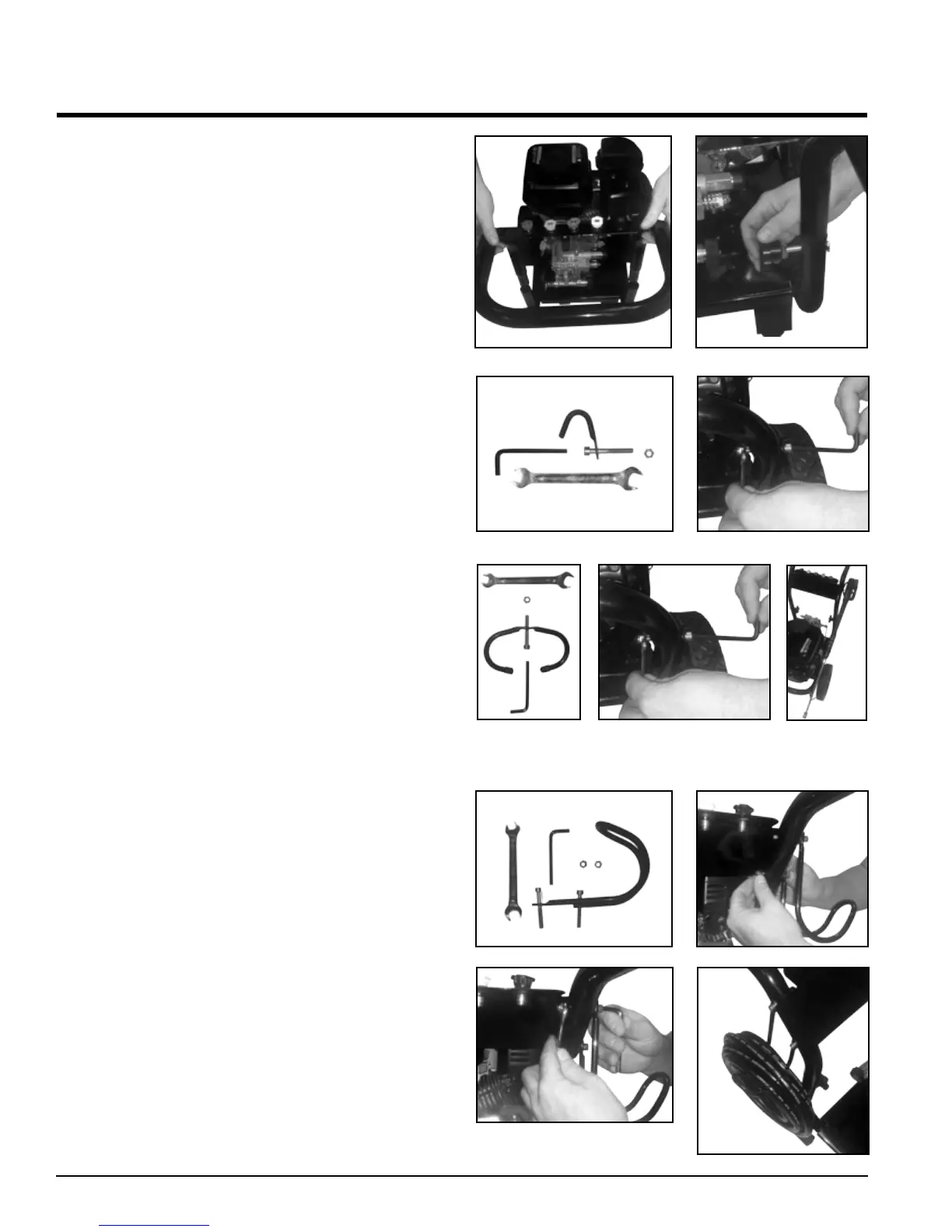

ASSEMBLY INSTRUCTIONS (continued)
• SAVE ALL INSTRUCTIONS
4. Remove the handle and rotate 180 degrees
and re-insert into the frame. Re-assemble
both knobs and screws.
5. Assemble the lower gun hook using (1) M6 x
45mm long socket head cap screw, (1) M6
nut, and the supplied hex wrench and open-
end wrench. Tighten securely.
6. Assemble the upper gun hook using (1) M6 x
45mm long socket head cap screw, (1) M6
nut, and the supplied hex wrench and open-
end wrench. Tighten securely.
7. Assemble the upper hose hanger using (2)
M6 x 45mm long socket head cap screws,
(2) M6 nuts, and the supplied hex wrench
and open-end wrench. Tighten securely.
