Excell PWZ0142700.01 User Manual

Copyright © 2011 MAT Industries, LLCM100135 17 - ENG
1
2
3
4
5
6
11
12
13
10
9
8
7
14
15
16
17
18
19
2
20
21
22
23
24
25

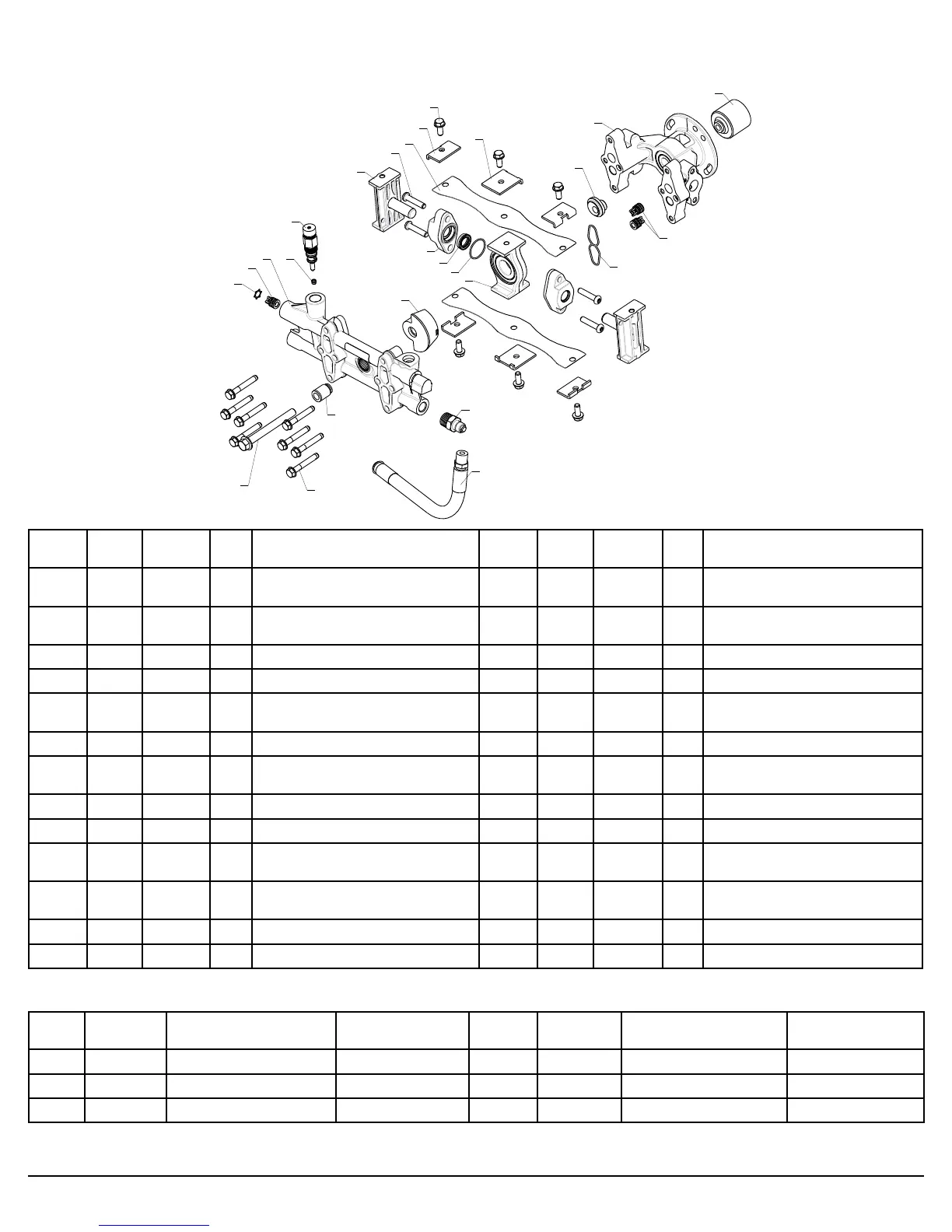

PARTS LIST & EXPLODED VIEW
PRESSURE WASHER ITEM # E104579 - PUMP
ITEM KIT #
PART
NO.
QTY DESCRIPTION ITEM KIT #
PART
NO.
QTY DESCRIPTION
1 1 1 Ring, Retaining, Internal, .600,
IC2
14 4 Clamp, Block End
2 1,5 5 Assembly, Valve, IC2 15 6 Screw, IHW 5/16 - 18 X .75
GRD 8
3 1 Assembly, Head IC2 16 2 Clamp, Block Mid-Strap
4 2 1 Seat, Unloader, IC2 17 1 Coupler, Shaft Bearing IC2
5 2 1 Unloader, IC2 18 1 Assembly, Pump Body Radial,
IC2
6 1 Shaft, Counterweight 2.5GPM 19 1 Spline, Bearing Coupler
7 1 Assembly, Ring Radial 20 5 2 O-ring, Custom, Head Pump
Body, IC2
8 3 2 O-ring, Journal Body, IC2 21 1 Thermal Relief, IC2
9 3 2 Seal, 16mm, IC2 22 1 Pulse Hose, IC2
10 3 2 Assembly, Journal Body and
Bushing, IC2
23 1 Assembly, Shaft Inner Ring
11 4 2 Assembly, Piston and Cap 24 8 Screw, 5/16 - 18 X 2.125 THD
FRM
12 4 Screw, 5/16 - 18 X 1.5 THD FRM 25 1 Bolt, 7/16 - 14 X 4.00 GRD 8
13 2 Strap, IC2
KIT NUMBERS, DESCRIPTIONS, AND INCLUDED COMPONENTS ARE LISTED BELOW:
KIT #
ORDER
NO.
DESCRIPTION
COMPONENT
REFERENCE #
KIT #
ORDER
NO.
DESCRIPTION
COMPONENT
REFERENCE #
1 E104784 Kit, Valve, In/Out 1,2 4 E104785 Kit, Piston w/Cap 11
2 E104782 Kit, Unloader 4,5 5 E104783 Kit, Valves All 2,20
3 E104786 Kit, Seals w/O-ring 8,9,10
• Note: Any part number eld without a number listed is not available
• Descriptions are provided for reference only.
