If customer use 4 wires telephone cord to make the cable,
probably will cause noise problem during call conversatio n. So
we suggest network twisted -pair wire(for example:.use
white-blue, and two blue wires to co nnect wire 1,4. Use
white-brown, and two brown wires to connect wire 2,3)
3.2 The making method for the RJ45 network cable are split with two 6P4C
RJ11 crystal heads.
One RJ45 port can be connected with two key phones.
We suggest customer make the cable as per following color sequence:
Wires 1-8 of RJ45 corresponding to colour as: white-brown, white-blue, blue,
brown, white-green, white-orange, orange, green)

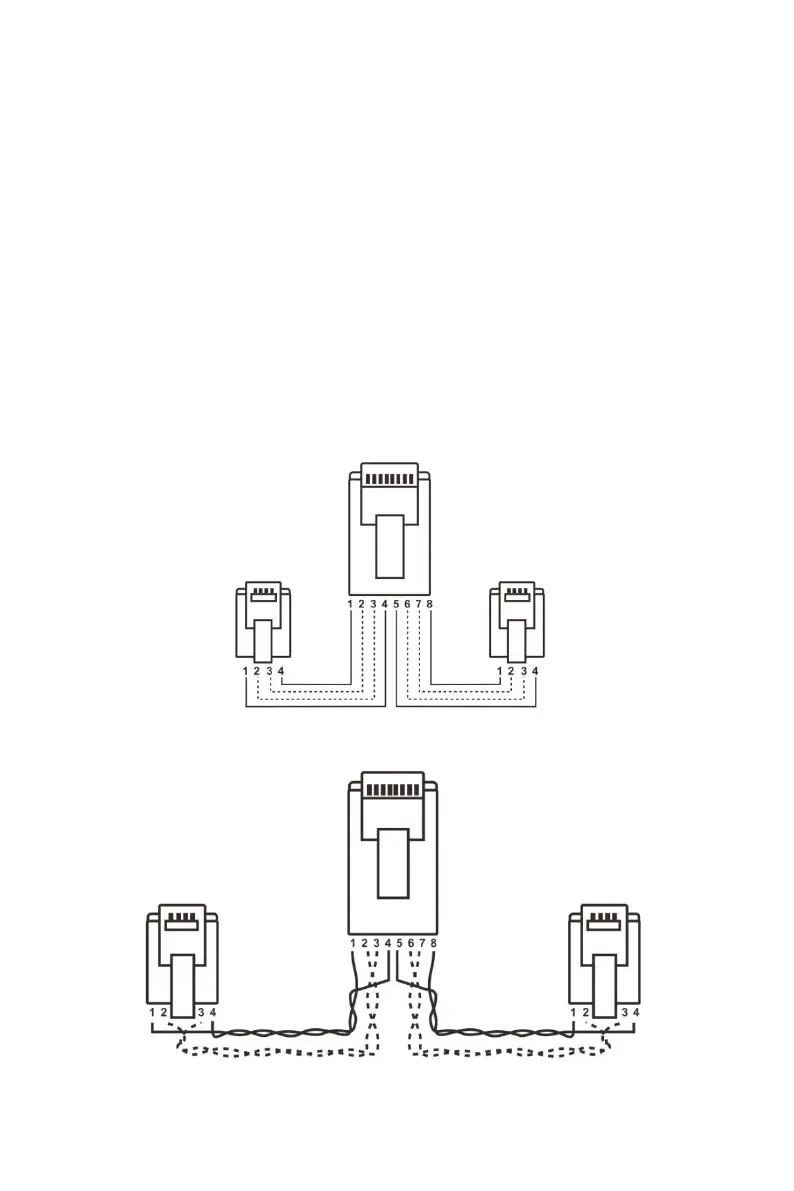

Twisted-pair wire diagram：
