Unboxing and Cleaning
The Excelsior Mini Lathe comes assembled, except for the MT2
Live Center; MT2 Spur Center; quill handwheel handle and socket
screw. Also in the box will be a knockout bar and 3mm, 6mm and
8mm hex keys.
Check to make sure that you have all parts and that the product
is not damaged. If you find damage, contact Rockler Technical
Support at 1-800-260-9663 or support@rockler.com. Keep all
packaging in case the product will need to be returned.
The unpainted surfaces of the lathe, such as the bed, have been
coated with grease to prevent corrosion during shipping. Use
a solvent-based cleaner or degreaser to remove this protective
coating, and then apply Boeshield T-9® Rust and Corrosion
Protection to the surface to prevent rust from developing. Always
follow the manufacturer’s instructions when using any cleaning or
lubricating product.
> Do NOT lift more than you are able. If the Excelsior Mini
Lathe feels too heavy for you to lift on you own, obtain
the help of another adult to lift the unit into position.
Use proper lifting techniques
> Make sure that the bench or table holding the lathe is
strong enough to bear the weight and that it is solid and
rigid. The lathe is heavy, and serious injury could result if
the support were to fail.

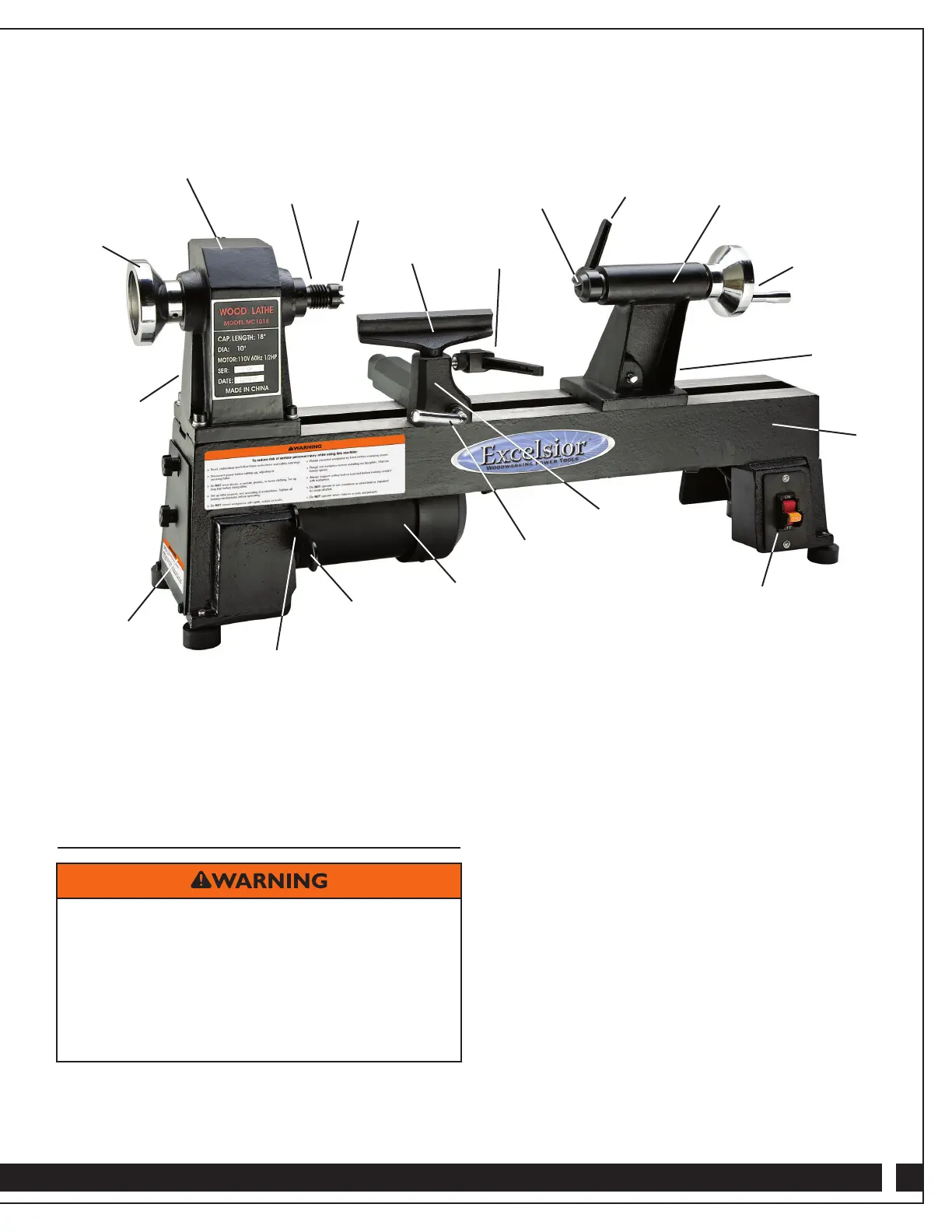

Headstock
Headstock
Spindle
M2 Spur
Center
6" Toolrest
M2 Live
Center
Toolrest
Lock Handle
Quill Lock
Handle
Tailstock
Quill
Handwheel
(with Handle)
Tailstock
Lock Lever
(on back of
Tailstock)
Lathe
Bed
Power Switch and
Safety Pullout Key
Not shown but included in the box:
> 3" Faceplate > Knockout Bar
> 3mm Hex Key > 6mm Hex Key
> 8mm Hex Key > Spindle Washer
Toolrest
Banjo
Banjo Lock
Lever
Motor
Belt Tension
Lever Lock
Handle
Belt Tension
Lever
Side Belt
Access Cover
Rear Belt
Access Cover
(on back of
Headstock)
Headstock
Wheel
To Next Page
