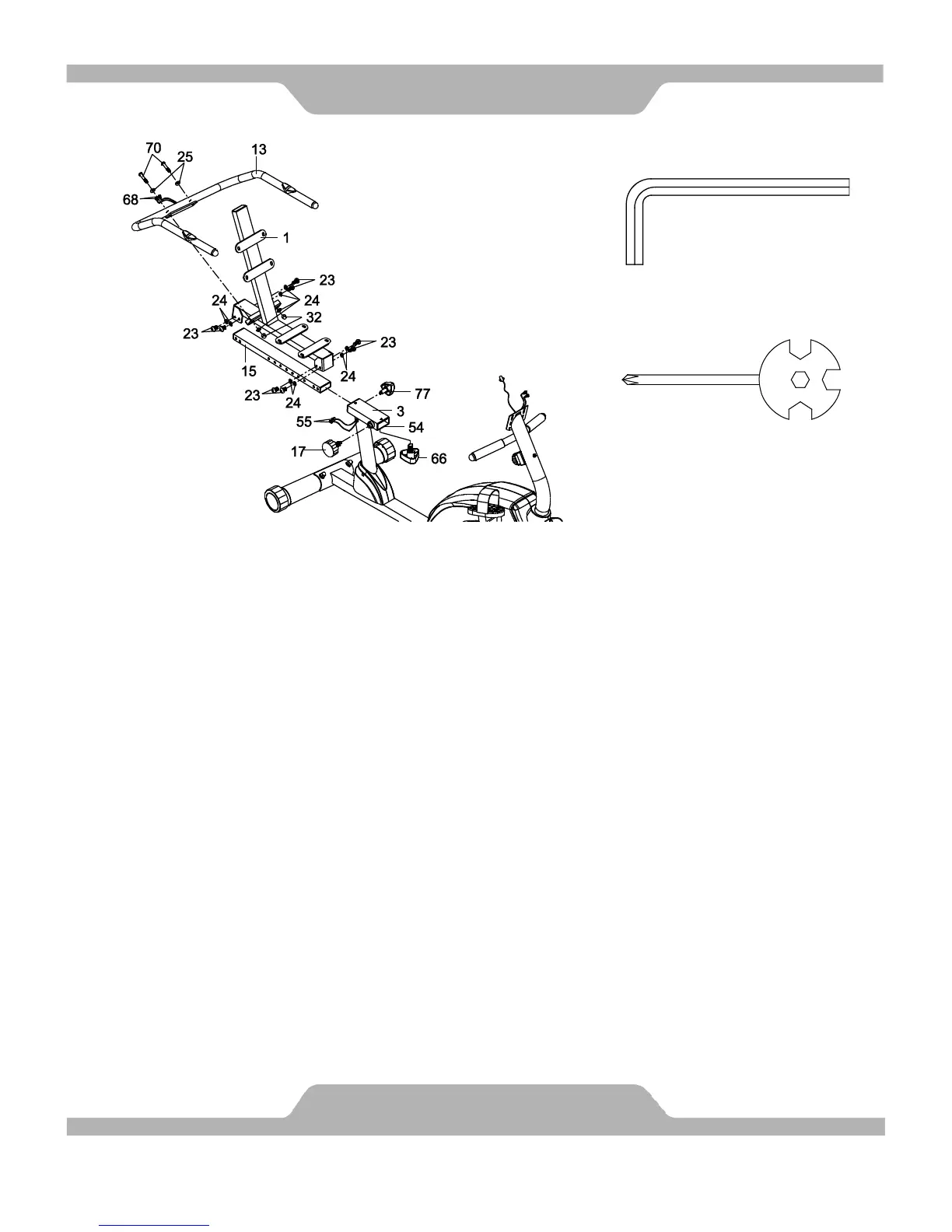

Support Bracket (1) and Seat Sliding Tube (15). Remove bolts with the Allen
Wrench provided.
Insert the Seat Sliding Tube (15) into the Bushings (54) of the Rear Main
Frame (3).
Attach the Seat Sliding Tube (15) to the Back and Seat Support Bracket (1)
with eight M8x15 Bolts (23) and eight Ø8 Washers (24) that were removed.
Tighten bolts with the Allen Wrench provided.
Adjust the seat position and insert the Round Knob (17), M12x33 Triangle
Knob (77), and M12x27 Triangle Knob (66). Turn the Round Knob (17),
M12x33 Triangle Knob (77), and M12x27 Triangle Knob (66) in the clockwise
direction to tighten.
Attach the Handlebar (13) onto the Back and Seat Support Bracket (1) with two
M8x45 Bolts (70), two Ø8 Curve Washers (25), two Ø8 Washers (24), and two
M8 Cap Nuts (32). Tighten bolts with the Multi Hex Tool with Phillips
Screwdriver provided.
Connect the Middle Section Hand Pulse Sensor Wires (55) from the Rear Main
Frame (3) to the Hand Pulse Sensor Wire (68) from the Handlebar (13).
