Exerpeutic 475SL - Installing the Foot Bar

17
ASSEMBLY
Step 8
Installing the Foot Bar:
8A. Install the Foot Bar (4) onto the Adjustable Boom (3) with two Socket Hex Bolts (20), four
Flat Washers (19) and two Nylon Nuts (42). Tighten the hardware with the 6mm Allen wrench
and 10, 13, 17 mm Wrench provided.
Note: The Foot Bar (4) should be installed with the bar closer to the Adjustable Boom (3). See
Fig. F.
Hardware:
(20) Socket Hex Bolt
2PCS
(19) Flat Washer
4PCS
(42) Nylon Nut
2PCS
Tools:
6mm Allen Wrench 1PC
10, 13,17mm Wrench 1PC

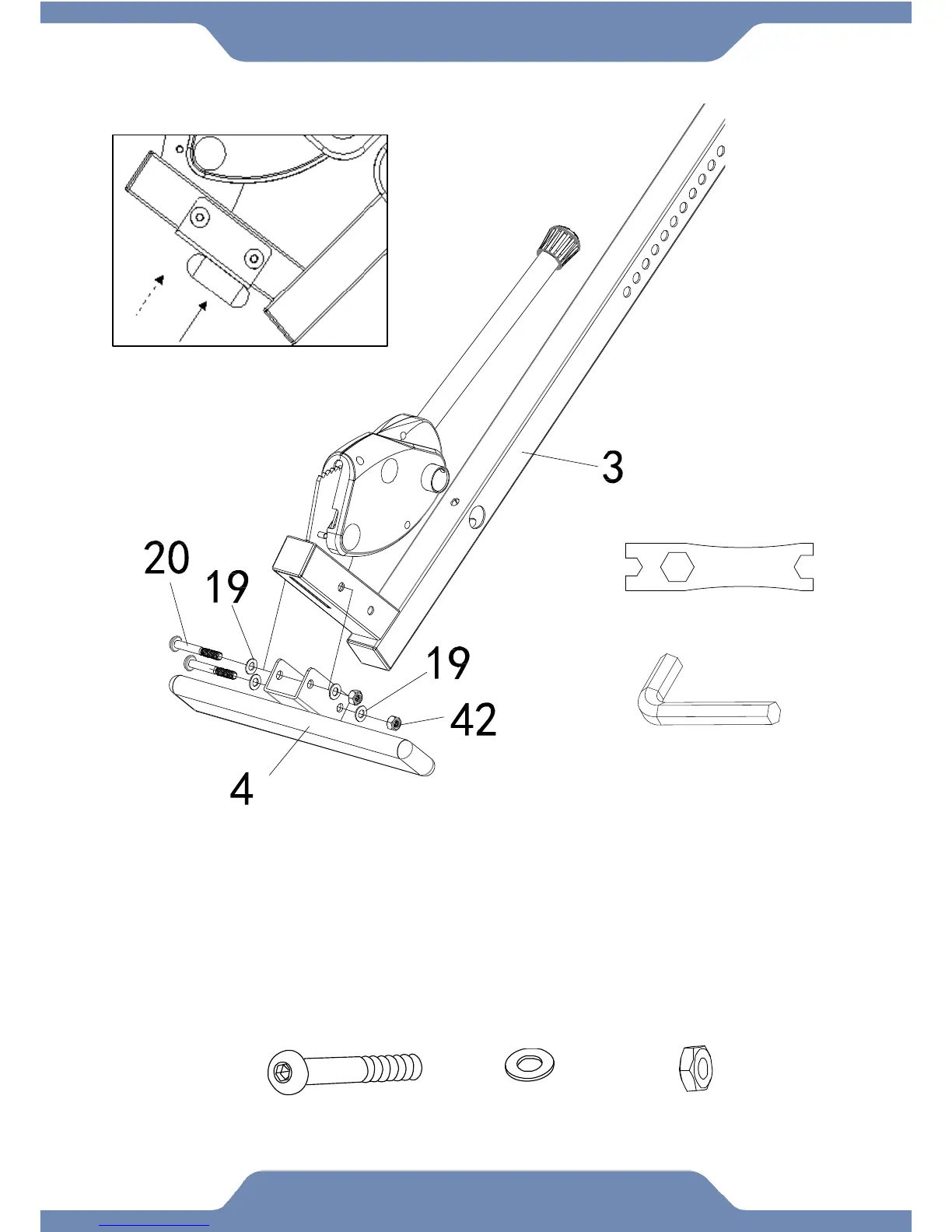

Fig. F
