Exerpeutic 475SL - Installing the Locking Pin

16
ASSEMBLY
Step 7
Installing the Locking Pin:

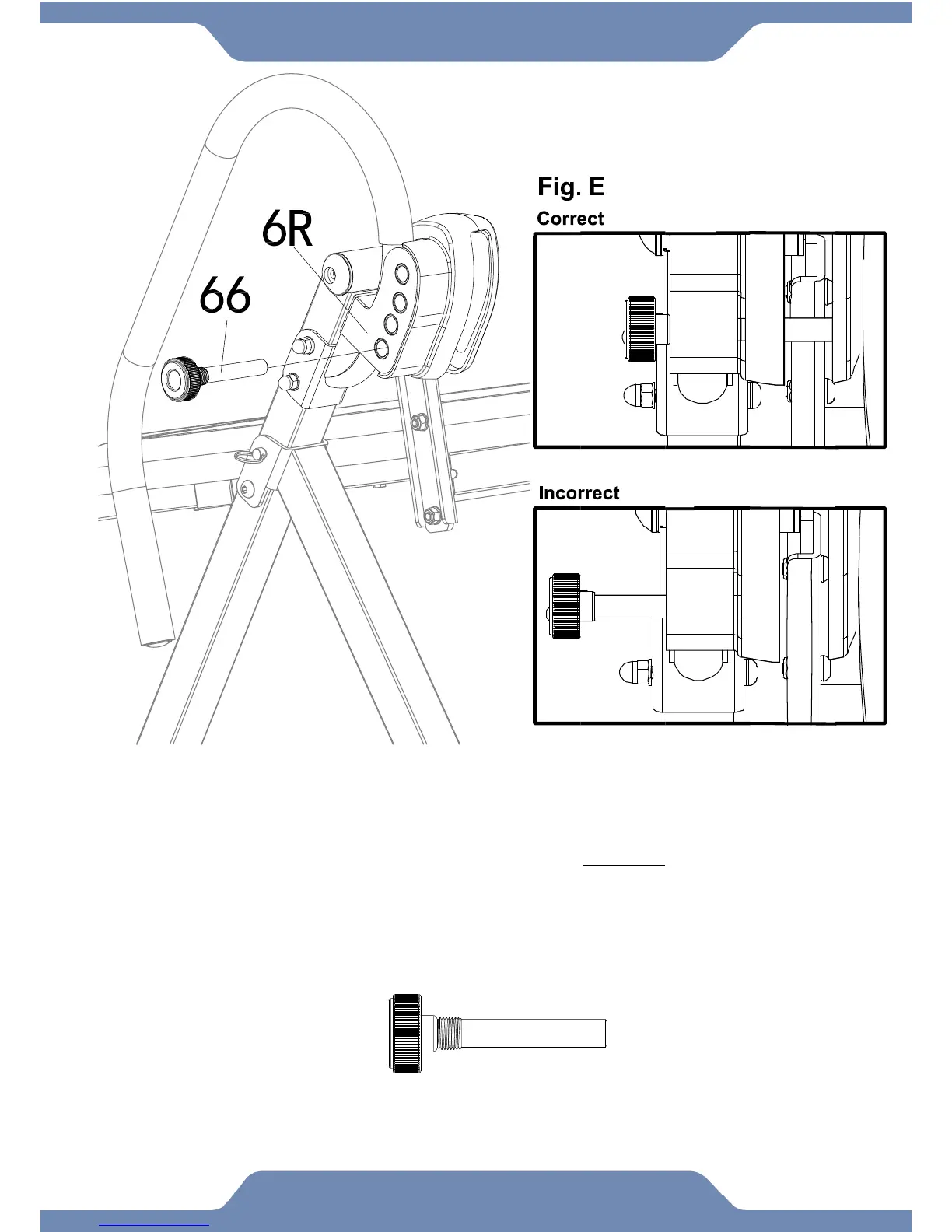

7A. With the backrest in the upright position, insert the Adjustable Knob (66) into one of the holes
on the Right Handlebar (6R). Turn the Adjustable Knob (66) clockwise to tighten it.
WARNING: Make sure the Adjustable Knob (66) is fully inserted into the Right Handlebar (6R)
before using the inversion table. The Adjustable Knob (66) thread should NOT be visible when
installed correctly. See Fig E.
(66) Adjustable Knob 1PC
Hardware:
