Exerpeutic Elliptical - Foot Pedal Assembly

–––-

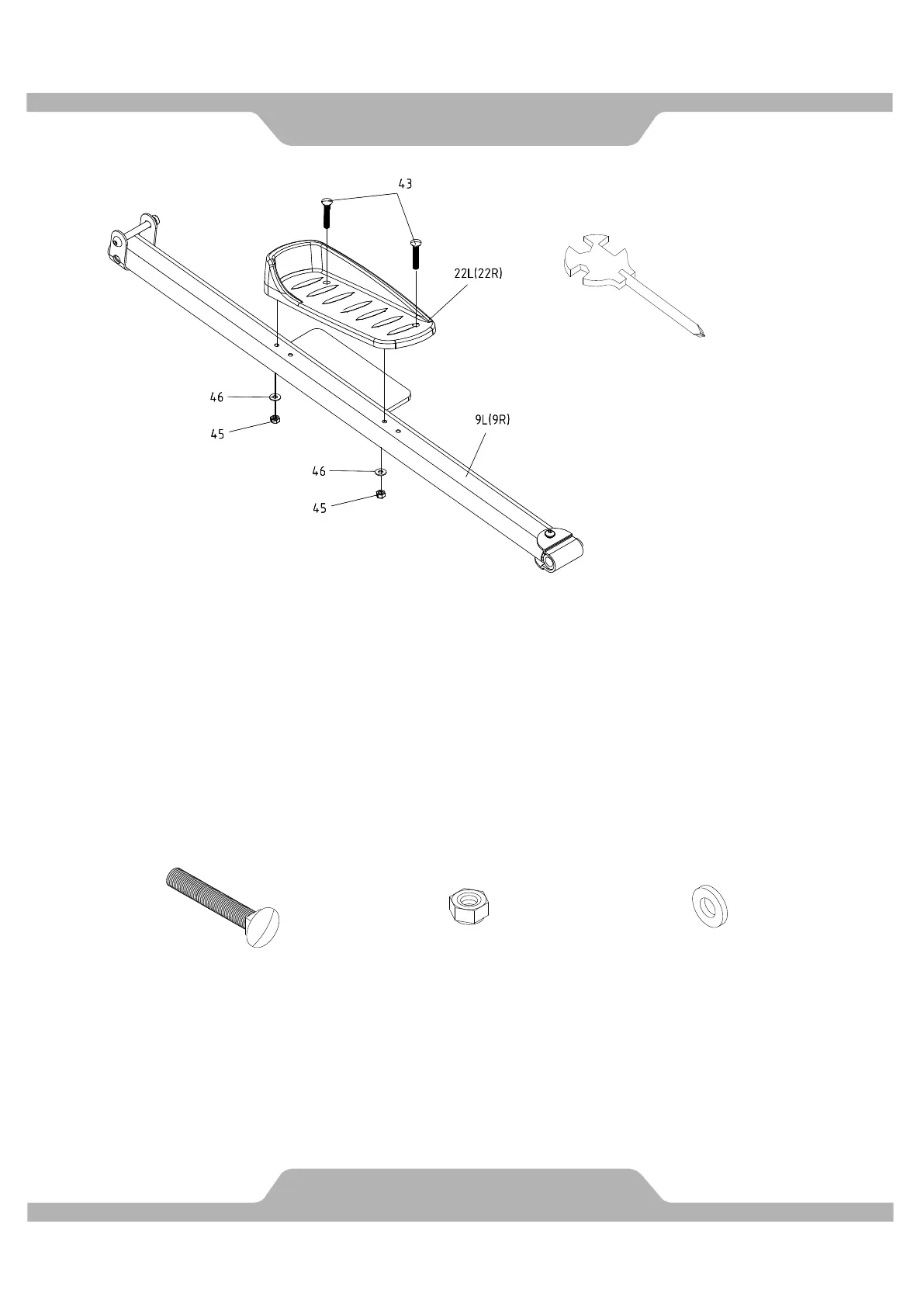

8. Assemble Foot Pedals: “R” for right side and “L” for left side.
A. Place the Left Foot Pedal (22L) on top of the Left Foot Bar (9L), align to the bolt hole
with two Carriage Bolts (43) two Washes (46) and two Nylon Locknuts (45) by using
Multi Hex Tool with Phillips Screwdriver.
B. Repeat the same assembly steps to the Right Foot Bar (9R).
Note: There are four holes on the Left/Right Foot Bars (9L, 9R) for personal foot pedal
adjustment use.
Hardware:
17
(#43) Carriage Bolt
4 PCS
(#45) Nylon Locknut
4 PCS
(#46) Washer
4 PCS
ASSEMBLY
Tool:
Multi Hex Tool with Phillips
Screwdriver
