Exerpeutic Elliptical - Assembly; Front Stabilizer Installation

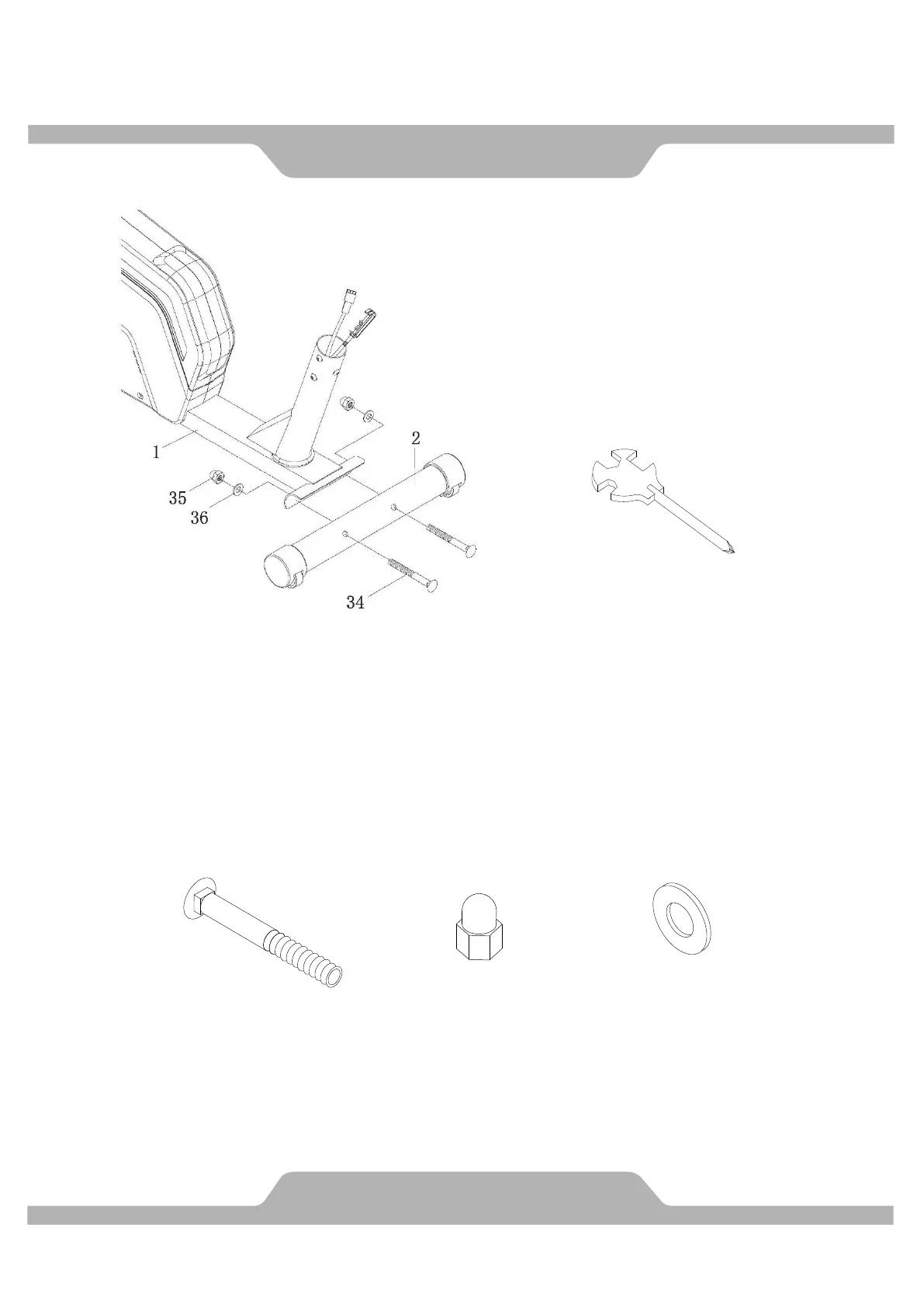

1. Front Stabilizer Installation.
Lift up the main frame (1) towards the front, and then align the Front Stabilizer (2) onto the
front curve of the Main Frame (1). Attach two Carriage Bolts (34) and on the other ends
of bolts with two Washers (36) and two Cap Nuts (35). Hold the Front Stabilizer (2) to the
Main Frame (1) and use the Multi Hex Tool with Phillips Screwdriver to tighten the Cap
Nuts (35) until firm and secure.
Hardware:
ASSEMBLY
10
(#36) Washer
2 PCS
(#34) Carriage Bolt
2 PCS
(#35) Cap Nut M8
2 PCS
Tool:
Multi Hex Tool with Phillips
Screwdriver
