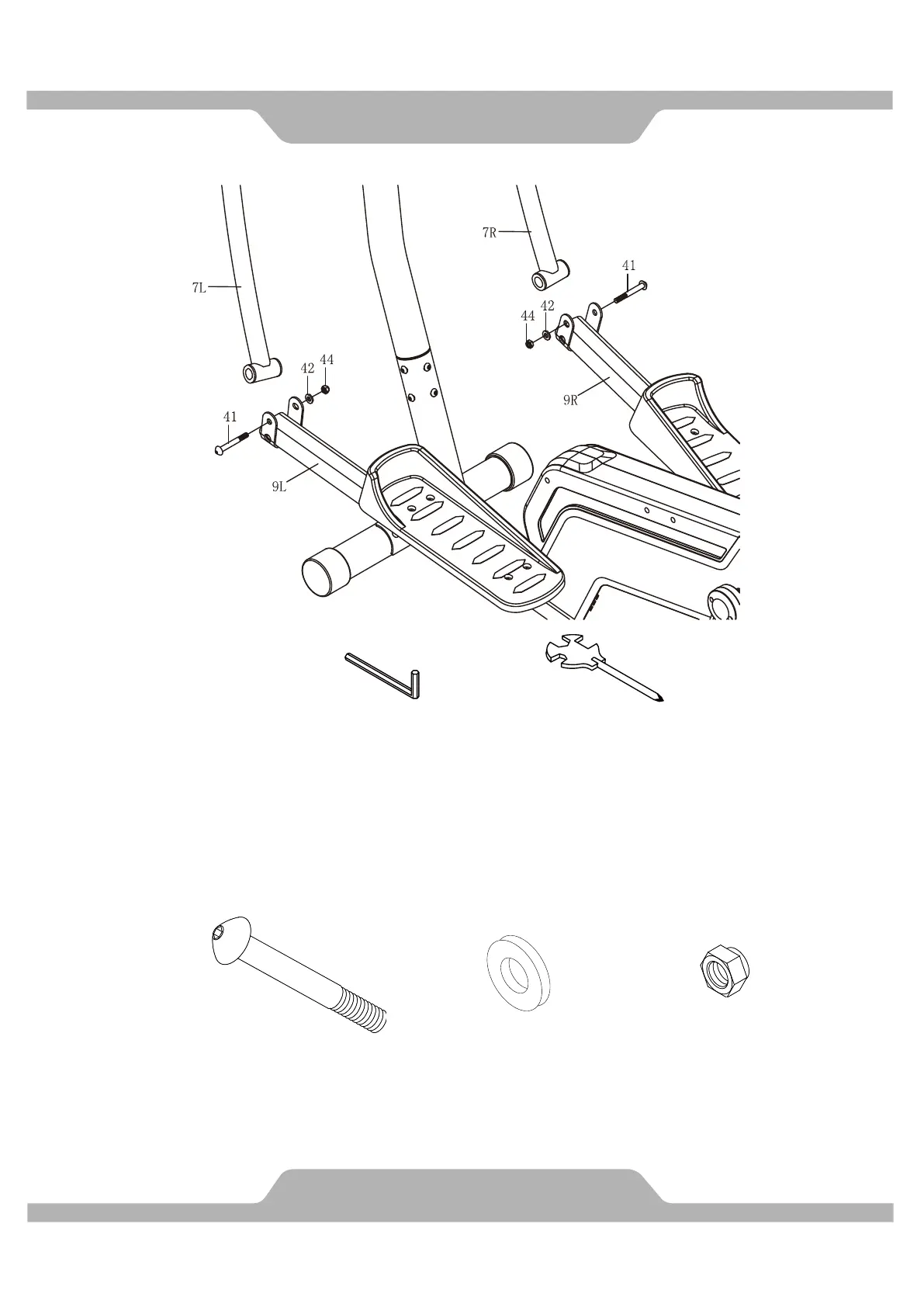

10. Assemble Handrail Arms: “R” is for right side and “L” is for left side.
A. Place the Left Handrail Arm (7L) into the U shape from Left Foot Bar (9L). Align the
hole then tighten with one Hexagon Socket Head Bolt (41), one Washer (42) and one
Nylon Locknut (44) by using the Allen Wrench and Multi Hex Tool with Phillips
Screwdriver until firm and secure.
B. Repeat the same assemble steps on the above for the Right Handrail Arm (7R).
Hardware:
Head Bolt
(#44) Nylon Locknut
2 PCS
To Next Page
