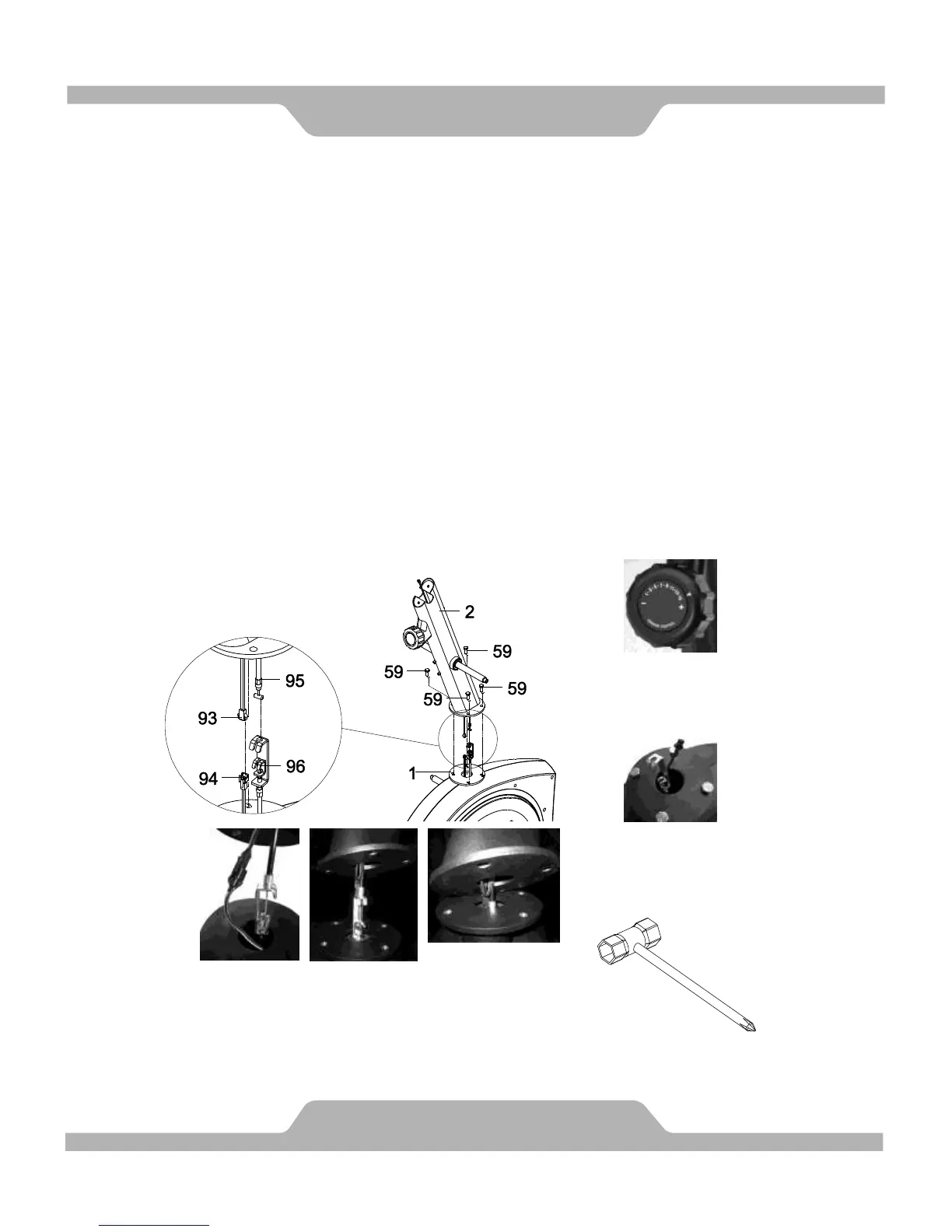

4. Front Post and Tension Control Knob Installation
Remove four M8x20mm Bolts (59) from the Main Frame (1). Remove bolts
with the Hex Tool with Phillips Screwdriver provided.
Pull out the Tension Cable (96) and Sensor Wire II (94) from the Main Frame
(1).
Put the cable end of resistance cable of Tension Control Knob (95) into the
spring hook of Tension Cable (96) and then pull the resistance cable of
Tension Control Knob (95) up and force it into the gap of metal bracket of
Tension Cable (96).
Connect the Sensor Wire II (94) from the Main Frame (1) to the Sensor
Wire I (93) from the Front Post (2) and carefully tuck the wires into the Main
Frame (1) before attaching the Front Post (2) onto the Main Frame (1).
Attach the Front Post (2) onto the Main Frame (1) with four M8x20mm Bolts
(59) that were removed.
NOTE: PLEASE DO NOT FULLY TIGHTEN M8x20MM BOLTS (59) WITH
THE HEX TOOL WITH PHILLIPS SCREWDRIVER PROVIDED, ONLY
HAND TIGHTEN.
ASSEMBLY
13
Hex Tool with Phillips
Screwdriver (13mm)
Tool:
Pull out the Tension
Cable (96) connector
and Sensor Wire II (94).
Set the Tension Control
Knob (95) to the highest
level & connect the
Tension Cable (96).
Carefully tuck the wires into
the Main Frame (1) before
attaching the Front Post (2)
onto the Main Frame (1).
