Step 2
Hardware Removal

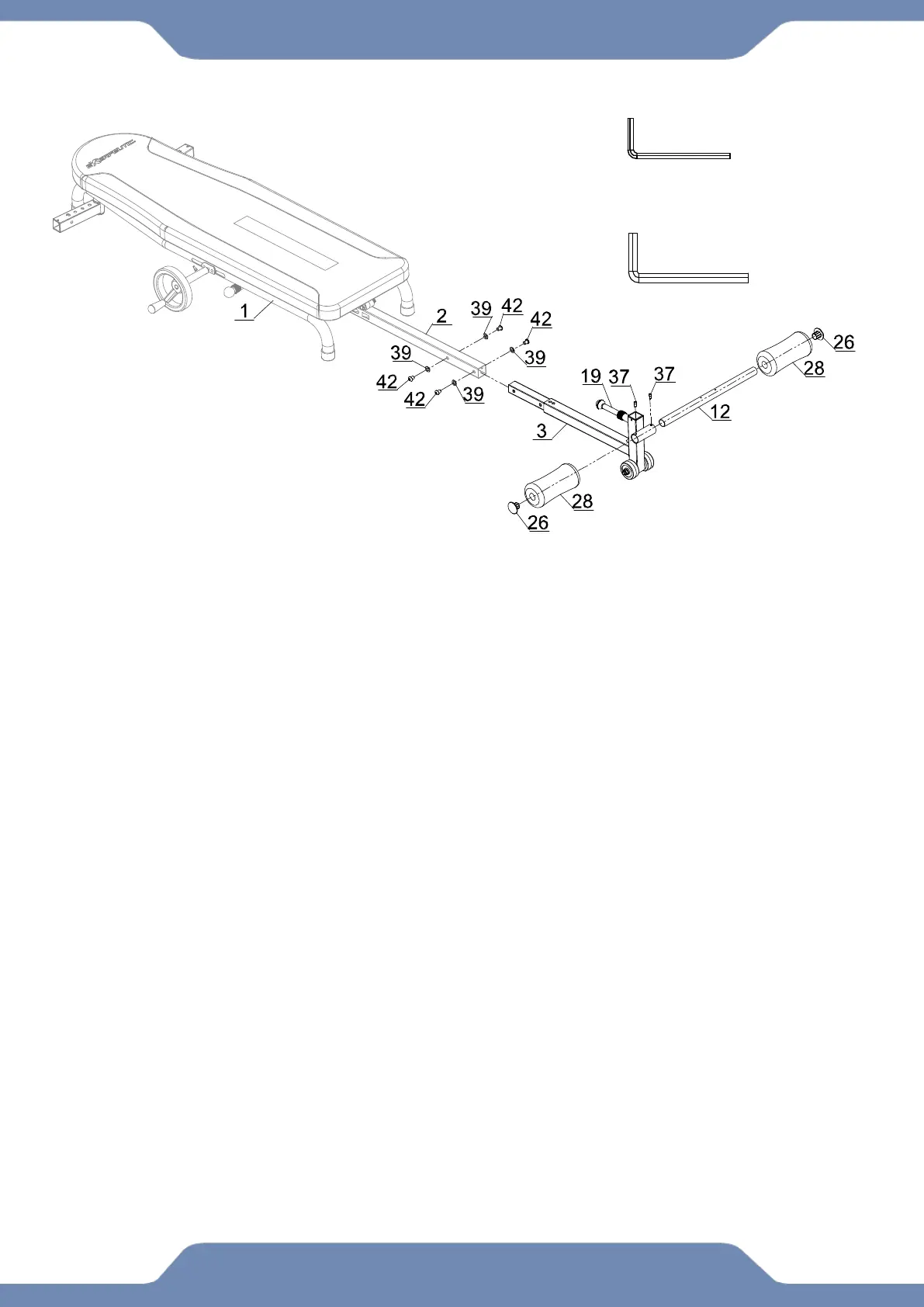

2A. Remove four Hex Bolts (42) and four Flat Washers (39) from the Adjustable Boom (2)
by using 6mm Allen Wrench provided.
2B. Remove two Hex Bolts (37) from the Heel Holder Tube (12) by using 3mm Allen
Wrench provided.
Installing the Heel Holder & Foot Foam Rollers
2C. Insert the Heel Holder Boom (3) onto the Adjustable Boom (2), and tighten with four Hex
Bolts (42) and four Flat Washers (39) by using 6mm Allen Wrench provided.
2D. Insert the Heel Holder Tube (12) onto the hole on the rear of the Heel Holder Boom (3).
Align the hole and tighten with two Hex Bolts (37) by using 3mm Allen Wrench provided. Insert
two Foot Foam Rollers (28) and two End Caps (26) onto the Heel Holder Tube (12).
