Step 3
Hardware Removal
3A. Remove one Hex Bolts (48) and one Flat Washer (39) from the Transportation Handle
(7).
Installing the Adjustable Heel Holder

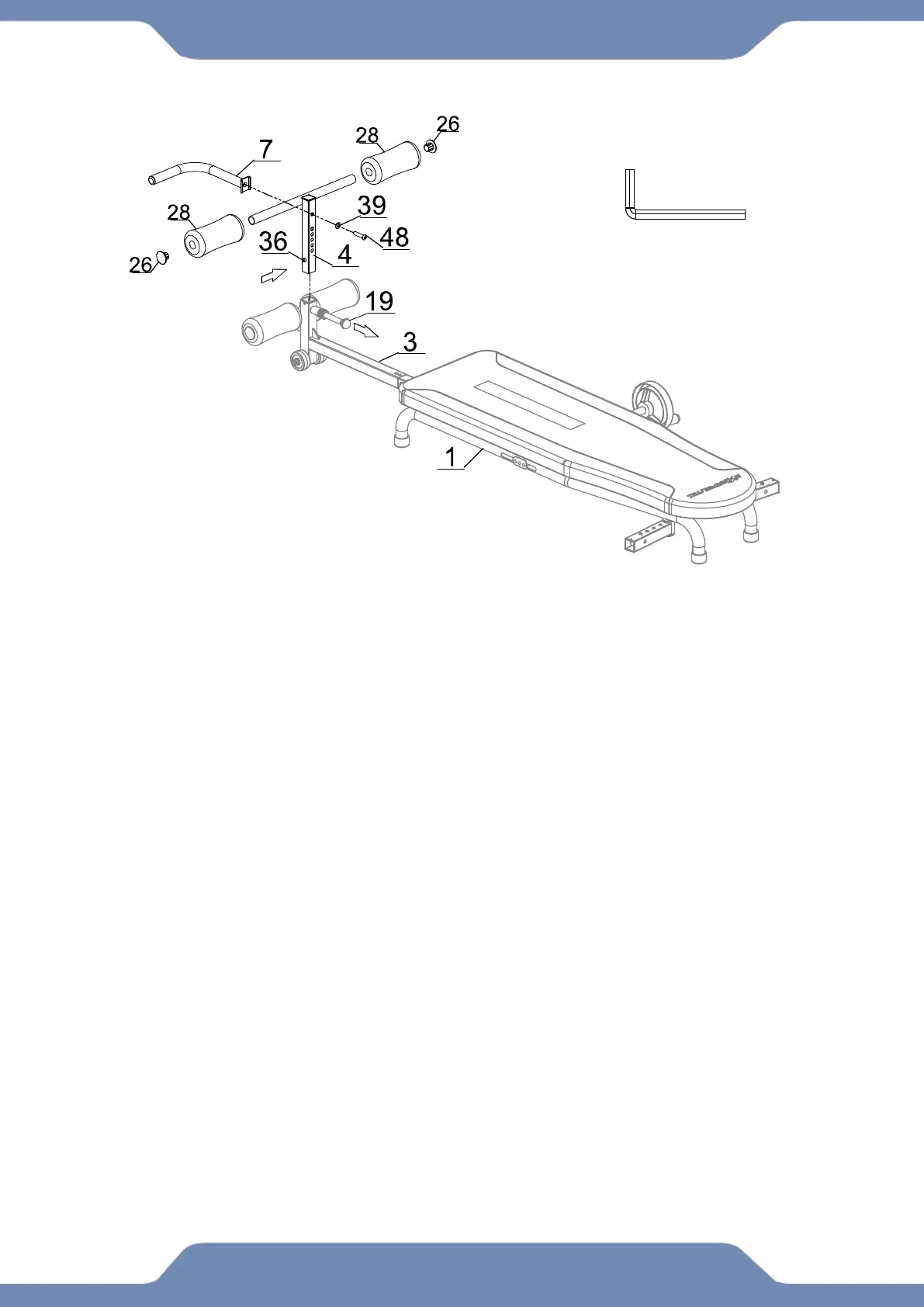

3B. Depress the Snap Button (36), pull up the Pop Pin (19) and insert the Adjustable
Heel Holder (4) onto Heel Holder Boom (3). Attach the Transportation Handle (7) onto
the Adjustable Heel Holder (4) and tighten with one Hex Bolts (48) and one Flat
Washers (39) by using 6mm Allen Wrench provided.
Installing the Foam Roller
3C. Insert two Foam Rollers (28) onto the Adjustable Heel Holder (4) and attached two
End Caps (26) on to the both end of the Adjustable Heel Holder (4).
