ASSEMBLY

Step 4

Installing the Adjustable Arm

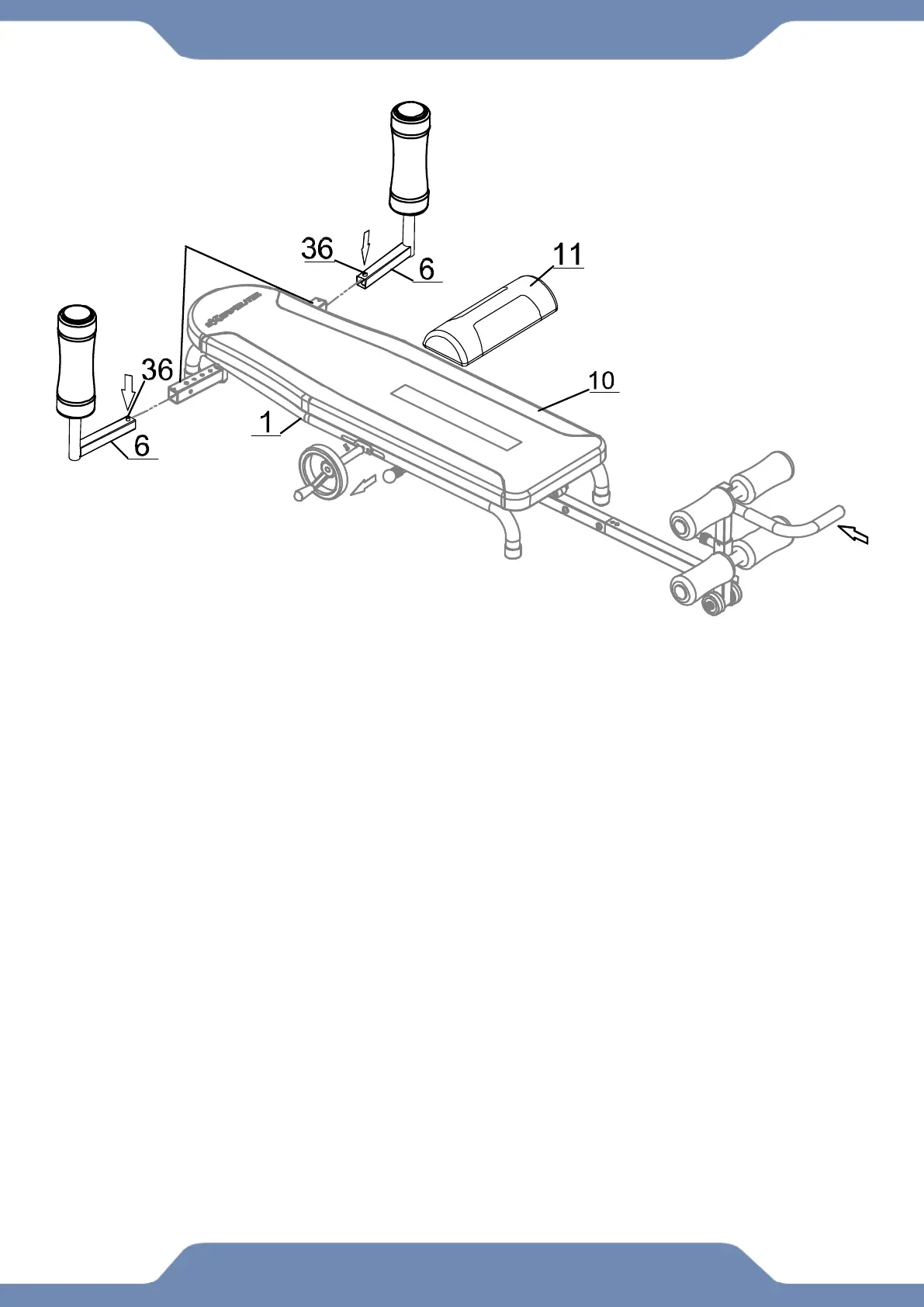

4A. Install the Adjustable Arm (6) on to the Main Frame (1). Depress Snap Button (36)

and insert the Adjustable Arm (6) into the Swing Arm (5) Adjust the Adjustable Arm (6) to

the suitable position.

4B. Attach the Lumbar pad (11) on the Velcro strip on the Backrest (10). You can adjust the

position of vertically or horizontally along the Velcro strip.

Exerpeutic Traction Table - Page 13
