Plus 12 Operator's Manual (164200090 Rev E) " 3

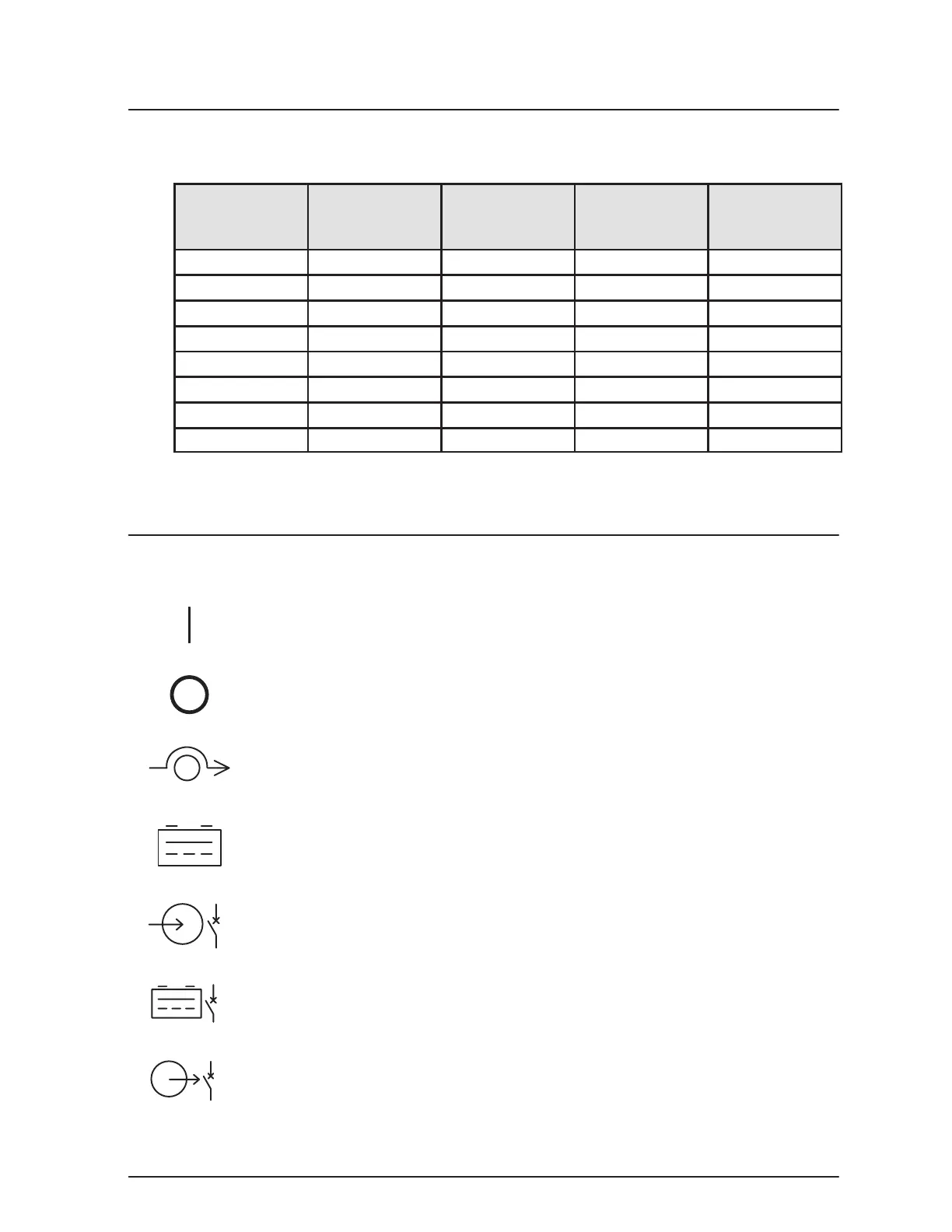

Estimated Battery Run Times
The estimated accuracy of the battery support times is 10%. Battery times (in
minutes) are shown according to the output watts and UPS configuration.
"
!
[[
[
!
[[
[[
1000 100 209 264 318
2000 50 109 138 168
3000 32 72 92 112
4000 22 52 68 83
5000 16 40 52 65
6000 12 32 42 52
7000 9 26 35 44
8000 7 22 30 37
[
EBC1 is oneĆhalf full battery cabinet.
[[
EBC2 is one full battery cabinet.
Special Symbols
These common symbols may be found on your UPS:
indicates the on position of a switch.
indicates the off position of a switch.
" indicates bypass control switches.
" indicates that the power provided to the load is coming
from batteries.
indicates an input circuit breaker.
indicates a DC circuit breaker.
indicates an output breaker.
