Powerware
®
Plus 12 Operator's Manual (164200090 Rev E) 36
. Using the 5/16I bolts you took out when unloading each cabinet, bolt each
cabinet to the mounting plate as shown in Figure 7.
Service Plate
Mounting Screws

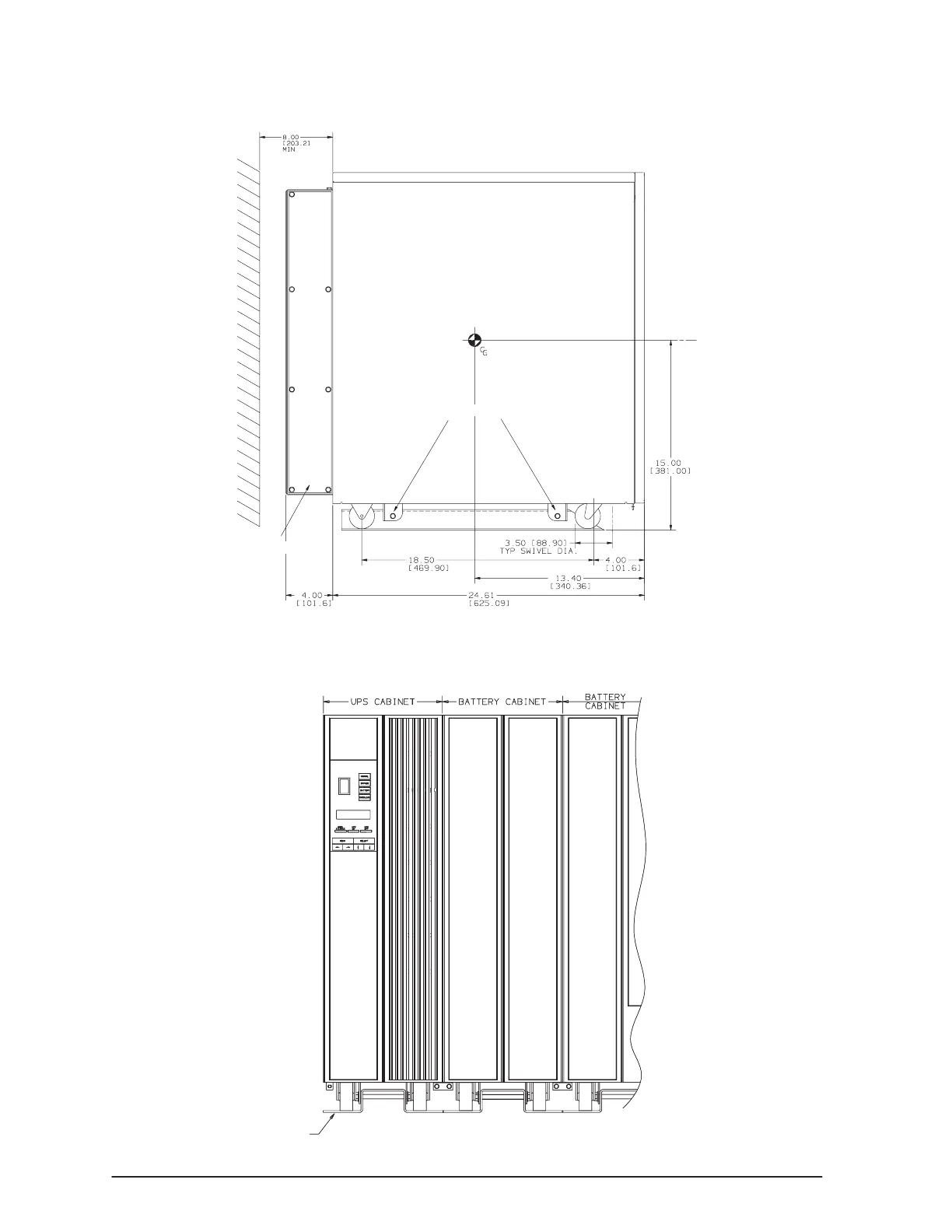

Figure 7. Securing the UPS Cabinet and Mounting Plate
. Position the cabinets into the approximate final operating position with the
battery cabinets to the right of the UPS cabinet as shown in Figure 8.
Cabinet Mounting Plate
Figure 8. Front View of the Plus 12 UPS
