Powerware
®
Plus 12 Operator's Manual (164200090 Rev E) 39
I/O Module
Inverter Module
Rectifier Module
See Figure 14

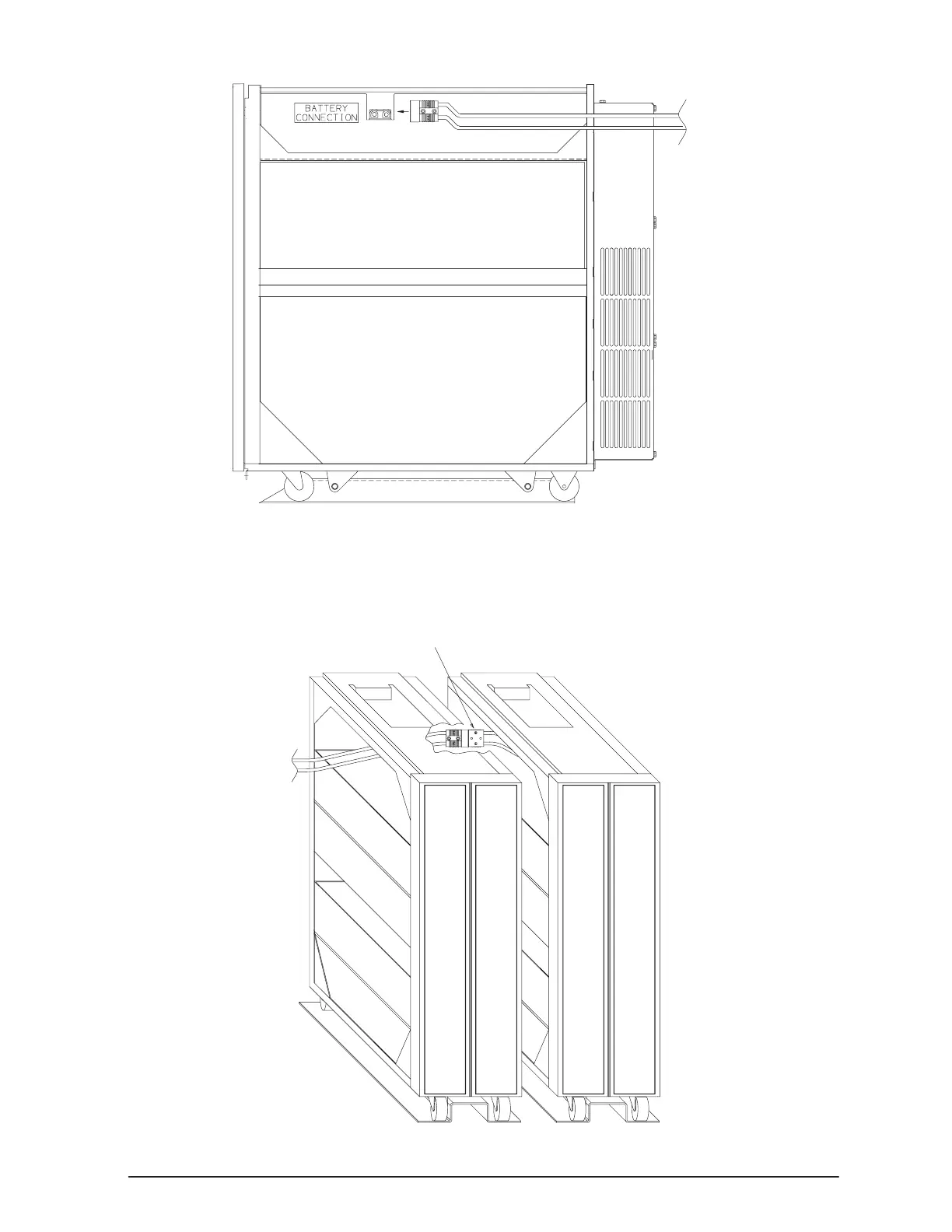

Figure 13. Connecting the UPS and Battery Cables (Right Side View)
. To connect a second battery cabinet, select either one of the two interconnect
cables located in the second battery cabinet. Cut and remove the retaining
straps. Connect to mating connector in the first battery cabinet.
1st Battery Cabinet 2nd Battery Cabinet
Step 16
See Figure 13
Figure 14. Connecting a Second Battery Cabinet
To Next Page
