TRITEX™ PRODUCT OVERVIEW
The Exlar Tritex Series of electric actuators combines an integrated
brushless servo motor, amplifier and motion controller. Optionally the
system can be configured for remote mounting of the amplifier and
motion control

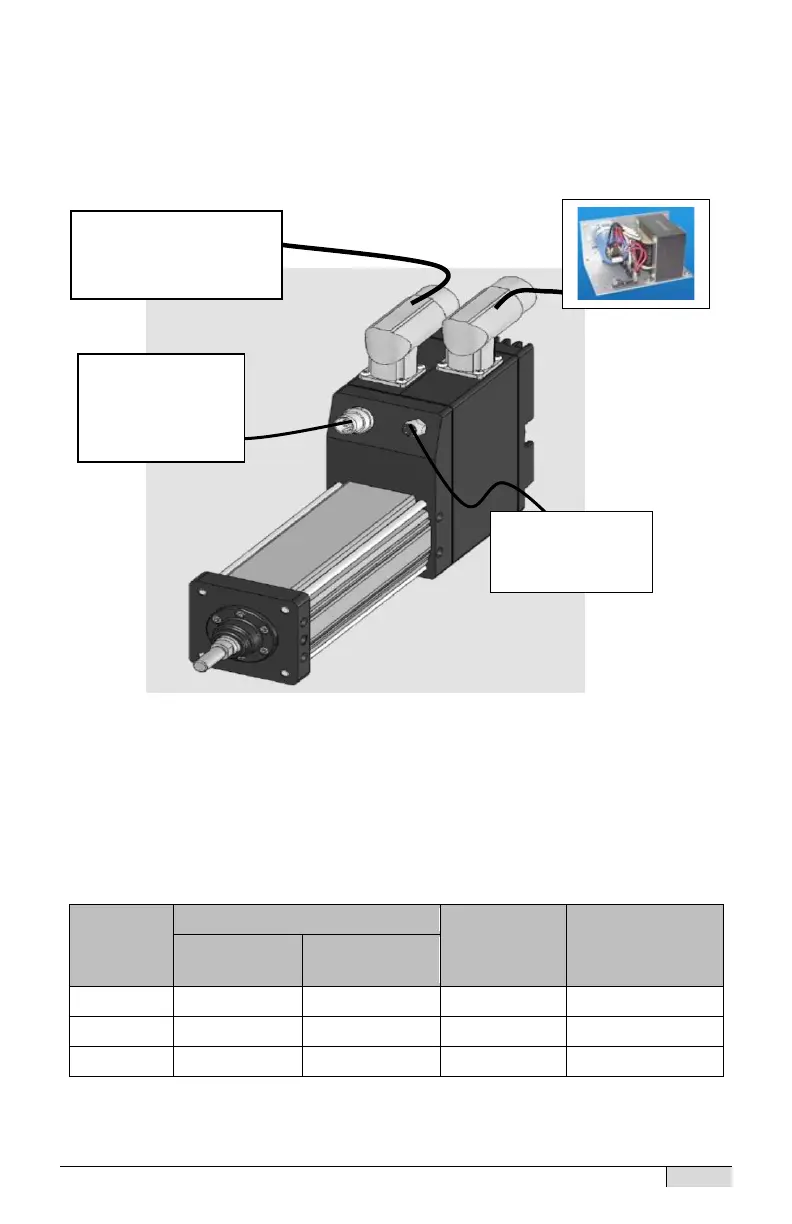

Integrated actuator, servo motor, amplifier and motion control
*Note: 48V (Nominal) for full speed (except CSA certified installations).
24V and 12V (Nominal) will result in reduced speeds.
The Tritex actuators are available in linear and rotary versions with
integrated amplifier and motion control.
Frame
Size
Linear
Rotary
Motor
Rotary
Gearmotor
Std.
Capacity
High
Capacity
60 mm
TDM060
TDX060
RDM060
RDG060
75 mm
TDM075
TDX075
RDM075
RDG075
90 mm
NA
NA
RDM090
RDG090
All of the required power components and motion processor are
contained in the actuator housing.
12–48V* DC
Power Supply
I/O
Digital and Analog I/O
Connections
RS485
Communication
Port
Ethernet
Communication
Port
(Optional)
