Curtiss-Wright | Tritex II DC Rev. J PN49220 2/8/2016

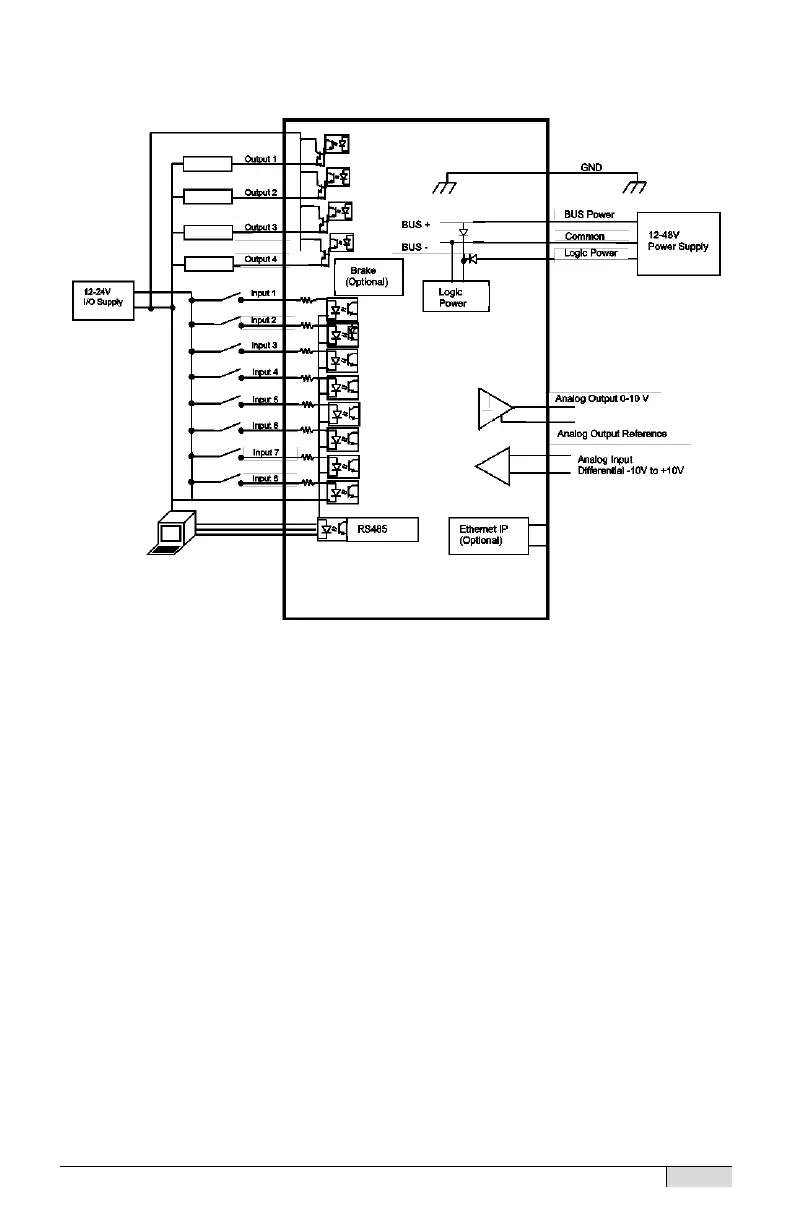

System Overview, Shown with SIO / Ethernet Option Board
Tritex Configurations
The models TDM, TDX, RDM & RDG include the drive and motion
controller integrated into the rear of the actuator. Various power and I/O
connections are available. 60 mm frame sizes have top exiting 90 degree
M23 connectors (shown below), or embedded leads connection options.
75mm and 90mm frame sizes have rear exiting connectors and a top
access cover for field wiring. Connector option include straight M23
connectors (shown below), NPT or M20 threaded holes or embedded
leads. Customized connection options are also available. See ordering
section for model mask information.
