Disassembly / Reassembly

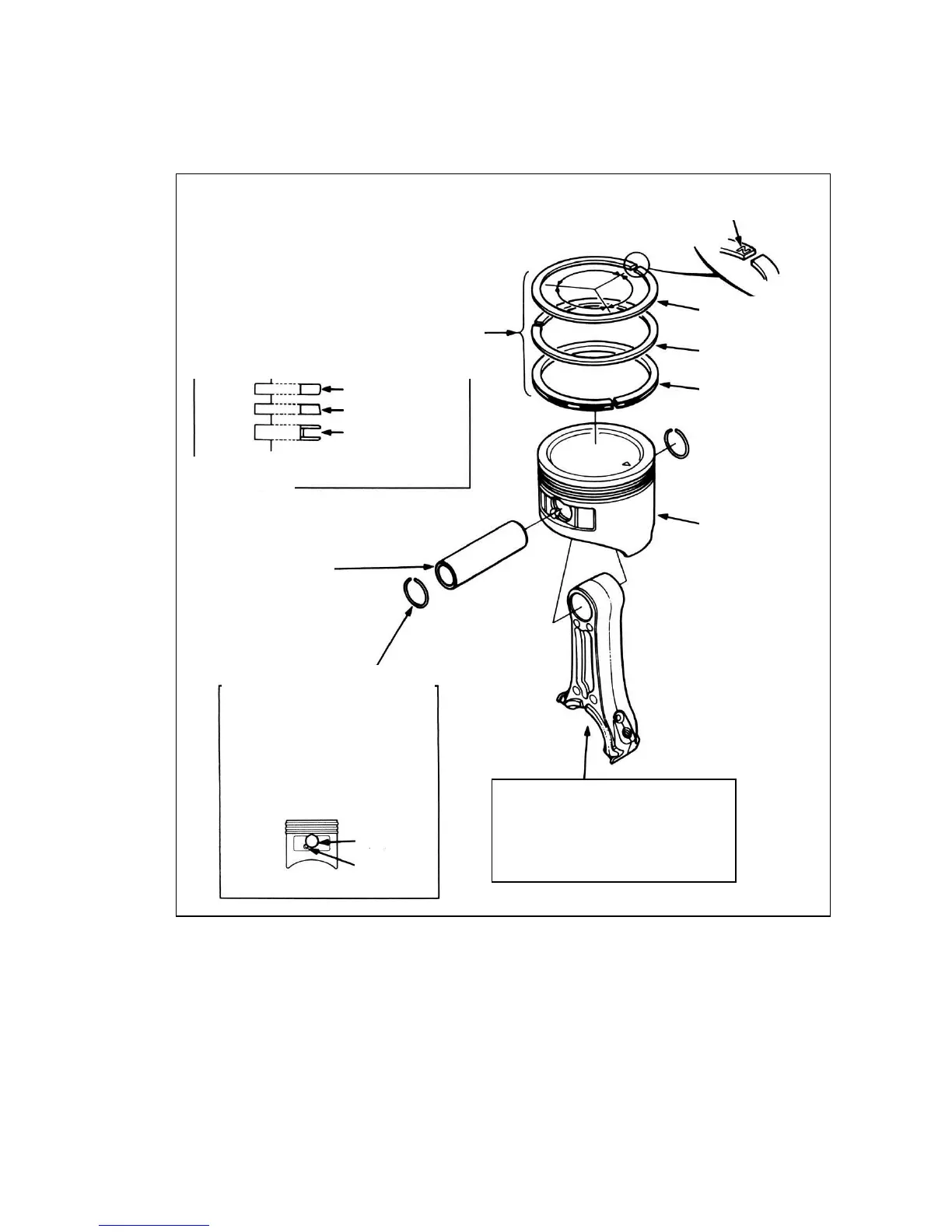

Piston connecting rod
Assembly:
. Put the piston ring sign facing up when assembling.
. Don’t wrongly assemble the top ring and the second
ring.
. After assembling, be sure the piston can freely
move.
. Stagger the open of the piston to piston pin hole
with 120 degree.
Top ring
The second ring
Oil ring
Piston
Top ring
The second ring
Oil ring
Piston ring clip
Assembly: Put the one end into the
piston slot, clamp other end by
sharp nose pliers and revolve into
slot. Don’t let the open of clip
aiming at the piston pin slot..
Connecting rod
Assembly: Put the long end of the
connecting rod aiming at the triangular
mark when assembling.
